2 Troubleshooting Procedures 2.4 System Board Troubleshooting
2-18 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
Procedure 2 Debug Port Check
Check the D port status by a debug port test. The tool for debug port test is
shown below.

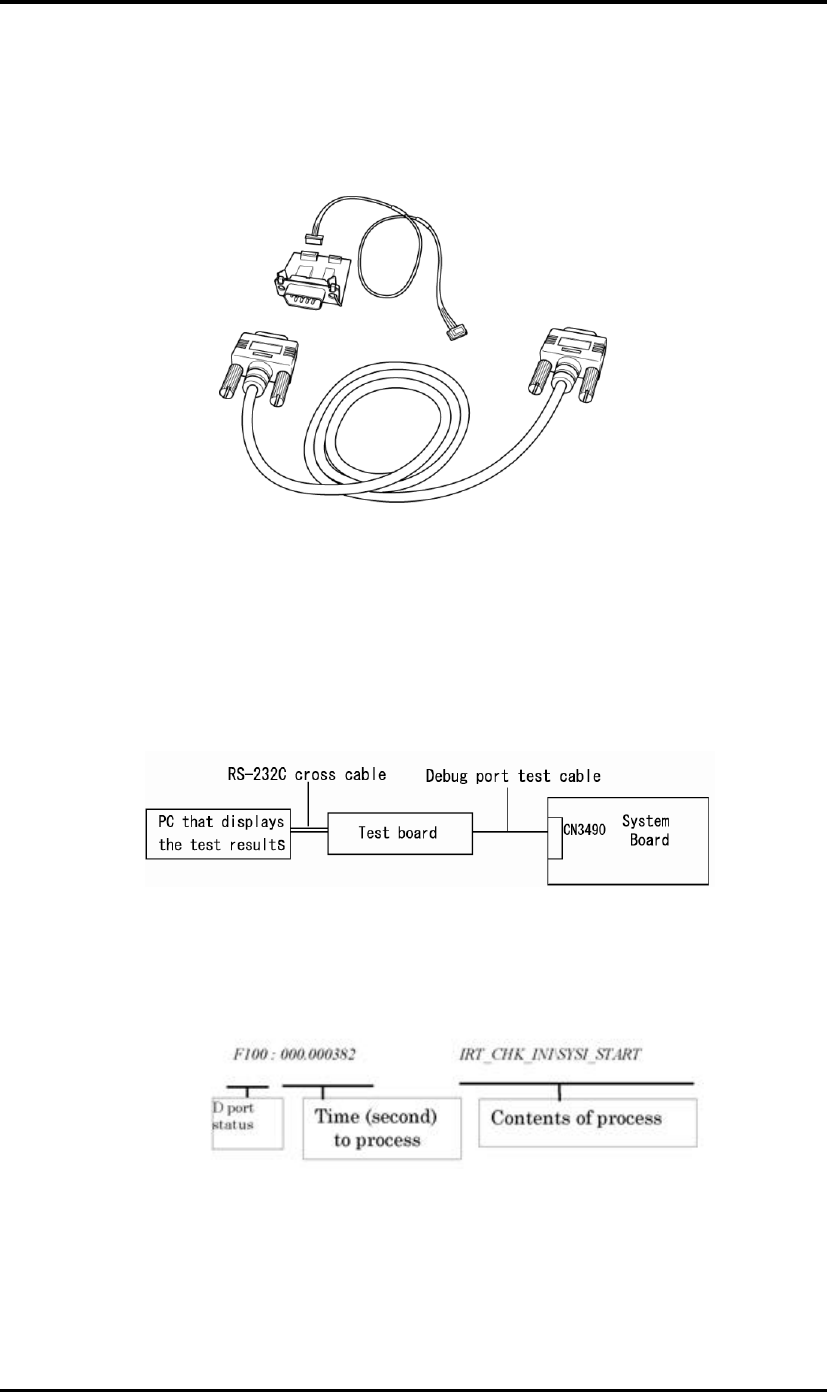

Figure 2-2 A set of tool for debug port test
The test procedures are follows;
1. Connect the debug test cable to the connector CN3490 of the system board. For
disassembling to connect the test cable, refer to Chapter 4.
2. Connect the debug port test cable and RS-232C cross cable to the test board.
3. Connect the RS-232C cross cable to the PC that displays the results.
4. Boot the computer in MS-DOS mode.
5. Execute GETDPORT.COM in the text menu in CPU REAL mode. (Insert the FD
for starting D port into FDD and input “FD starting drive:>dport”.)
The D port status is displayed in the following form;
6. When the D port status is FFFFh (normal status), go to Procedure 3
7. When the D port status falls into any status in Table 2-3, execute Check 1.
