4 Replacement Procedures 4.14 Fan
4-46 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
4.14 Fan
Removing the Fan
The following describes the procedure for removing the fan (See Figure 4-31).
1. Disconnect the fan cable from the connector CN8770 on the system board.
2. Remove the following screws and remove the fan by raising it up.
? M2.5x4B THIN BIND screw x2

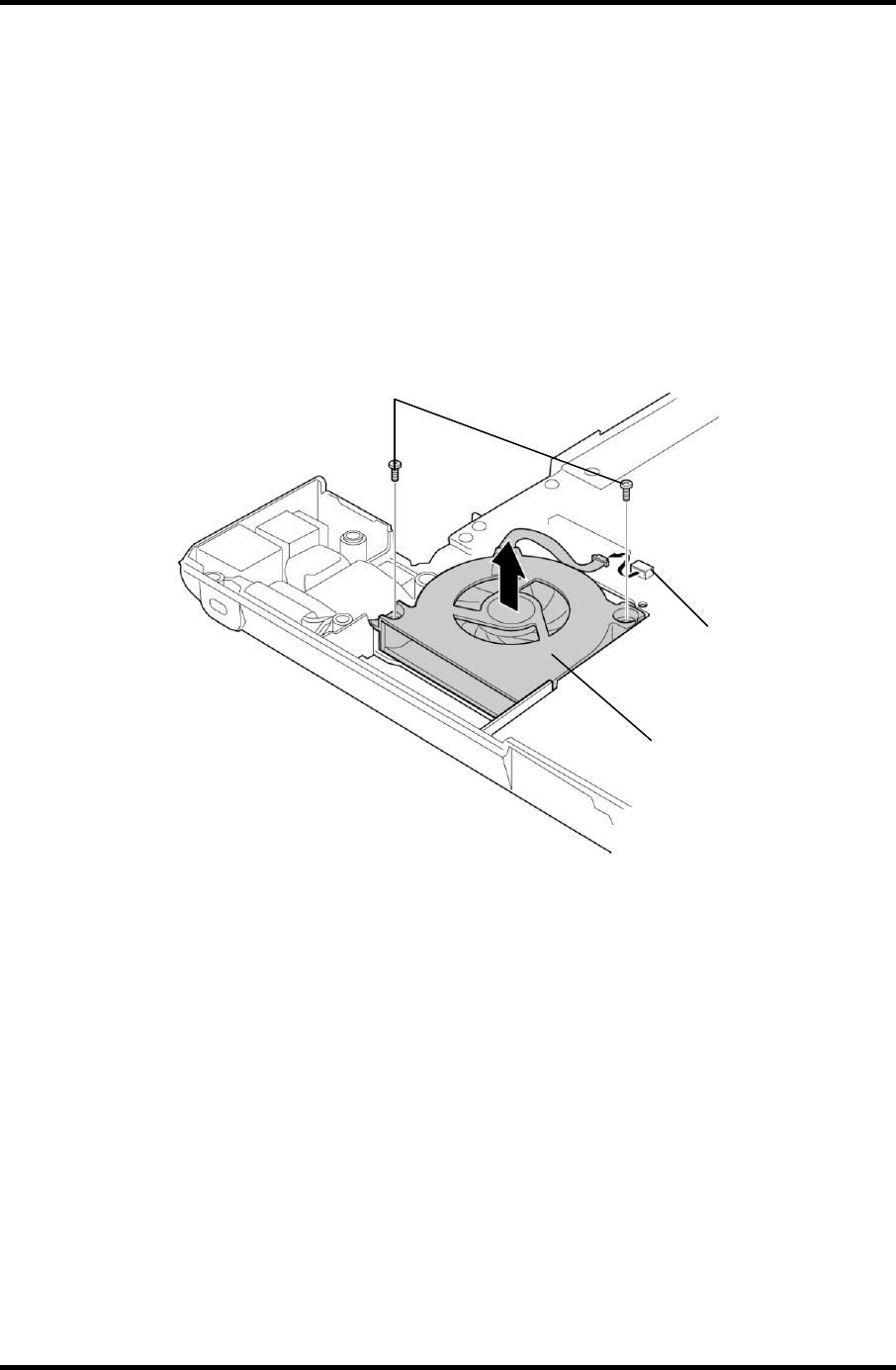

Figure 4-31 Removing Fan
Installing the Fan
The following describes the procedure for installing the fan (See Figure 4-31).
1. Connect the fan cable to the connector CN8770 on the system board.
2. Install the fan on the base assembly and secure it with the following screws.
? M2.5x4B THIN BIND screw x2
Fan
M2.5x4B
THIN BIND
CN8770
