Appendix. G BIOS/KBC/EC Update Appendices
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] G-1
Appendix. G BIOS Rewrite Procedures
Appendix G BIOS/KBC/EC Update
To update the BIOS, KBC or EC, insert the FD for update into the FDD. Then turn on the
power of the computer while pressing the following key until the power LED blinks.

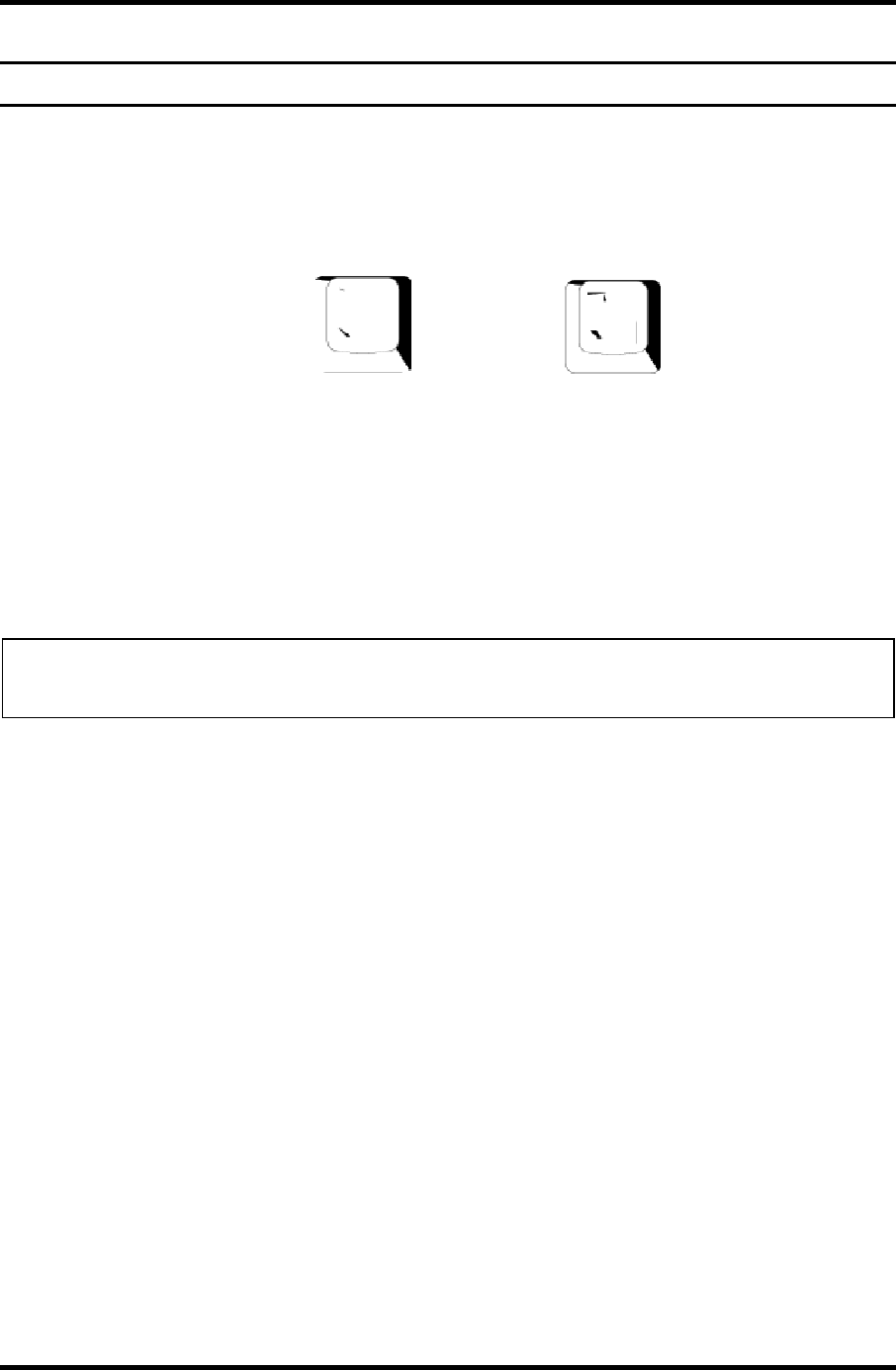

For BIOS update: ~ (tilde key ; See the following pictures.)
(US) (UK)
For KBC or EC update: Tab
When the update is completed, the message will appear and the beep will sound. Then the
power of the computer is turned off.
Make sure of the update using the T&D.
NOTE: Do not turn off the power of the computer during update. Otherwise the
computer may not start again.
