4.23 Fluorescent Lamp Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-99
2. Remove the top case. Be careful not to apply excessive force to the source TCP and gate
COF.

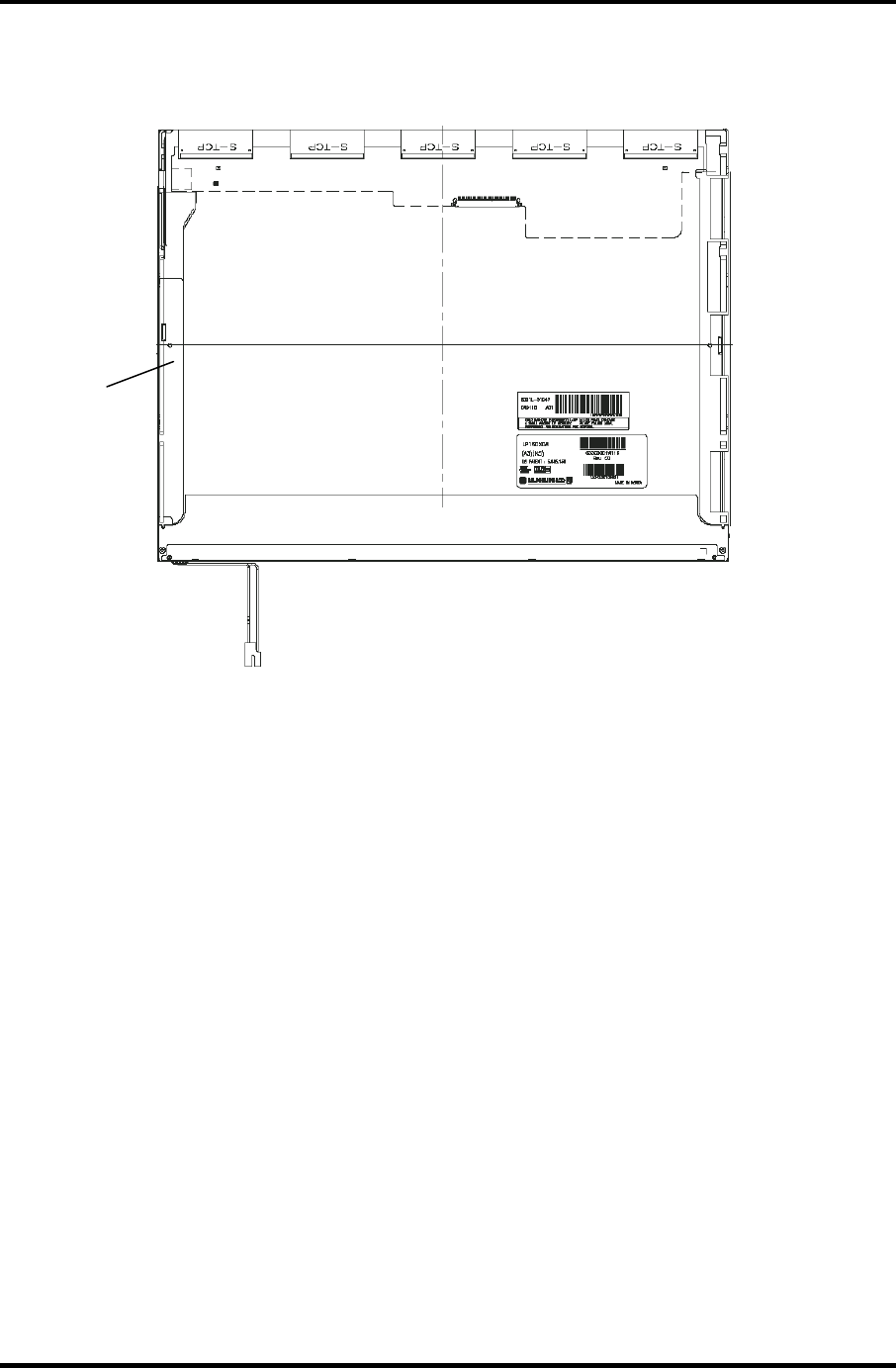

Figure 4-86 Replacing 15.0 Inch LG.Philips fluorescent lamp (XGA) (2)
Top case
