3.31 SETUP 3 Tests and Diagnostics
3-96 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
SETUP Options
The SETUP screen is divided into 14 functionally related groups. This section describes each group
and its options.
1. Memory
This group of options displays the computer’s memory.
This field displays the total amount of memory installed and is automatically
calculated by the computer. You cannot change this value.
2. System Date/Time
Sets the date and time.
System Date Sets date.
System Time Sets time.
3. Battery

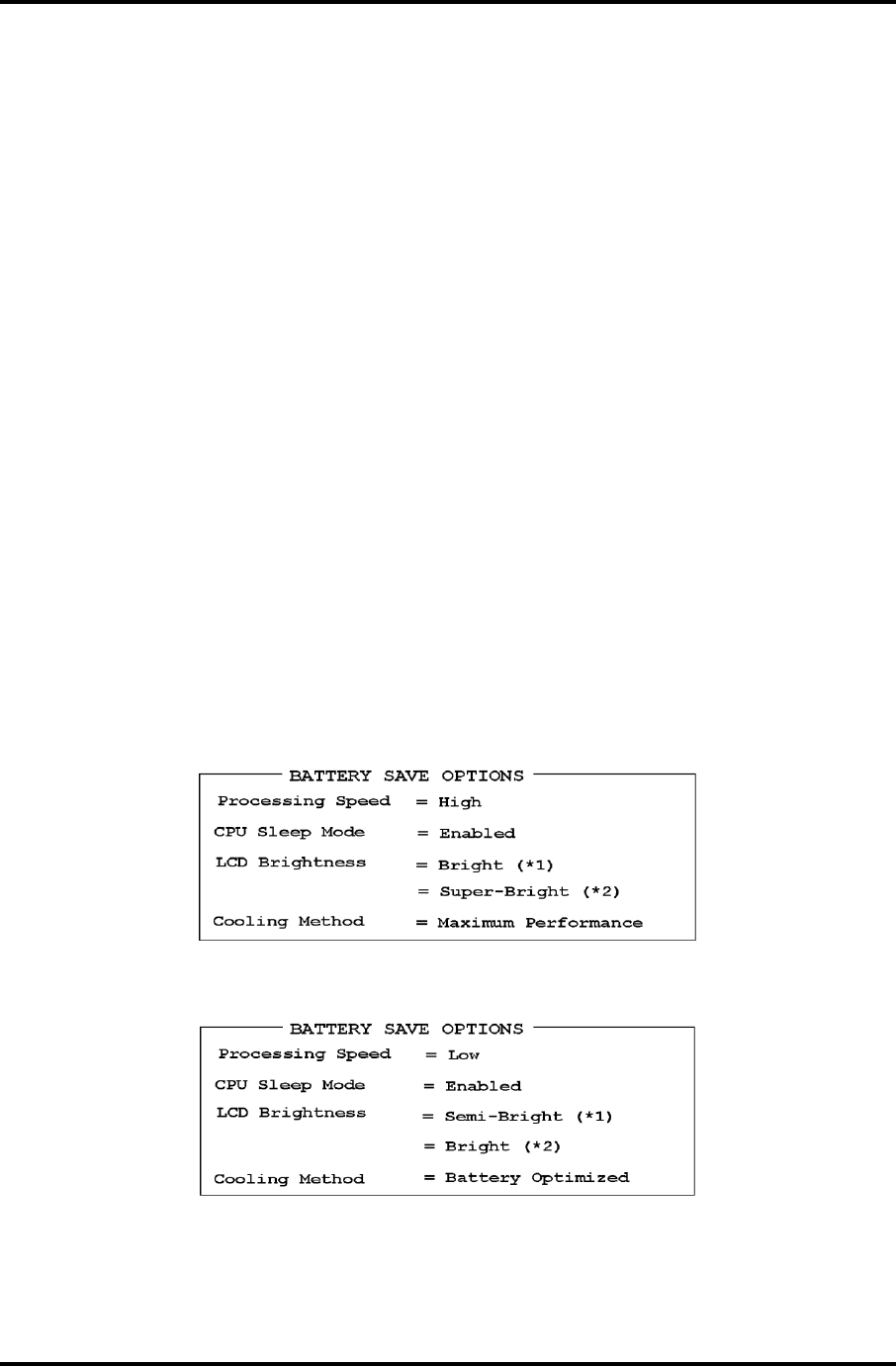

(a) Battery Save Mode
This option is used to select Full Power, Low Power or User Setting of the battery save
mode. When you select the battery save mode, the followings will appear.
Full Power The following shows full power settings.
Low Power The following shows low power settings.
