4 Replacement Procedures 4.8 Keyboard
4-26 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
4.8 Keyboard
Removing the Keyboard
The following describes the procedure for removing the keyboard (See Figure 4-17 to 4-19).
CAUTION:As the keytop may fall out, when handling the keyboard always hold it by the
frame and do not touch the keytop.
1. Open the display.
2. Hold the both ends of the keyboard holder and lift it up to remove.
CAUTION:When removing the keyboard holder, be careful not to touch the metal parts of
the speakers under it.

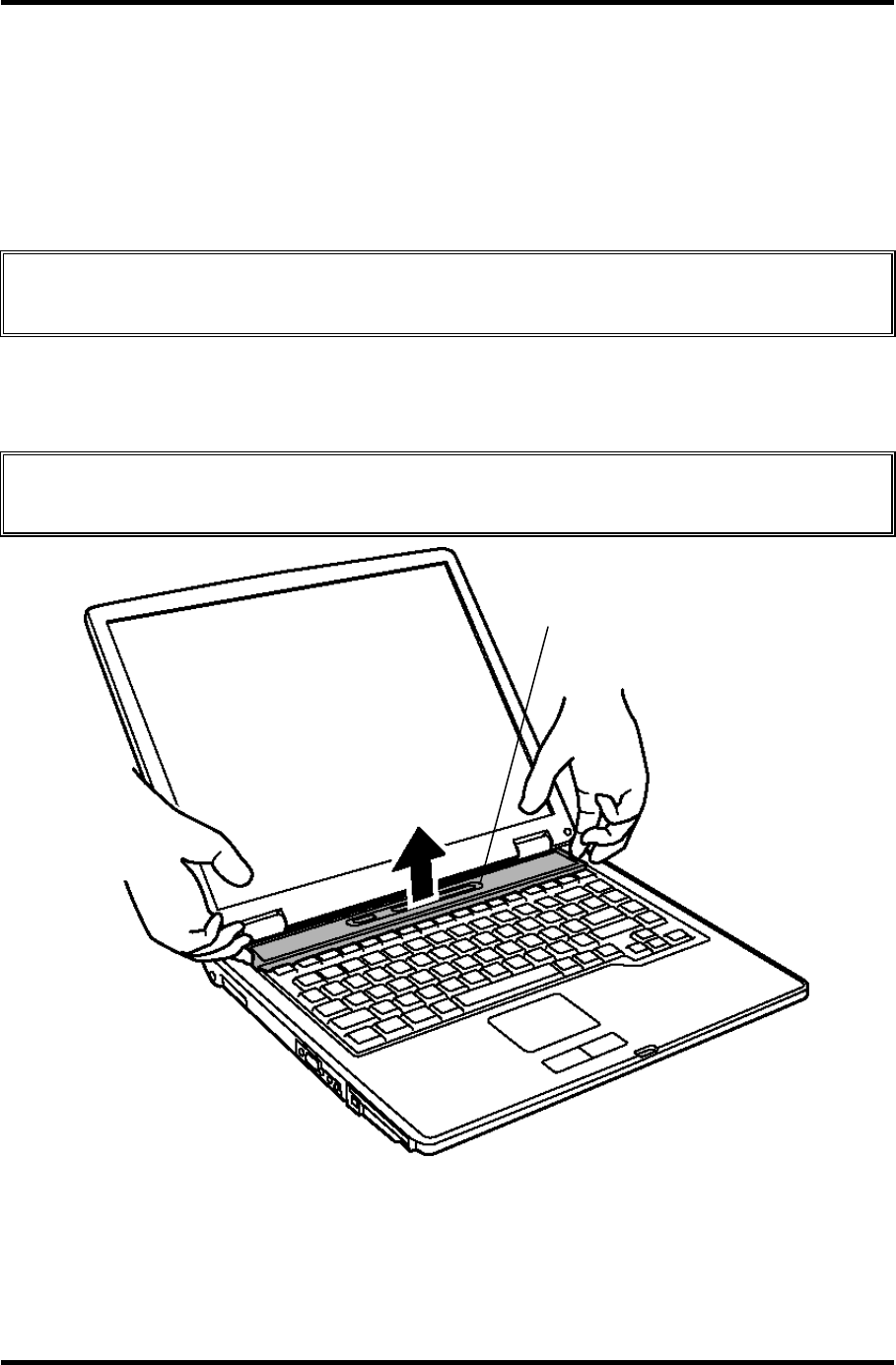

Figure 4-17 Removing Keyboard Holder
Keyboard Holder
