4 Replacement Procedures 4.4 MDC
4-14 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
4.4 MDC
Removing the MDC
The following describes the procedure for removing an MDC (See Figure 4-5).
CAUTION:Since the MDC slot cover is easily broken, remove the memory cover first
before removing the MDC slot cover.
When replacing the MDC, The power must be turned off when you remove the
MDC. Removing an MDC with the power on risks damaging the modem or the
computer itself.
1. Turn the computer upside down.
2. Loosen the screw (with e-ring) securing the MDC slot cover and remove the cover.
3. Remove the following screws fixing the MDC.
? M2x4Z BIND screw x2
4. Lift up the MDC to remove it from the connector on the system board.
5. Remove the MDC cable from the connector on the MDC.

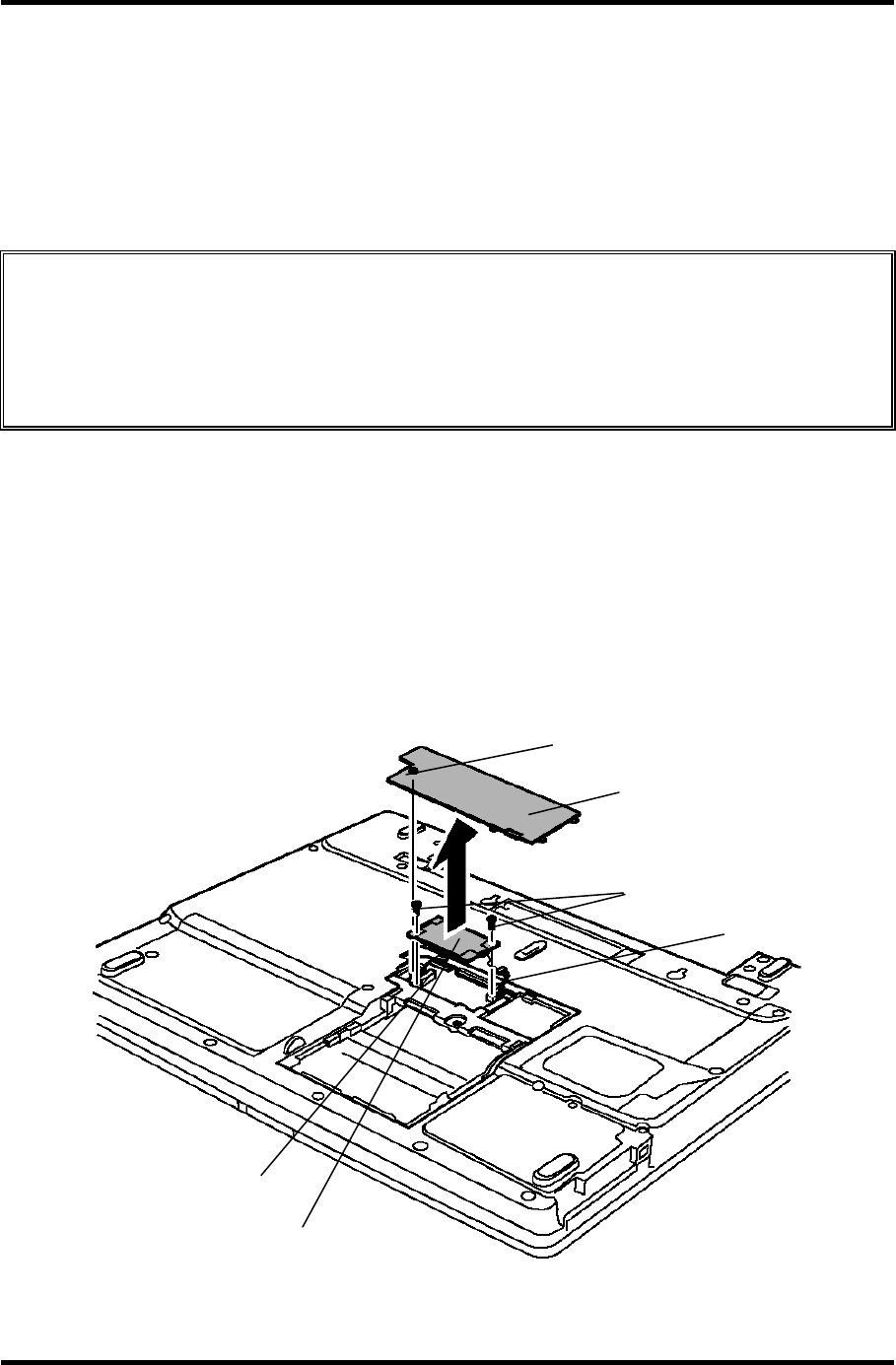

Figure 4-5 Removing MDC
M2x4Z BIND
MDC Slot Cover
MDC
PJ3020
Screw with e
-
ring
MDC Cable
