4.6 Wireless LAN card 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-19
4.6 Wireless LAN card
CAUTION: The power must be turned off when you remove a wireless LAN card.
Removing a wireless LAN card with the power on risks damaging the card or
the computer itself.
Never press hard or bend the wireless LAN card.
Removing the Wireless LAN card
The following describes the procedure for removing the wireless LAN card (See Figure 4-9,
4-10).
1. Turn the computer upside down.
2. Remove the following screw fixing the mini PCI slot cover and remove the cover.
? M2x4B BIND or LH STICK x1

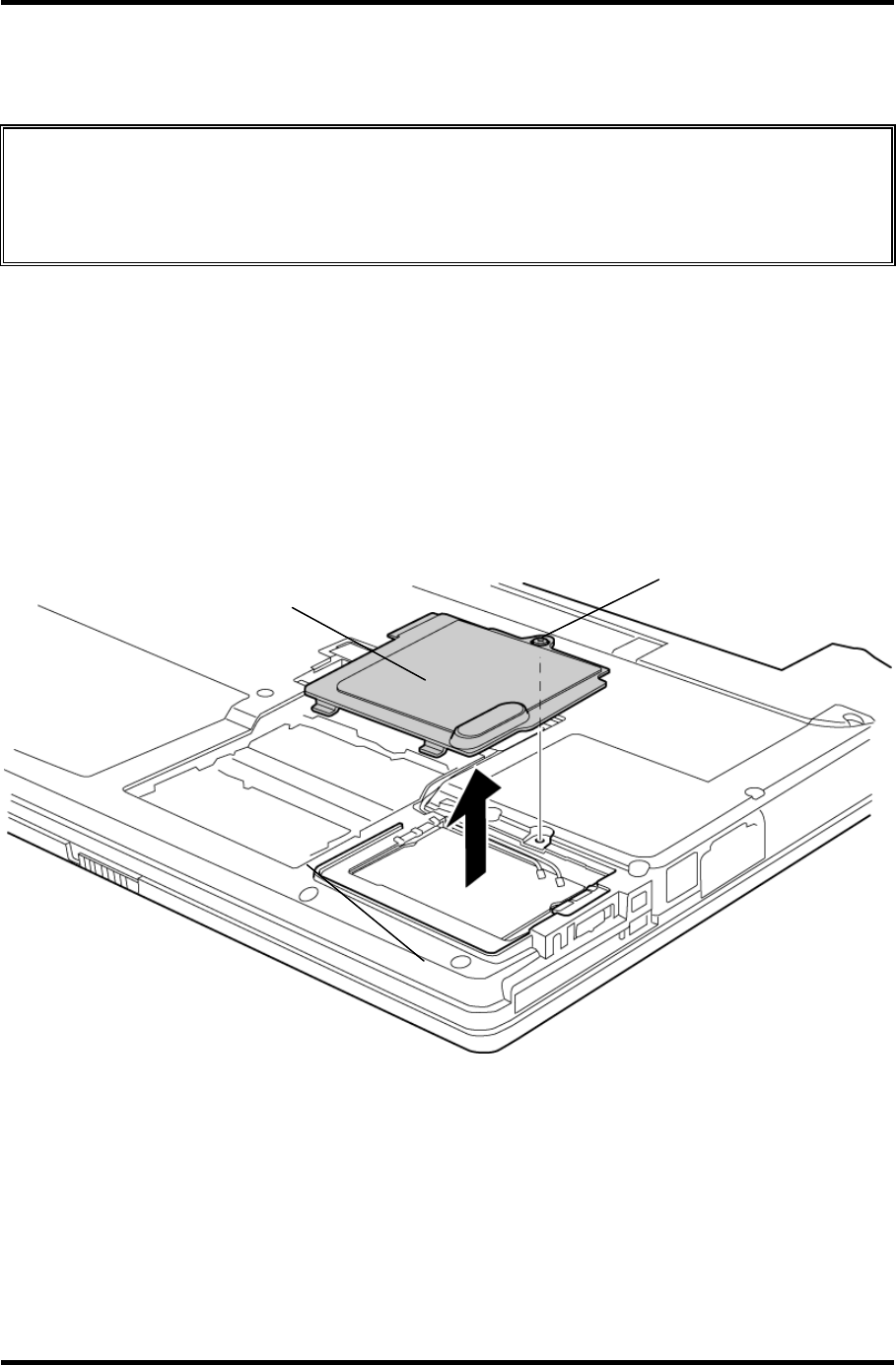

Figure 4-9 Removing Mini PCI Slot Cover
Mini PCI Slot Cover
M2x4B BIND or LH STICK
