1.5 CD-ROM Drive 1 Hardware Overview
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 1-13
1.5 CD-ROM Drive
The CD-ROM drive accommodates either 12 cm (4.72-inch) or 8 cm (3.15-inch) CD. It is a
high-performance drive that reads at maximum 24-speed.
The CD-ROM drive is shown in Figure 1-6. The specifications of the CD-ROM drive are
described in Table 1-4 and 1-5.

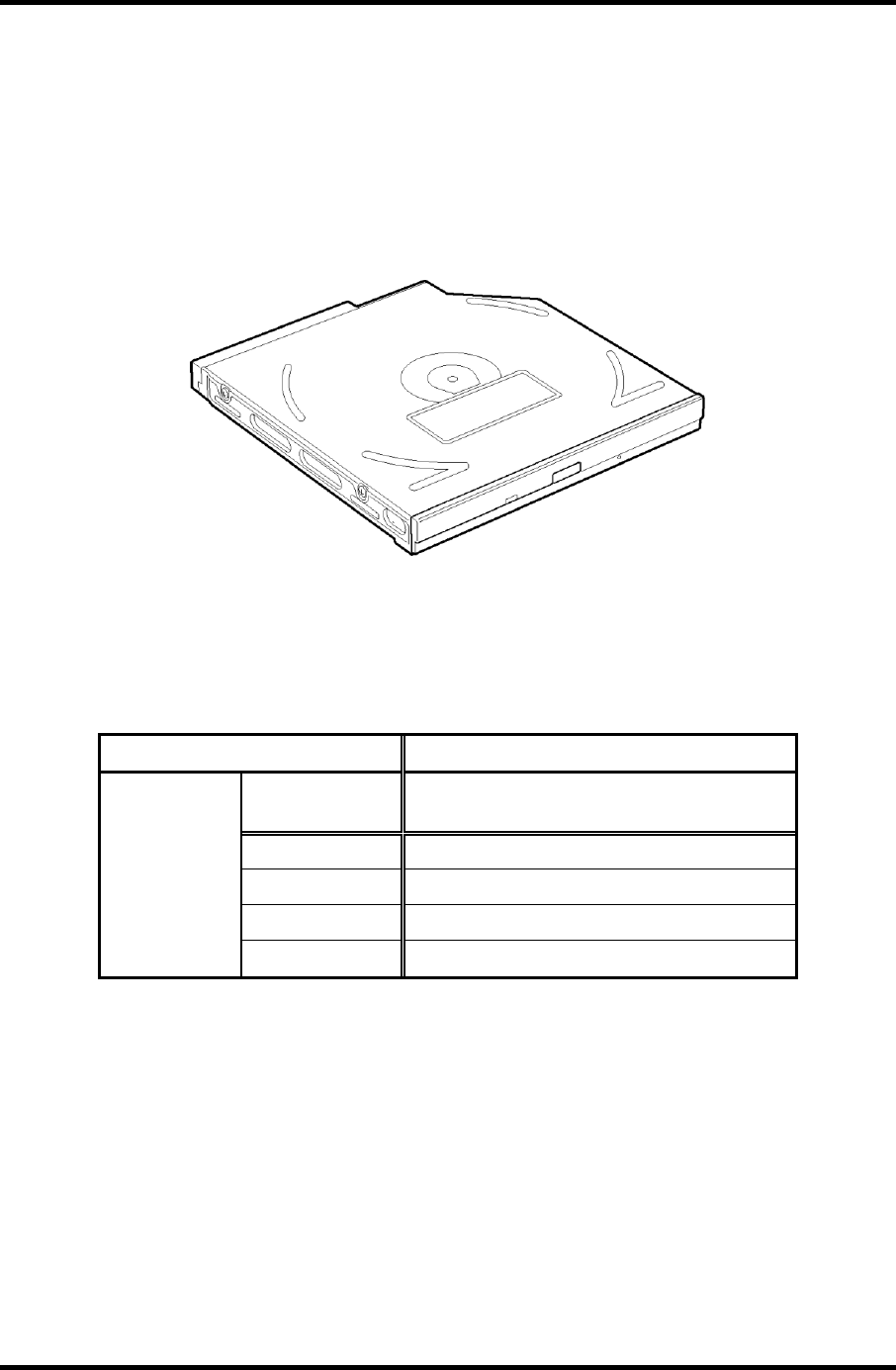

Figure 1-6 CD-ROM drive
Table 1-4 CD-ROM drive dimensions
Item
Standard
Maker
TEAC
(G8CC0002R220)
Dimensions
Width (mm)
128
Height (mm)
12.7
Depth (mm)
129.4
Weight (g) 165 (max)
