4 Replacement Procedures 4.22 Wireless LAN Antenna/Speaker/Hinge
4-64 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
2. Remove the following screw securing the LCD harness holder to remove it.
? M2x4Z SUPER THIN screw x1

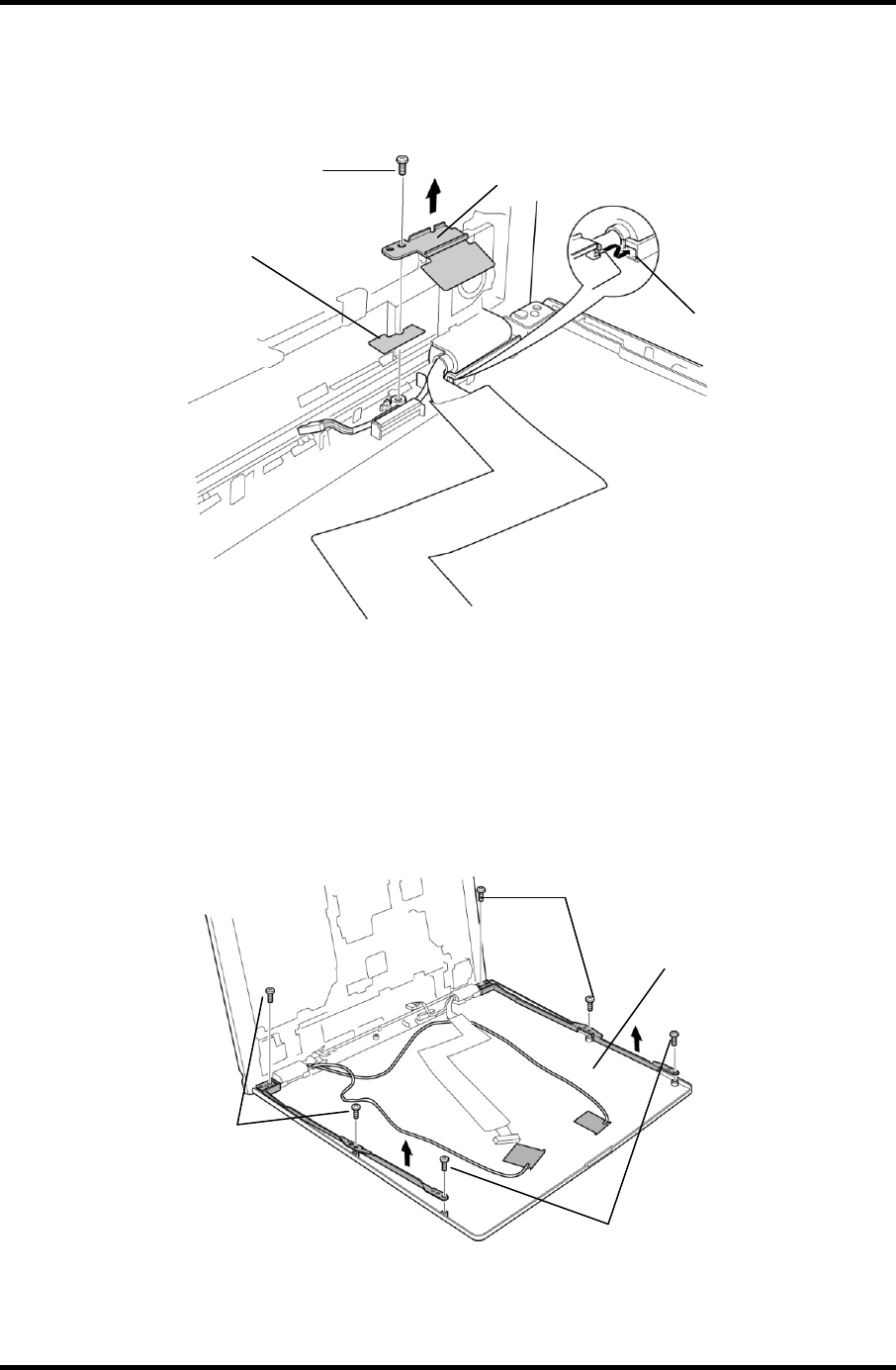

Figure 4-45 Removing LCD harness Holder
3. Remove the following screws securing the display cover to the hinges.
? M2.5x6C PSP TIGHT screw x4
? M2x5C SUPER THIN screw x2
4. Remove the display cover from the hinges.
Figure 4-46 Removing display cover
LCD harness Holder
M2x4Z
SUPER
THIN
M2.5x6C
PSP TIGHT
M2.5x6C
PSP TIGHT
M2x5C
SUPER THIN
slot
Insulator
Display cover
