1.8 DVD Super Multi drive 1 Hardware Overview
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 1-21
1.8 DVD Super Multi drive
The DVD Multi drive accommodates either 12 cm (4.72-inch) or 8 cm (3.15-inch) CD, CD-
R/RW and DVD. It is a high-performance drive that reads CD at maximum 24-speed (3,600
KB per second) and writes DVD-RW at 2-speed, DVD-RAM at 2-speed, DVD-R at4-speed,
DVD+R at 2.4-speed and DVD+RW at 2.4-speed.

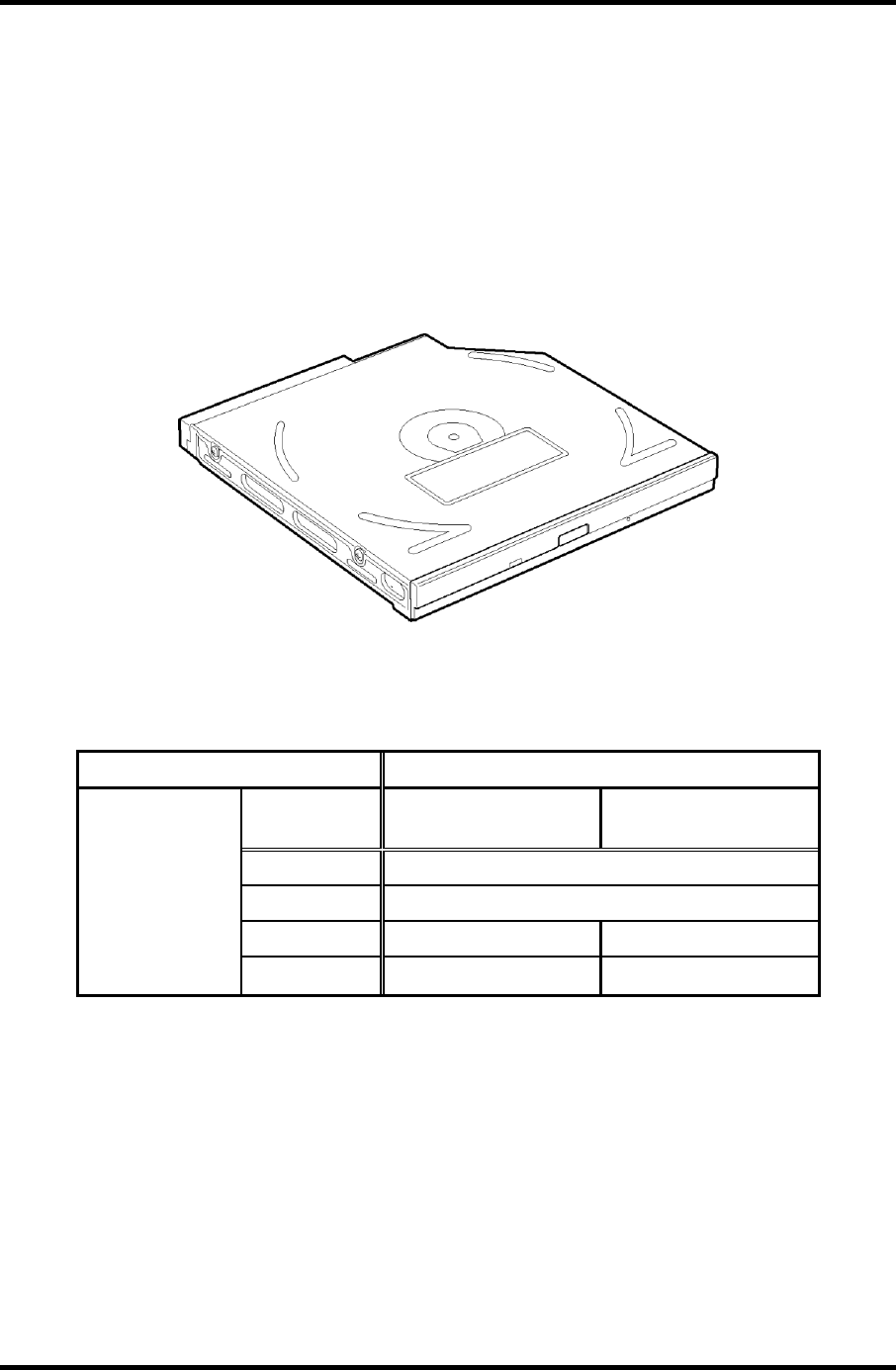

The DVD Super Multi drive is shown in Figure 1-9. The specifications of the DVD Super
Multi drive are described in Table 1-10 and 1-11.
Figure 1-9 DVD Super Multi drive
Table 1-10 DVD Super Multi drive dimensions
Items Standards
Maker
Panasonic
(G8CC0002T220)
TEAC
(G8CC0002S220)
Dimensions
Width (mm)
128
Height (mm)
12.7
Depth (mm)
129.0 129.4
Weight (g)
190 ±10
190 (max)
