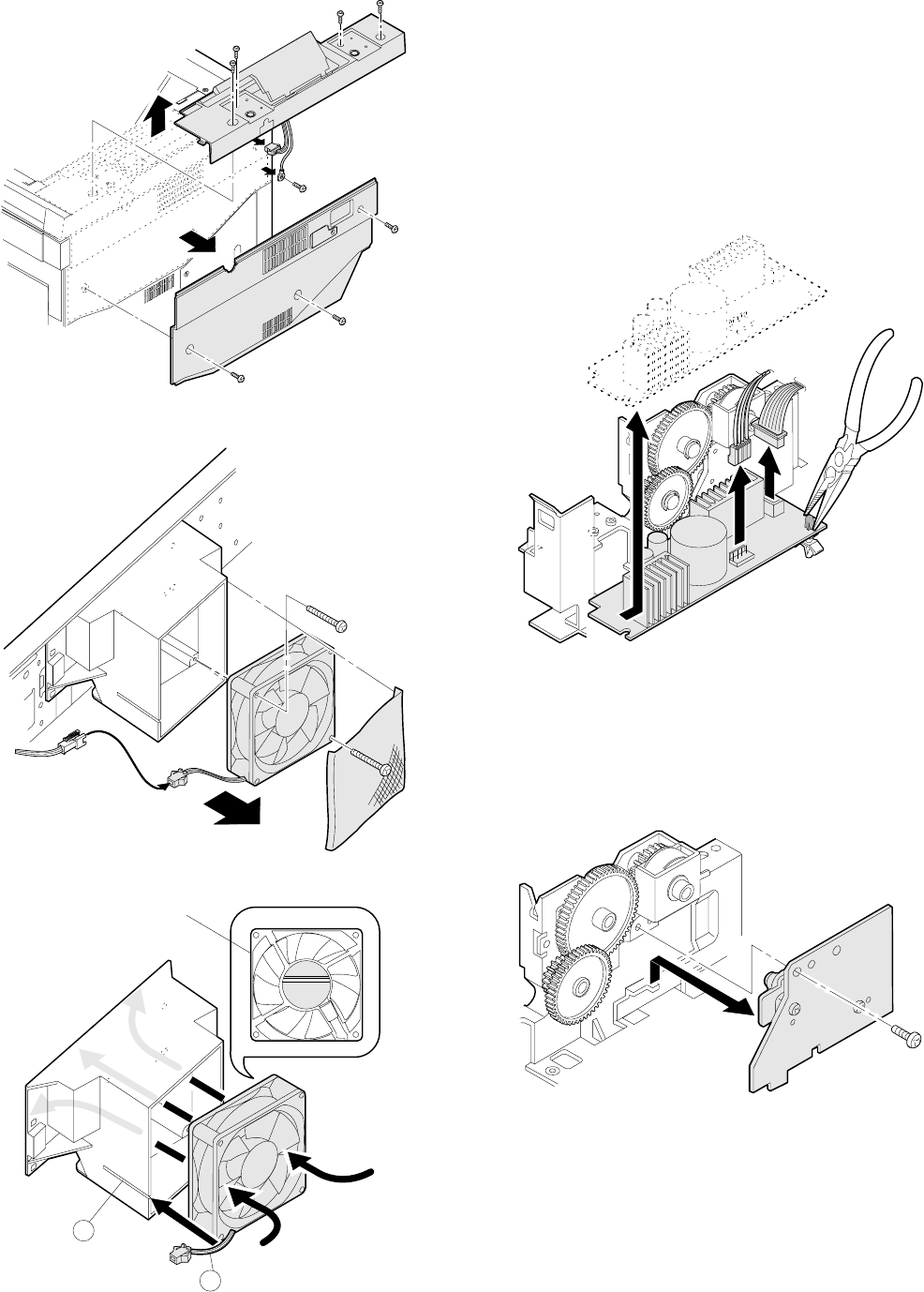

2 Remove the upper cabinet and the rear cabinet.

3 Remove the cooling fan from the CFM duct. (2 screws, 1 connec-

tor)

B. Cooling fan motor

Reverse the removal procedures.

<Note> When attaching the cooling fan motor, put the harness sec-

tion B and the CFm duct groove section A in the same

direction, and pass the harness in the groove.

Check that the fan center label is on the back when viewed

from the rear of the machine.

Check that air blows in the arrow direction (toward the

machine).

9-2. Power unit

1 Remove the rear upper and lower cabinets.

2 Remove two connectors, hold the PWB fixing bush with radio

nippers and slide it toward the paper exit side to remove.

9-3. Tray size detecting PWB

1 Remove the rear upper/lower cabinets.

2 Remove the power unit.

3 Remove one fixing screw, one connector, and remove the tray

size detection PWB.

Label

6 – 22
