Install so that the projected portion of the copy lamp is near the rear

side as shown above.

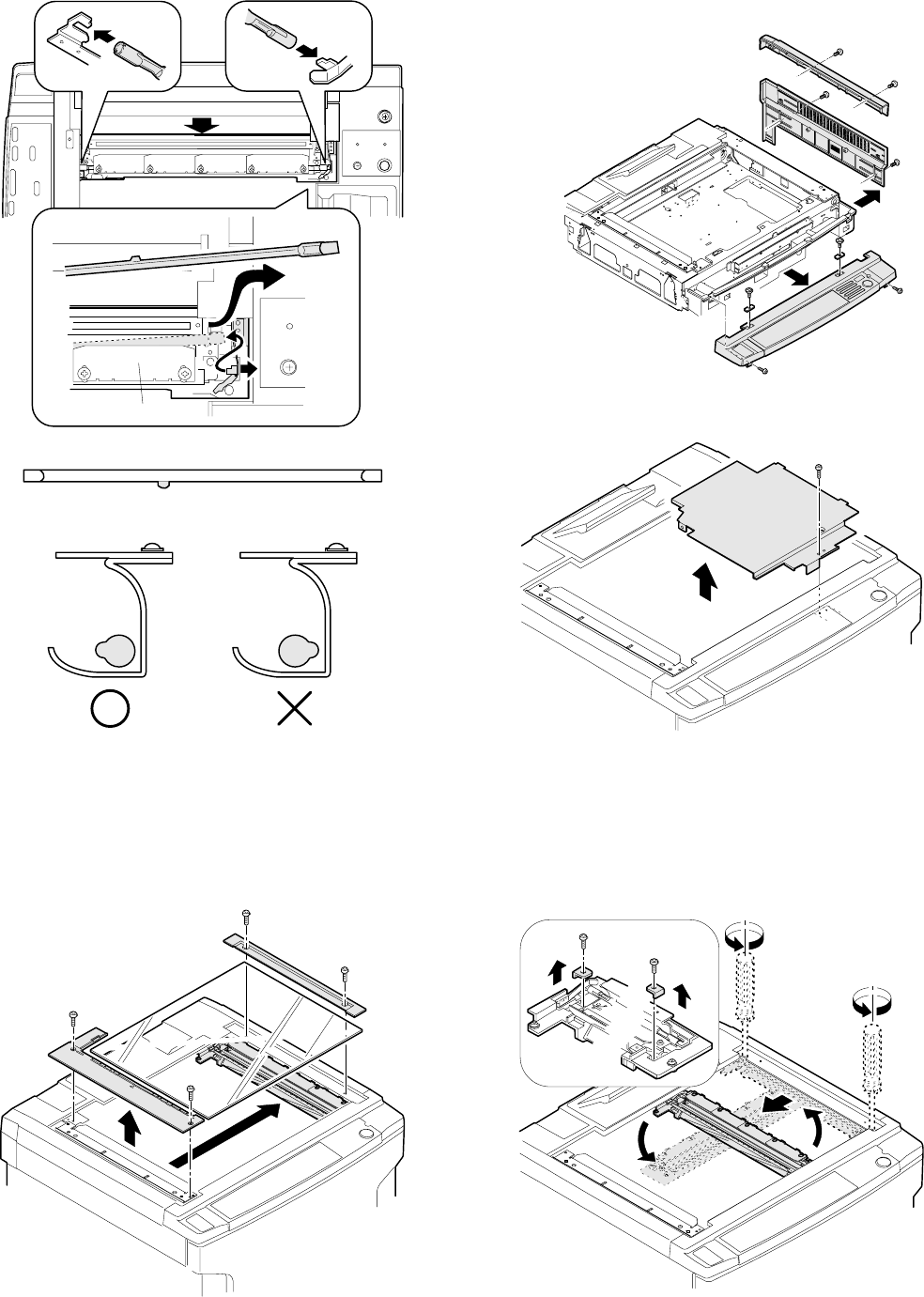

2) Mirror base wire replacement and adjustment

A. Copy lamp unit removal

Remove OR guides R/L, and remove the table glass.

2 Remove the operation panel, the upper cabinet R, and the right

cabinet.

3 Remove the dark box cover upper.

4 Manually move mirror base B. (Within the range where the wire

fixing plate fixing screw can be removed.)

5 Remove the wire fixing plate in the front/rear frame side of the

copy lamp unit, and remove the wire from the side plates F/R.

6 Remove the harness from the copy lamp unit.

7 Rotate the copy lamp unit counterclockwise to remove.

(B)

Optical adjustment plate

6 – 7
