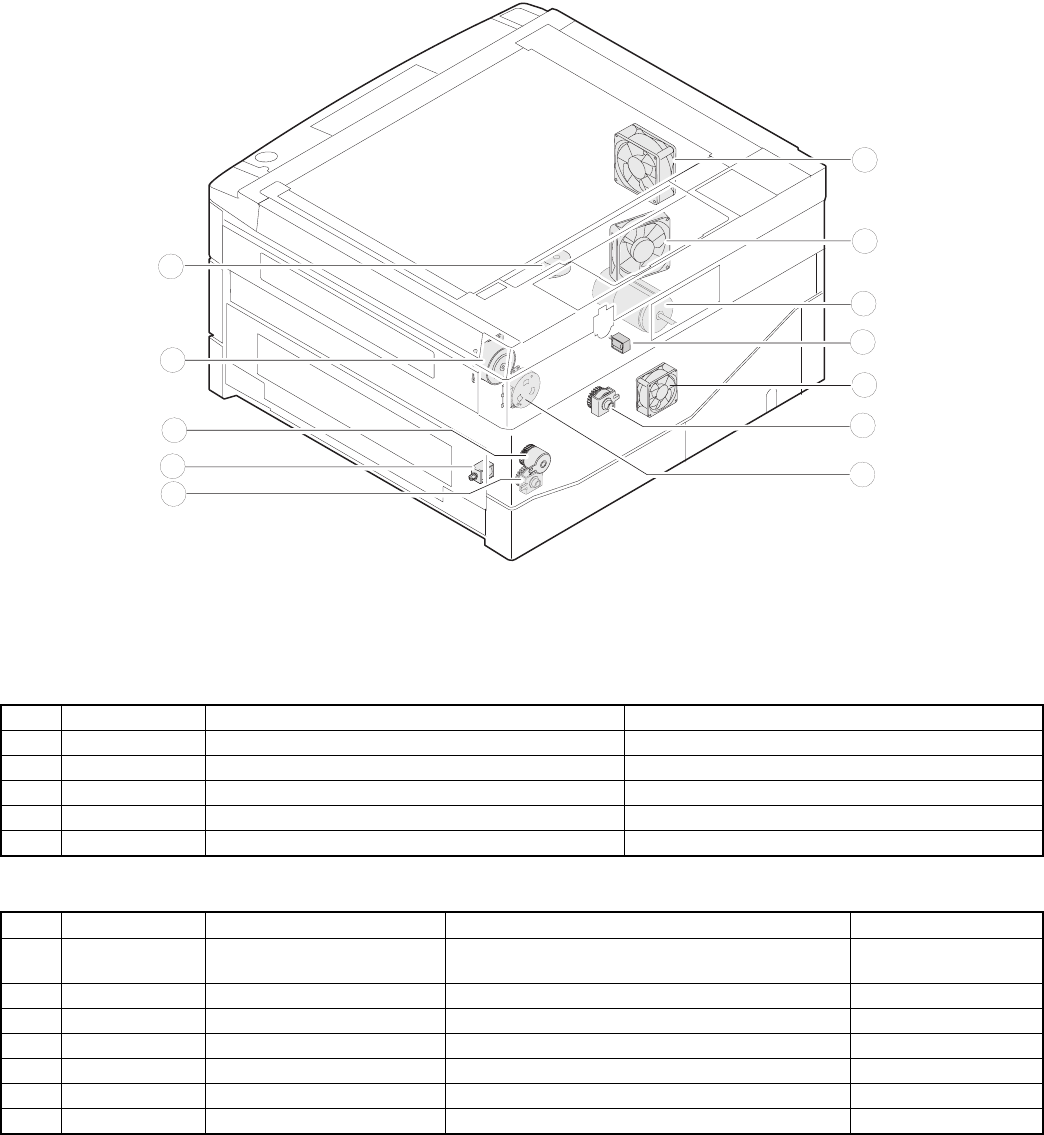

3. Clutches, solenoids, and motors

Clutches and solenoids

No. Signal name Name Functions, operations

1 PSPS Paper separation solenoid Paper separation solenoid drive

2 RRC Resist roller clutch For resist roller rotation

3 TRC Transport roller clutch For transport roller rotation

4 CPFC1 Tray paper feed clutch For paper feed roller rotation

5 MPFS Manual paper feed solenoid For pressing take-up roller

Motors

No. Signal name Name Functions, operations Type

6 VFM Ventilation fan motor Used to ventilate around the fusing section, cools

down the machine, and remove ozone.

DC brushless

7 MM Main motor Used to drive the body. DC brush

8 CFM Optical system cooling fan Used to cool and ventilate the optical system. DC brushless

9 LM Lens motor Used to move the optical lens. DC stepping

F TM Toner motor Used to stir toner. DC synchronous

G MRM Mirror motor Used to move the mirror base. DC stepping

H SMF Suction fan motor Used to ventilate the suction section. DC brushless

3 – 3
