AR-651/810 RADF (DOCUMENT FEEDER) 16 - 87
Ref.
0 ~ 0.5 mm
Platen outside guide

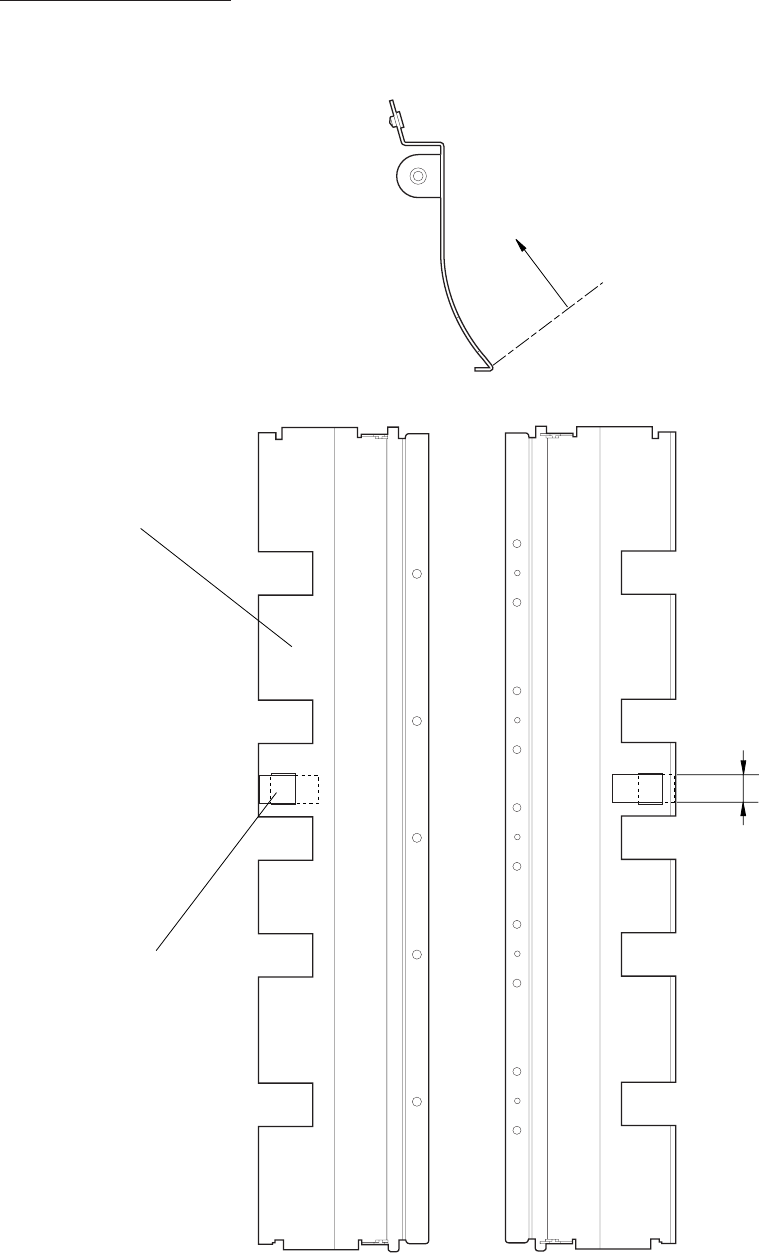

(I-2) Mylar for read sensor
Mylar
Attach the mylar
passing through the
guide window to
prevent twisting and
too strong contact on
the edge of the guide
window.
Attach the mylar aligning
the edge of it with the
corner end of the guide.
Positioning the mylar
other than from the
corner end of the guide is
not allowed.
