AR-651/810 TRANSFER/TRANSPORT UNIT 13 - 10

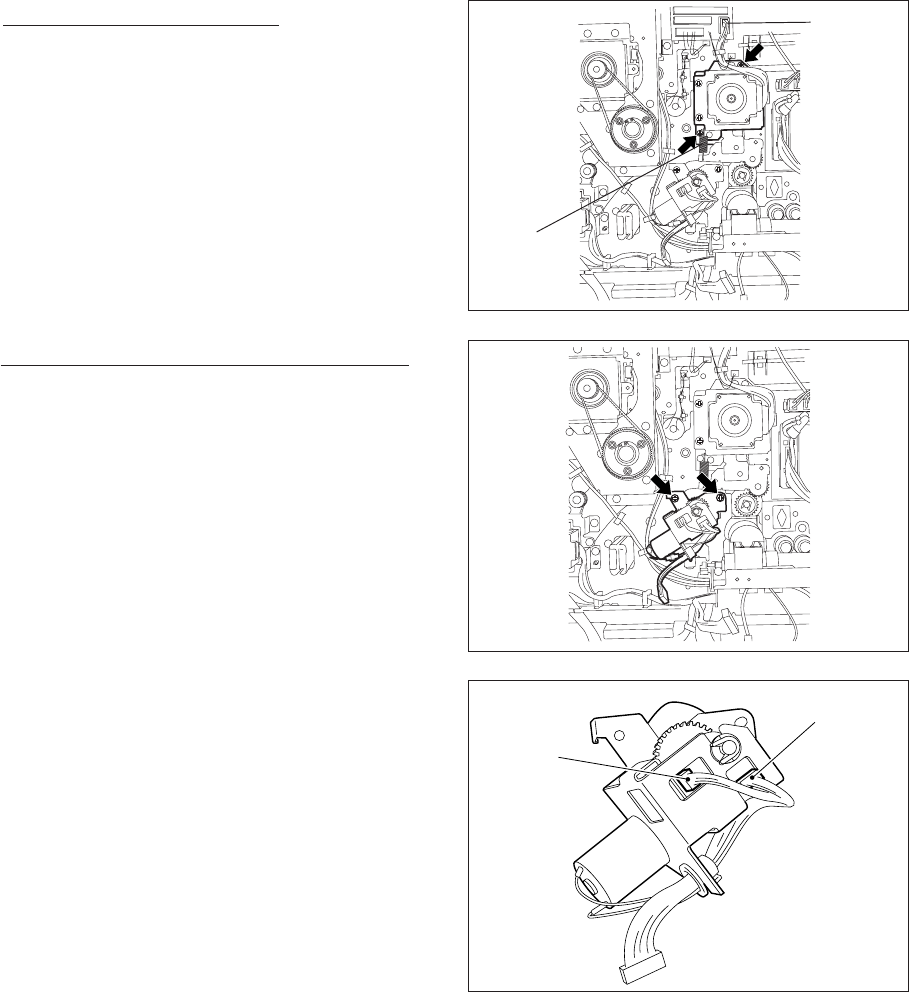

[I] Transfer belt drive motor unit
(1) Remove the rear cover and take off the flywheel.
(2) Disconnect 1 connector, remove 1 spring
and 2 screws and take off the drive motor unit.
Note: When installing the motor, rotate it counterclock-
wise to fix.
Green board
Silver board
[J] Transfer belt contact/release cam drive unit
(1) Remove the rear cover and take off the flywheel.
(2) Disconnect 1 connector, remove 2 screws and
take off the cam drive unit.
(3) Disconnect the connector and take off 2 sensors.
Note: When replacing each sensor, pay attention to
the board color (shown in the right figure) and
direction.
Spring
Connector
