AR-651/810 TRANSFER/TRANSPORT UNIT 13 - 4

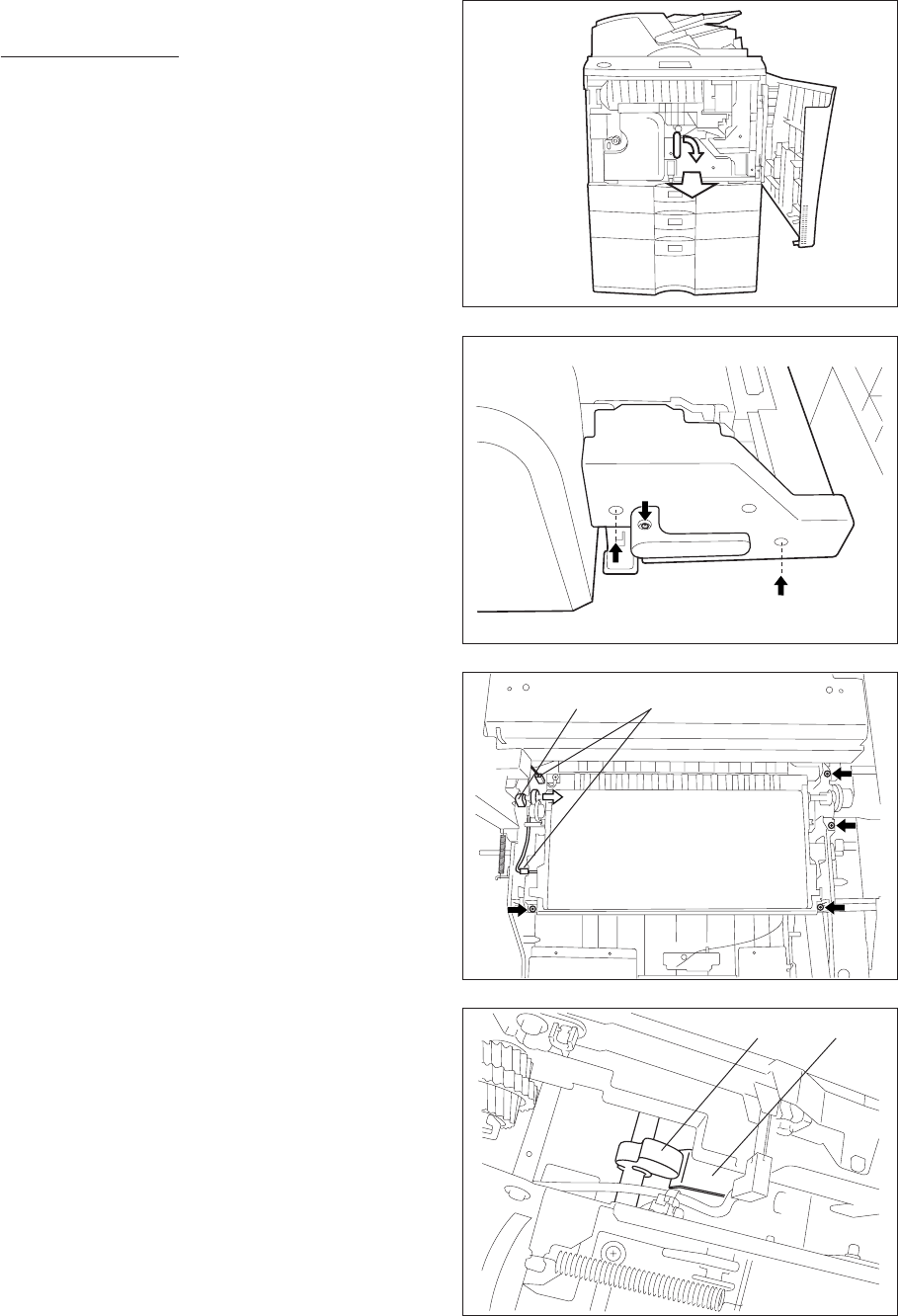

13. 4. Disassembly and Replacement
[A] Transfer belt unit
(1) Open the front cover, turn the handle clockwise
and pull out the transfer/transport unit.
Connector
(2) Remove 1 screw and take off the handle.
(3) Remove 2 screws and take off the cover.
(4) Disconnect 2 connectors, remove 1 clip and take
off the front side bearing. Then remove 4 screws
and take off the transfer belt unit.
Note: When installing the transfer belt unit, install it as
the lever comes under the cam.
Clip
Cam Lever
