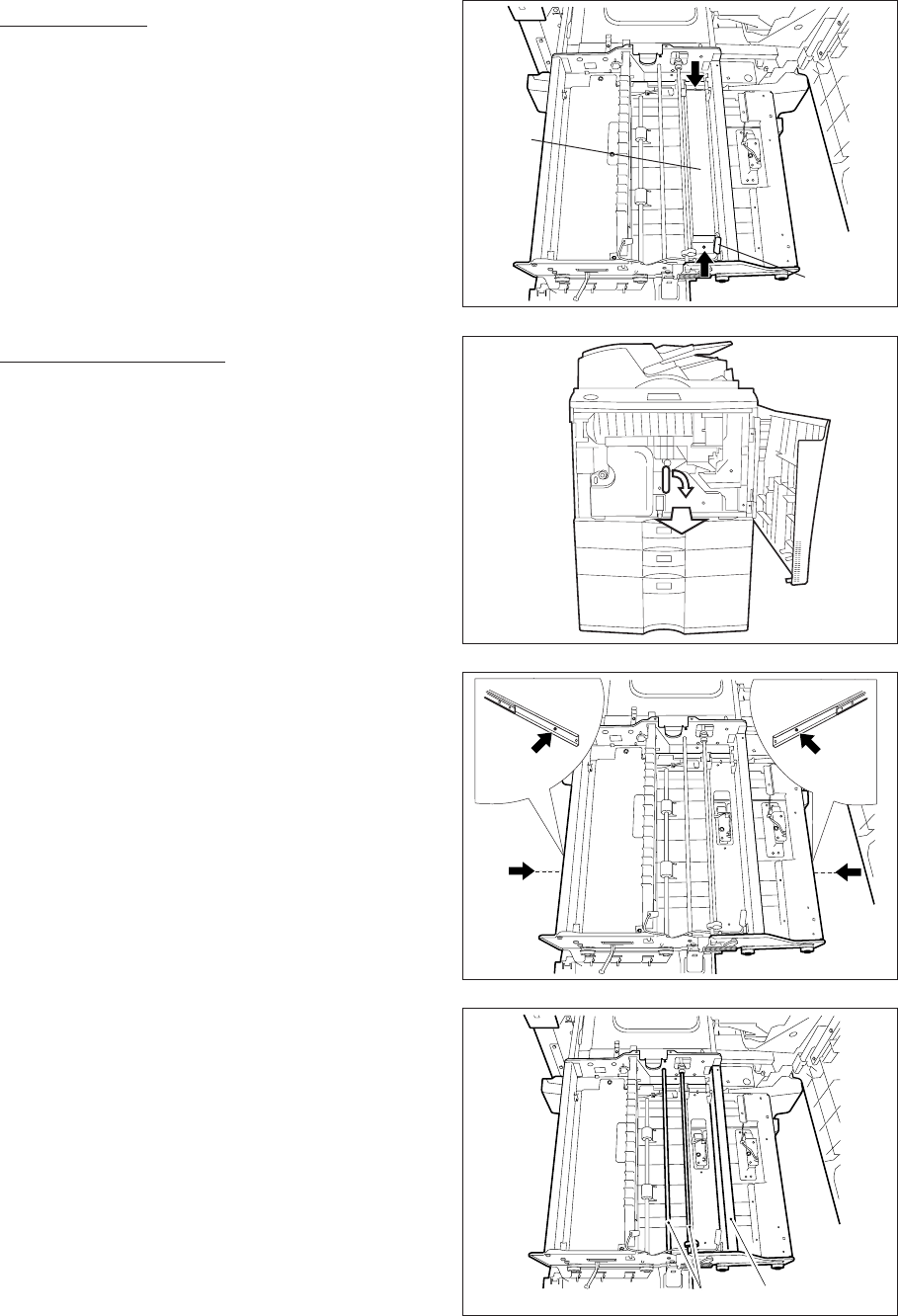

AR-651/810 TRANSFER/TRANSPORT UNIT 13 - 7
[F] Transfer/Transport unit
(1) Open the front cover, turn the lever clockwise
and pull out the transfer/transport unit.
(2) Remove the fuser unit and transfer belt.
Note: When removing the transfer/transport unit,
remove each unit after removing the fuser and
transfer belt units.
(3) Remove 2 shoulder screws fixed at both sides
slide rails.
(4) Hold the A(shaft) or B(stay) section with the left
hand and the right slide rail with the right hand.
[E] Damp heater
(1) Remove the transfer belt unit.
(2) Remove 2 screws, disconnect 1 connector and
take off the damp heater.
Note: When installing the dump heater, be careful
not to catch it in the harness.
A
B
Dump
heater
Connector
