AR-651/810 PAPER FEEDING SECTION 9 - 10
9. 4. Drive Circuit for Tray-up Motor
Cassette tray-up motor (MOT) : Driven by IC72 (tray-up motor 1) and IC36 (tray-up motor 2)
(LGC: TA8428)

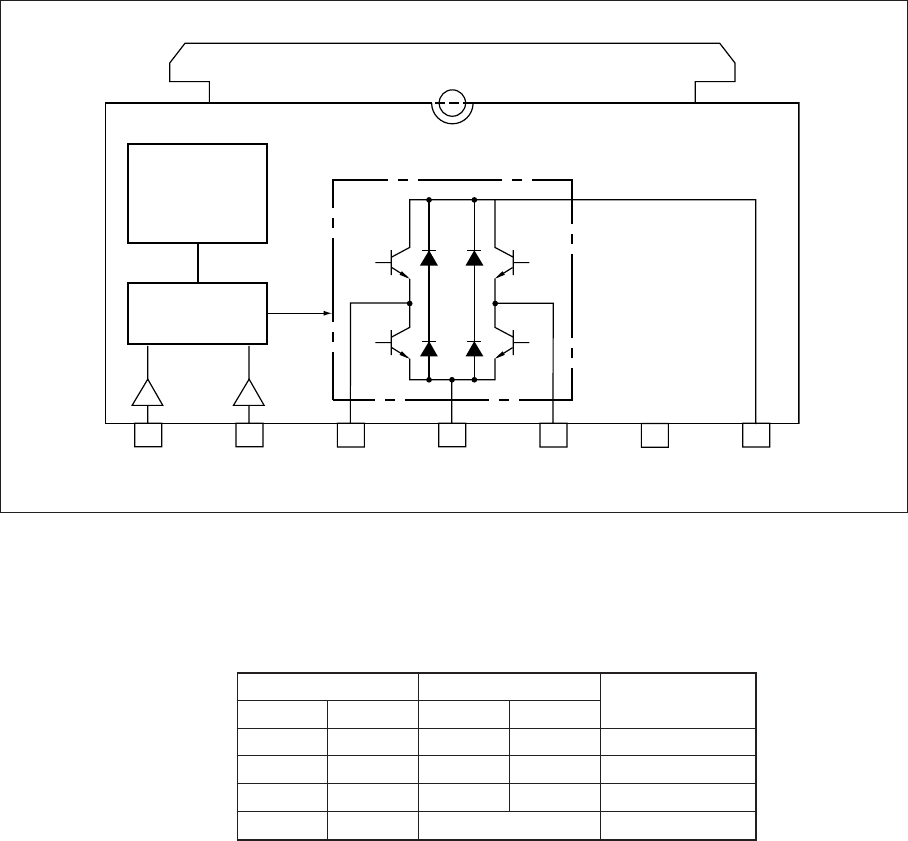

Block diagram of TA8428
1 2 3 4 5 6 7
IN1 IN2 M(+) GND M(–) N.C. V
CC
IN1 and IN2 are input terminals to receive the signals from the microcomputer. The control logic, based on
the signals from the microcomputer, controls the rotation direction and ON/OFF of the motor.
Input Output
IN1 IN2 M (+) M (–)
Remarks
H H L L BRAKE
LH L HCW
H L H L CCW
L L OFF (high impedance) STOP
Control logic
Thermal shut-
down over-
current protec-
tion circuit
