AR-651/810 TRANSFER/TRANSPORT UNIT 13 - 6

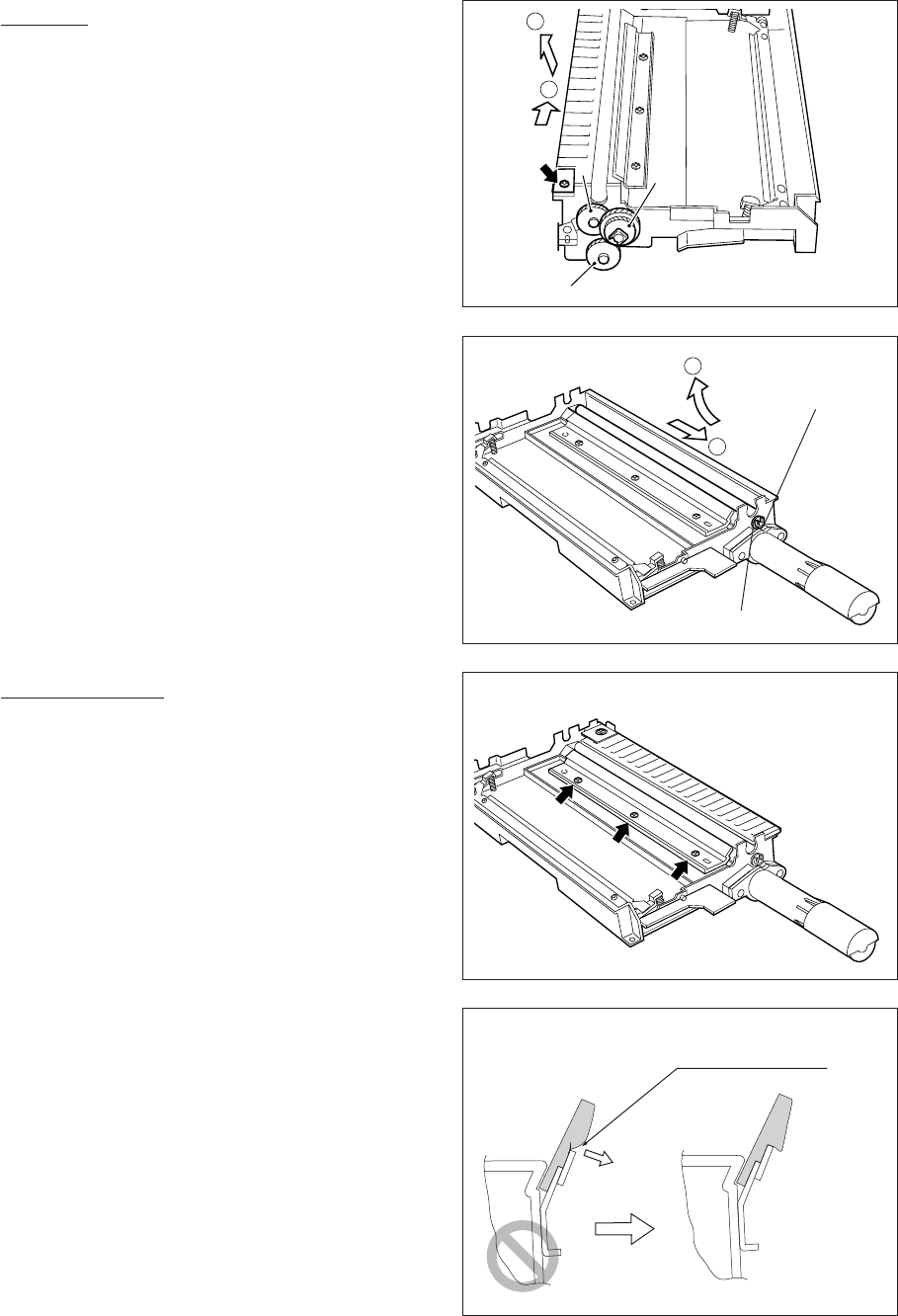

[C] Brush

(1) Remove the transfer belt keeping/feeding section.

(2) Remove 1 screw and take off the plate spring.

(3) Move the transport guide to the rear side and

pull it out upward.

(4) Remove 1 clip and take off 3 gears.

Notes: 1. The gears a/c has a latch, and remove the

gears in the order a, b, c.

2. When installing each gear, make sure the

latch fits into the groove portion of the shaft.

[D] Cleaning blade

(1) Remove the transfer belt keeping/feeding

section.

(2) Remove 3 screws and take off the cleaning

blade.

Notes: 1. When installing the cleaning blade, make

sure that both sides of the bosses are fit in

and screwed shut.

2. Do not touch the blade with bare hands

and make any scar on it.

3. Be careful not to mash the urethane seals at

both sides.

Clip

Bushing

(5) Remove 1 clip and take off the bushing.

(6) Push the brush to the rear side, take off

the front side shaft and pull out the brush upward.

Note: Do not touch the top of the brush with bare hands.

Urethane seal
