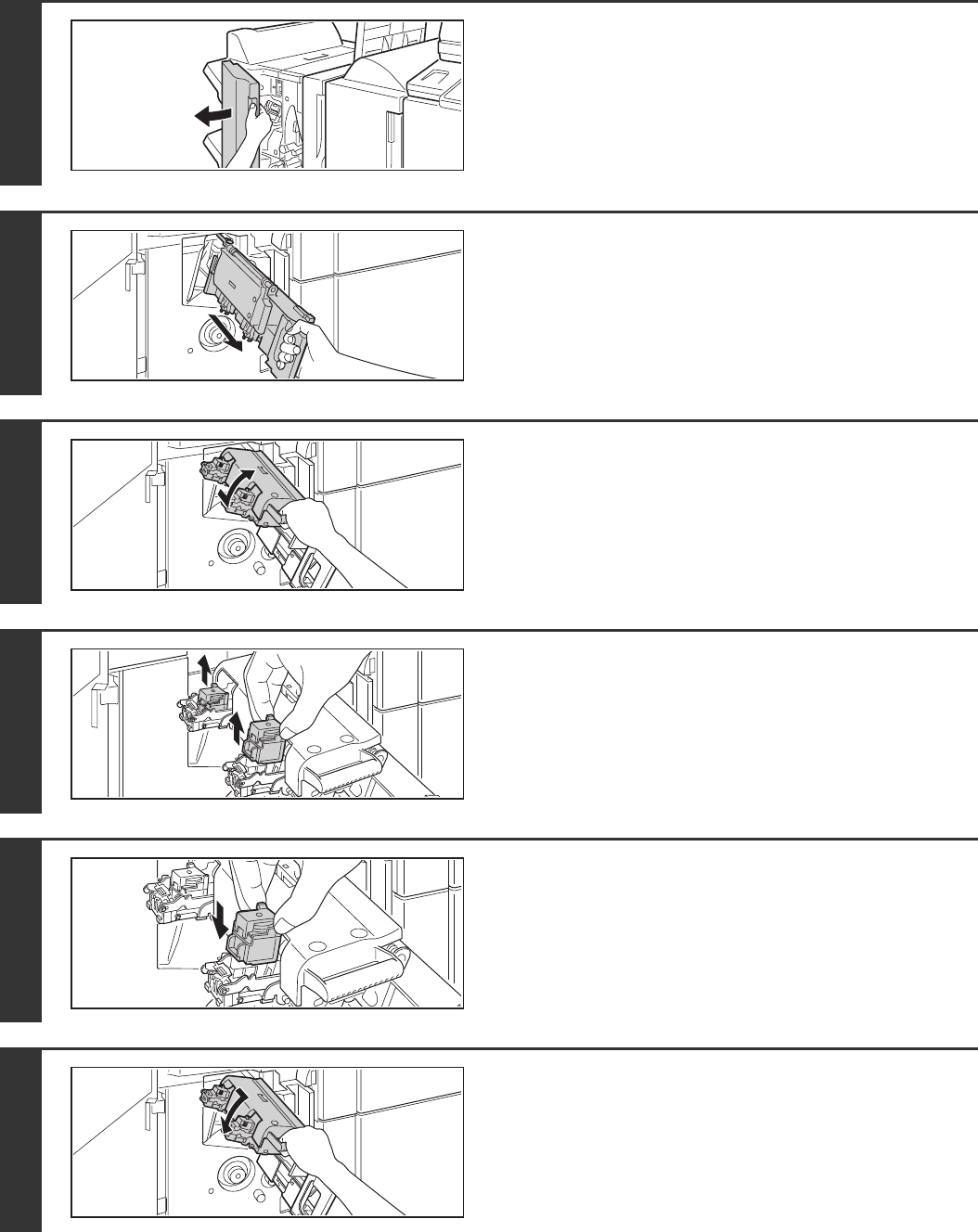

Replacing the staple cartridges in the saddle stitch unit
1
Open the front cover.
2
Grasp the handle on the saddle stitch
unit and pull it slowly out until it stops.
3
Pull the staple unit in the saddle stitch
unit out and then rotate it up.
4
Grasp the left and right side of each
empty staple cartridge and remove the
cartridges.
5
Load new staple cartridges.
Replace both staple cartridges.
Remove the cover from each staple cartridge and then install
the cartridge.
6
Pull the staple unit of the saddle stitch
finisher forward and then rotate it back
to its original position.
