Expansion Memory (ZM-43EM)
2 5
1 Expansion Memory (ZM-43EM)
ZM main body
MJ2 MJ1
24VDC
CN2
CN1
DIPSW
ON
1
23456
7
8
Turn on the DIP SW
NO.1 by lifting it up.
In the case of expansion memory #2
F
R
O
M
0
F
R
O
M
1
C
N
1
J
P
1
V
9
7
-M
E
M
C
P
0
2
0
0
4

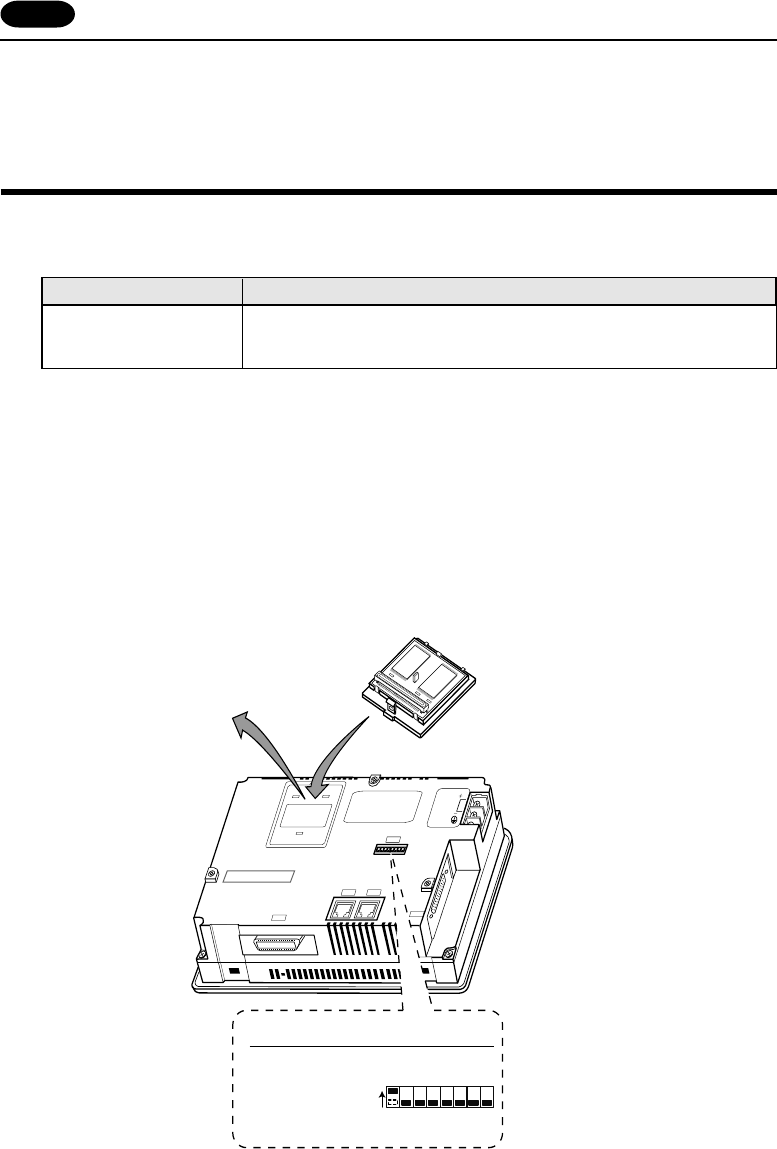

(2) Install the expansion memory.
(1) Take off the cover
An expansion memory ZM-43EM is the extension board used for which increases the screen data memory of
ZM-43T/43D/43L. When ZM-43T/43D/43L is mounted, 4 M bytes of screen data memory can be extended.
Correspondense models
ZM-43 series
(ZM-43T/43D/43L)
Software version
- Use the version 1.2.0.0 or later for program version (SYSTEM PROG.
VER.) of the ZM-43T/43D/43L.
- Use the verison 1.2.0.0 or later for ZM-71SE.
Installation
Please install the ZM-43EM in ZM-43T/43D/43L (the following is ZM main body) in the following procedure.
1. Turn OFF the power.
2. Take off the cover of the cassette part for connect with expansion memory , and install the ZM-43EM.
When installing the memory, press hard on both ends of the ZM-43EM.
3. The DIP switch of the ZM main body side is set up according to the purpose of use.
Refer to the next page “Kinds of memory expansion”.
4. The power supply of ZM main body is turned ON.
