1 Connection
<Type> <Calendar>
KOYO : SU/SG Depends on the model
KOYO : SR-T Provided
KOYO : SR-T(K prt) Not provided
A.B : PLC-5 Not provided
A.B : SLC500 Provided
A.B : Micro Logix 1000 Not provided
GE Fanuc : 90 series Not provided
GE Fanuc : 90 series(SNP-X) Not provided
TOSHIBA : T series Provided
SIEMENS : S5/S7 Not provided
SIEMENS : S5/S7 ZM70 Not provided
SIEMENS : TI500/505 Provided
SIEMENS : S5 PG port Not provided
SAMSUNG : SPC series Not provided
SAMSUNG : SECNET Depends on the model
KEYENCE : KZ series Not provided
KEYENCE : KZ-A500 CPU Port Provided
KEYENCE : KV series Not provided
KEYENCE : KZ24/300 series CPU Not provided
KEYENCE : KV10/24 series CPU Not provided
LG : MASTER-K10/60/200 Not provided
LG : MASTER-K500/1000 Not provided
LG : LGMKX00S Not provided
FANUC : Power Mate Not provided
FATEK AUTOMATION: FACON FB series Provided
IDEC : MICRO3 Provided
MODICON : Modbus RTU Depends on the model
YAMATAKE : MX series Provided
TAIAN : TP02 Provided
<Type> <Calendar>
MITSUBISHI : AnA/N/U series Provided
MITSUBISHI : QnA series Provided
MITSUBISHI : ACPU Port Provided
MITSUBISHI : FX series Depends on the model
MITSUBISHI : QnACPU Port Provided
MITSUBISHI : QnHCPU Port (A) Provided
MITSUBISHI : QnHCPU Port (Q) Provided
MITSUBISHI : FX series(A prt) Provided
MITSUBISHI : FX2N series Depends on the model
MITSUBISHI : FX1S series Provided
OMRON : SYSMAC C Depends on the model
OMRON : SYSMAC CV Provided
OMRON : SYSMAC CS1 Provided
SHARP : JW series Provided
SHARP : JW100/70H COM Port Provided
SHARP : JW20 COM Port Provided
HITACHI : HIDIC-H Provided
HITACHI : HIDIC-S10/2 alpha Not provided
HITACHI : HIDIC-S10/ABS Not provided
MATSUSHITA : MEWNET Depends on the model
YOKOGAWA : FA500 Provided
YOKOGAWA : FA-M3 Provided
YOKOGAWA : FA-M3R Provided
YASKAWA : Memobus Depends on the model
YASKAWA : CP9200SH/MP900 Not provided
TOYOPUC Provided
FUJI : MICREX-F series Provided
FUJI : MICREX-F series ZM70 Provided
FUJI : FLEX-PC series Provided
FUJI : FLEX-PC CPU Provided
FUJI : FLEX-PC COM Provided
FUJI : FLEX-PC(T) Provided
FUJI : FLEX-PC CPU(T) Provided
FUJI : MICREX-F T link ZM70 Provided

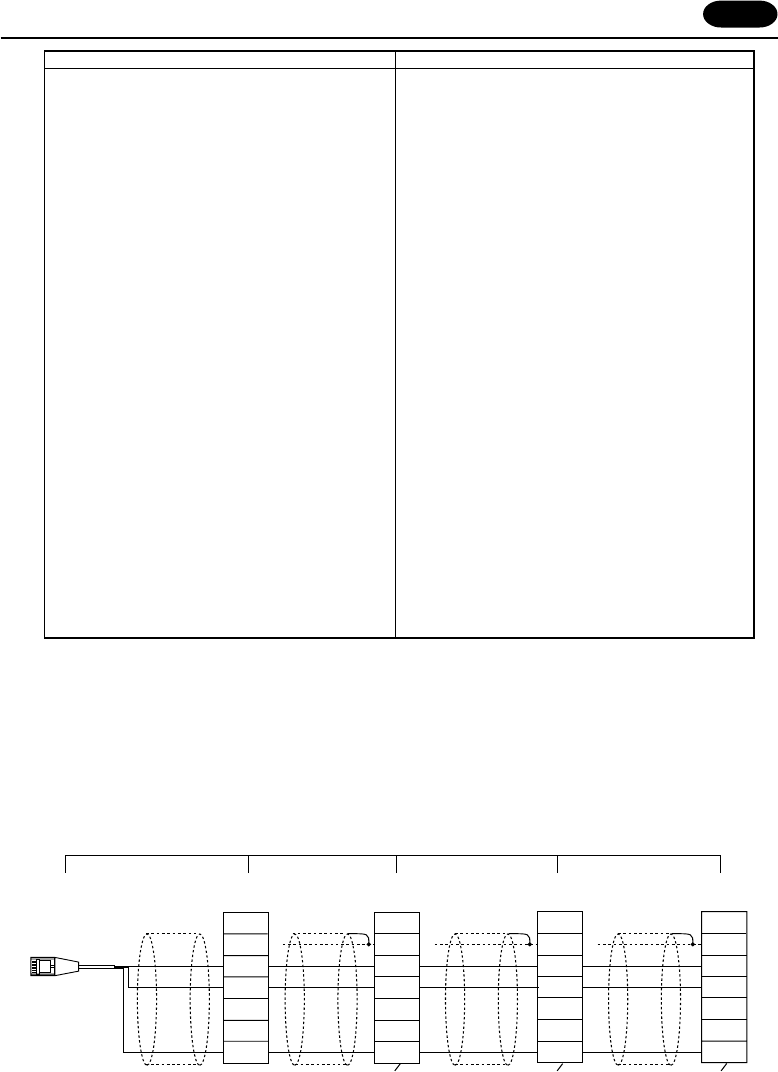

Example for wiring between ZM-
**
Use the terminal converter (ZM-1TC), the optional equipment made by Sharp Corporation.
See Multi-link 2 instruction manual for further details.
* Wire the shielded FG only at the one of both sides so that they are not connected.
• When the ZM-1TC terminal converter is used.
Set the dip switch (SW1) of ZM-1TC as 2-wire connection.
(b) (c) (d) (e)
Signal
FG
+SD
-SD
+RD
-RD
SG
SG
SG
ZM-** slave
CN1+TC485
ZM-** slave
CN1+TC485
ZM-** slave
CN1+TC485
Terminal block
prepared by user
ZM-** master
MJ1/2
Terminal resistor
(OFF)
Terminal resistor
(OFF)
Signal
+
-
+
-
Signal
FG
+SD
-SD
+RD
-RD
SG
Terminal resistor
(ON)
Terminal resistor
(ON)
Signal
FG
+SD
-SD
+RD
-RD
SG
• When the ZM-1TC terminal converter is not used.
Short-circuit between +RD and +SD, and -RD and -SD.
