Wiring
RS-232C
Wiring Diagram 1
Wiring Diagram 2
ZM-
**
(CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
TXD
PC
D-sub 25pin(Male: )
RXD
GND
2
3
7
SG
2
1
3
4
5
7
ZM-
**
(CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
TXD
PC
D-sub 25pin(Male: )
RXD
2
3
4
SG
2
1
3
4
5
7
GND
5
7
6ES5 734-1BD20
S5-95U

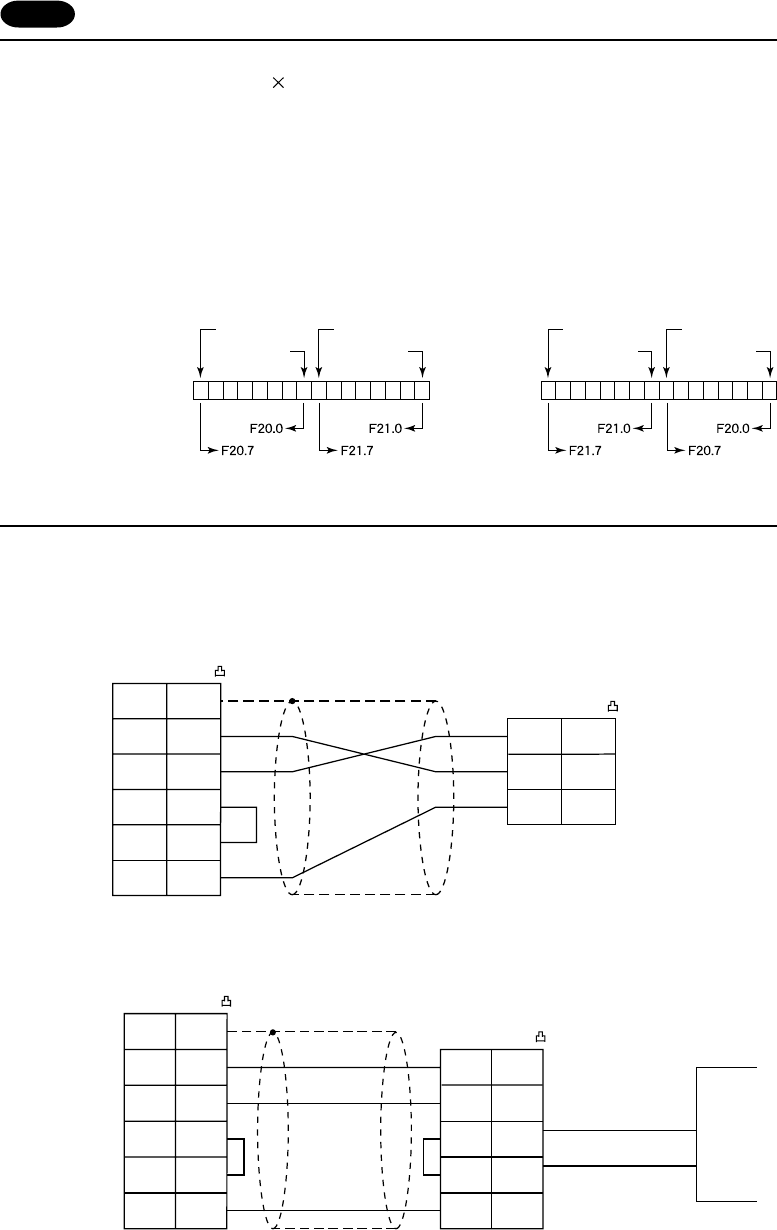

The following is a diagram to show the wiring of the cable which connects ZM-
**
to PC.
* Use twist shielded cables.
* Use twist shielded cables.
2 SIEMENS PC • 1
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
F0000210
F0000217
Memory setting
of ZM-41/70 (or ZM-30)
Memories to be accessed
to PC by ZM-41/70 (or ZM-30)
F0000200
F0000207
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
F0000210
F0000217
F0000200
F0000207
Memory setting
of ZM-
*
2
Memories
to be accessed
to PC by ZM-
*
2
Set the memory to the extent of the memory range of each PC model.
In case of using the [Bit Write] memory as the bit device of the [Output Action] is [Mo-
mentary W], the other bits will be cleared when the bit memory is output, because the [Bit
Write] will be output by one word (refer to P5-10, reference 14-7 of ZM-71SE Instruction
Manual). Use [TYPE] number to assign indirect memory for macro programs.
Notes on converting the data file of ZM-41/70 (or ZM-30) into the ZM-** data file
When converting the data file of ZM-41/70 (or ZM-30) into the V6 data file, the PLC type is automatically
selected as "SIEMENS S5 ZM70."
In ZM-41/70 (or ZM-30), the order of bytes in I (input relay), Q (output relay) and F (internal relay) is
reversed.
