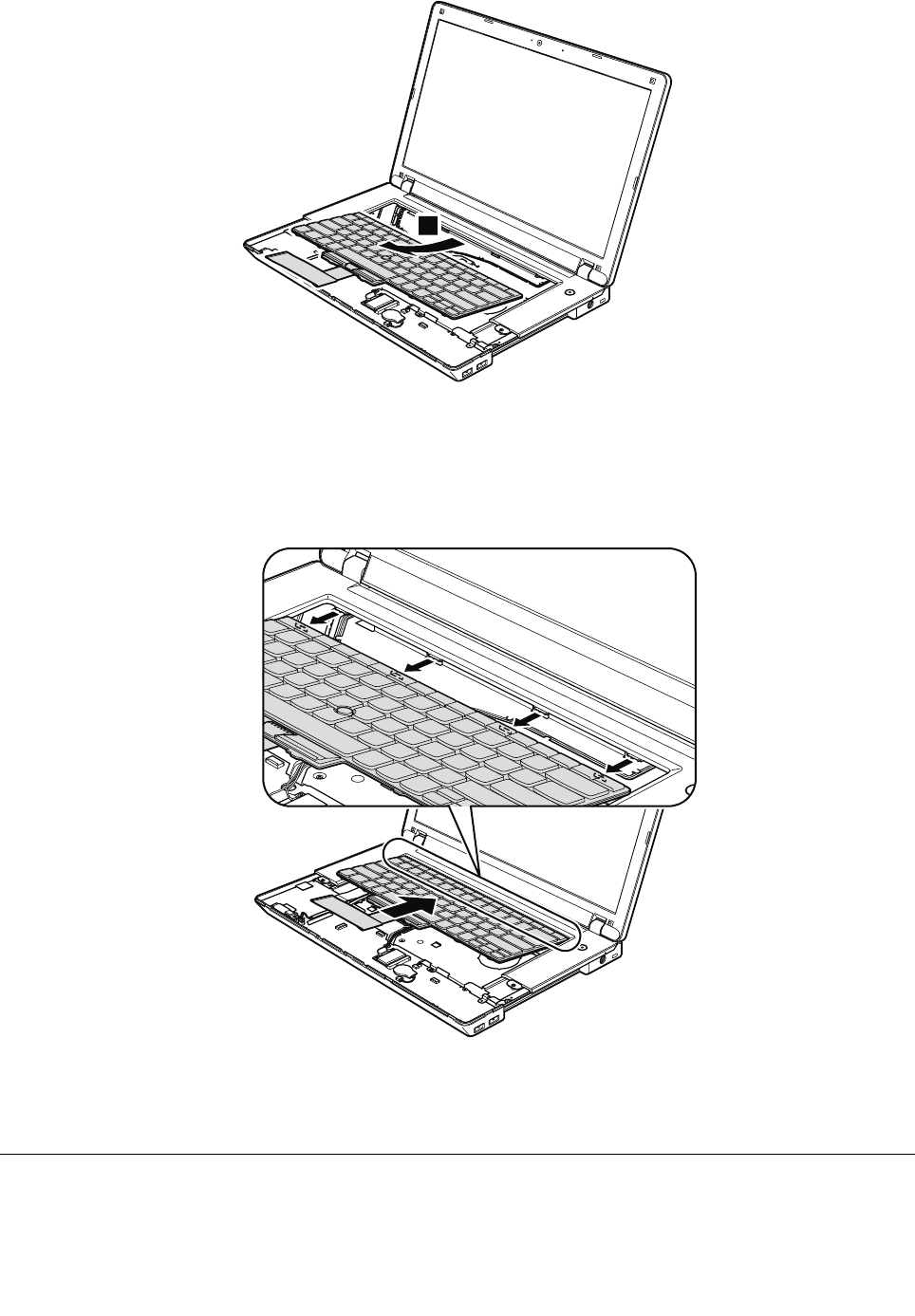

Installationofthekeyboard

Wheninstallingthekeyboard,doasfollows:

1.Attachtheconnectors.

2.Attachthekeyboardsothatthekeyboardedgesareundertheframeasshowninthisgure.

3.Tomakesurethatthefrontsideofthekeyboardishousedrmly,gentlypressthekeyswithyour

thumbsandtrytoslidethekeyboardtowardyou.

4.Securethekeyboardbytighteningthescrewsfromthebottomsideofthecomputer.

1140Keyboardbezel

Foraccess,removetheseFRUsinorder:

•“1010Batterypack”onpage58

Chapter8.RemovingorreplacingaFRU77
