MX-M182 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-6

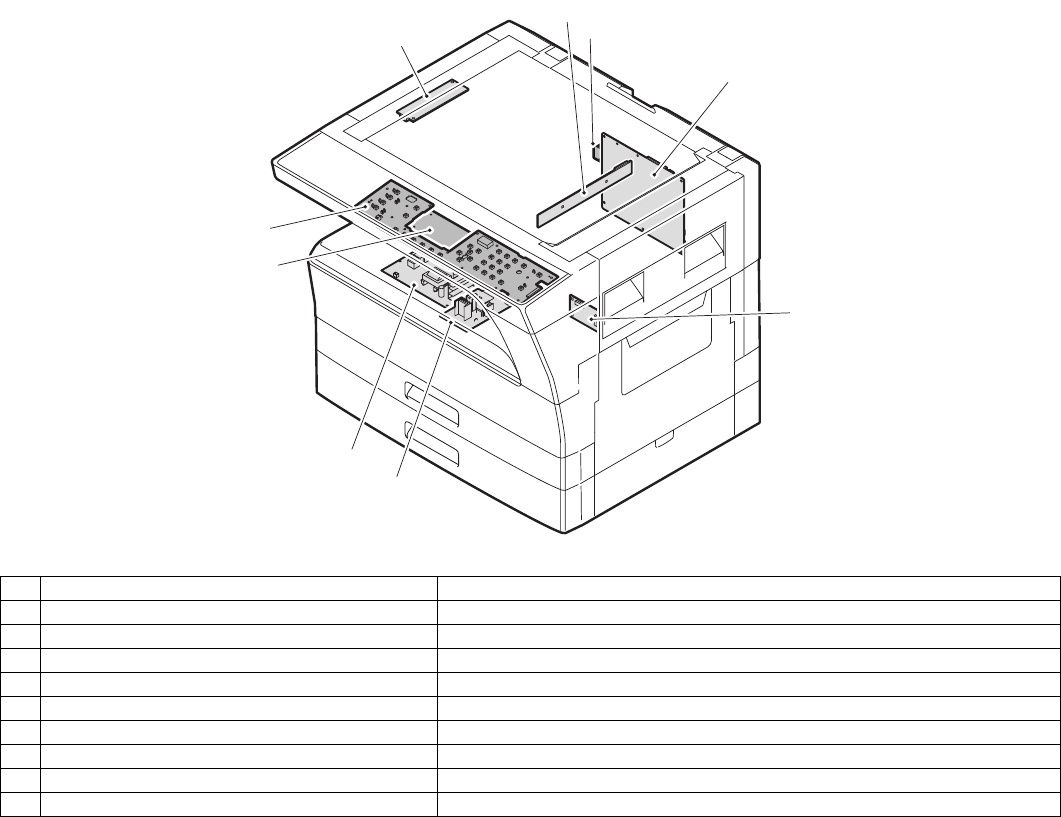

6. PWB unit

No. Name Function operation

1 Copy lamp Inverter PWB Copy lamp control

2 CCD sensor PWB Image scanning

3 Main control PWB Main control PWB

4 2nd tray PWB 2nd tray control

5 High voltage PWB High voltage control

6 Power PWB AC power input/DC power control

7 Operation main PWB Operation panel input/Display, operation panel section control

8 USB I/F PWB Connect a USB device

9 LCD OPE PWB Display and operation panel control

1

7

9

6

5

3

4

2

8
