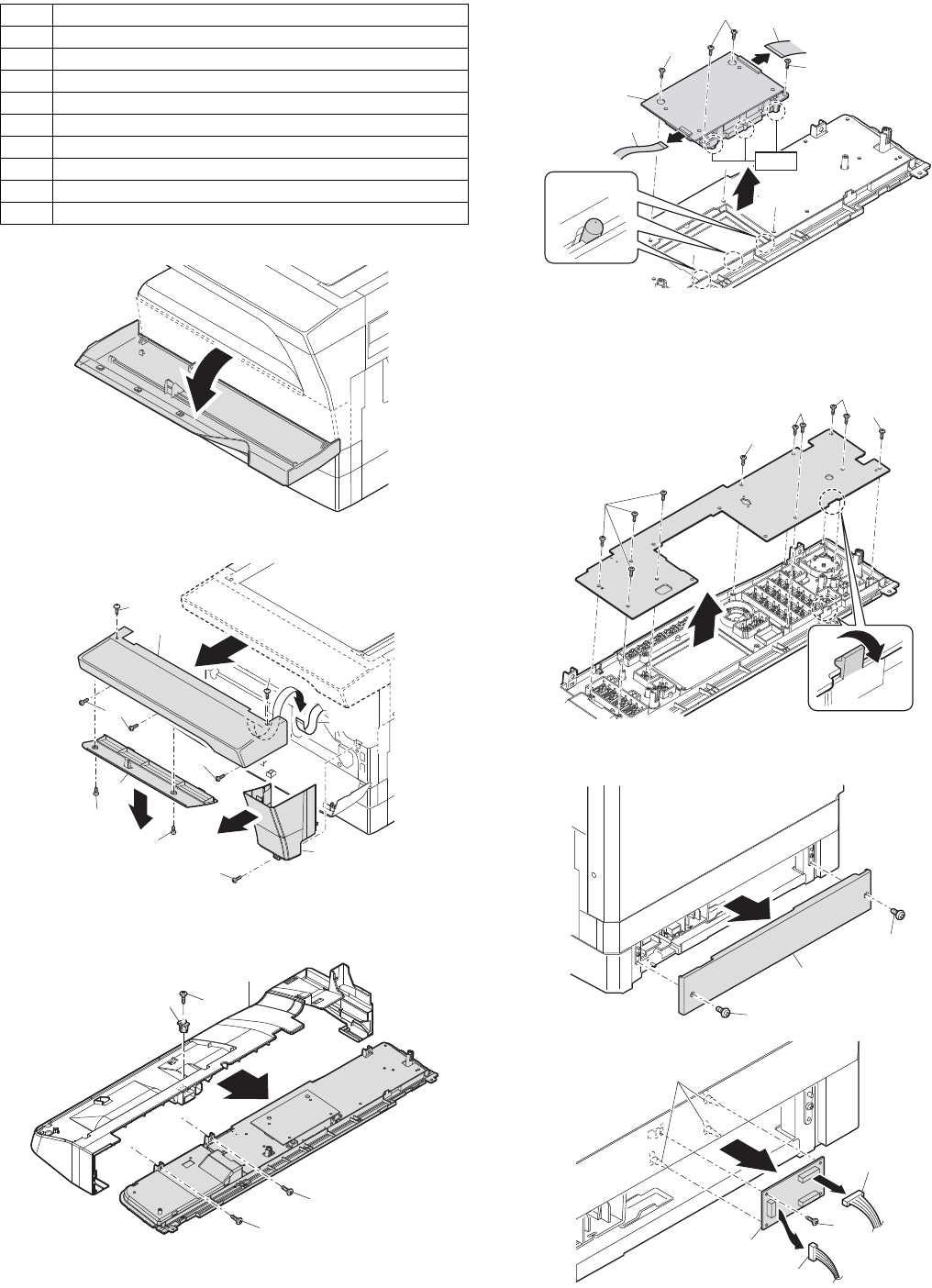

MX-M182 DISASSEMBLY AND ASSEMBLY 10-17

13.Others

A. Operation P.W.B.

[Note for installation]

When installing, engage the hole of the LCD box unit with the

positioning pin.

B. Tray interface P.W.B.

No. Contents

A Operation P.W.B.

B Tray interface P.W.B.

C 2nd tray paper entry sensor / Paper empty sensor

D 2nd tray transport clutch

E 2nd tray transport roller

F 2nd tray paper feed clutch

G Main motor

H Paper entry sensor

I Paper empty sensor

(3)

(4)

(3)

(1)

(2)

(5)

(5)

(5)

(6)

(7)

(5)

(2)

(1)

(1)

(3)

(1)

positioning pin

hole

(3)

(2)

(2)

(1)

(1)

(2)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(2)

(2)

(2)

(1)

(1)

(3)
