MX-M182 DISASSEMBLY AND ASSEMBLY 10-12

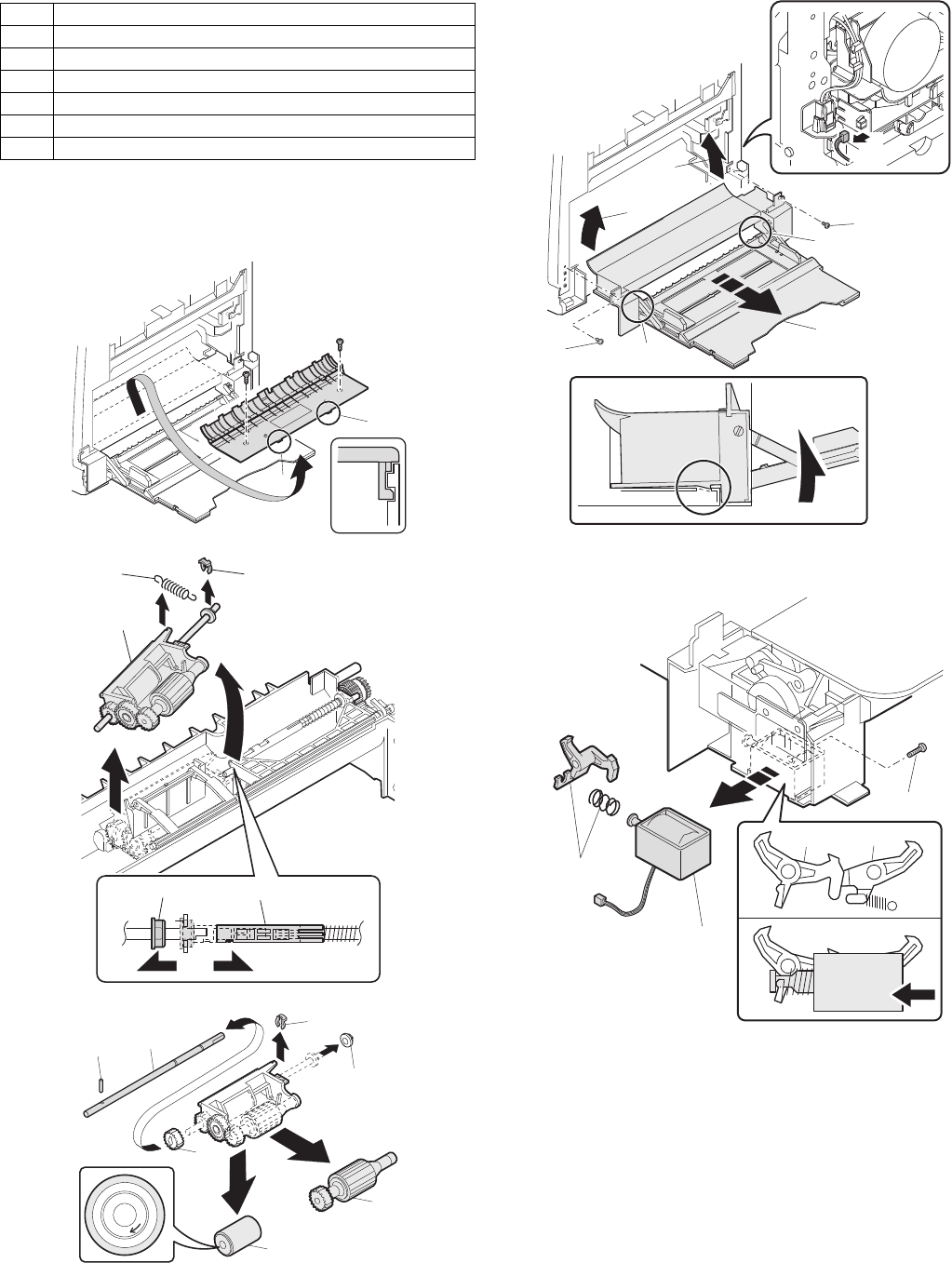

9. Bypass tray section

A. Bypass tray transport roller/Bypass tray paper feed

roller

Note:Push the lever at the right edge of the multi frame cover to the right

upper side and remove it.

Installation: Be careful of the installing direction of the bypass tray

transport roller (6)

B. Bypass tray paper feed

C. Bypass tray solenoid

When installing the solenoid, shift it in the arrow direction and install.

No. Content

A Bypass tray transport roller/Bypass tray paper feed roller

B Bypass tray paper feed

C Bypass tray solenoid

D Bypass tray transport clutch

E Bypass tray paper feed clutch

F Pressure plate unit

(3)

(4)

(5)

(2)

(1)

(2)

(3)

(4)

(5)

(1)

(6)

(7)

(2)

(3)

(4)

(5)

(1)

(A)

(1)

(2)

(B)
