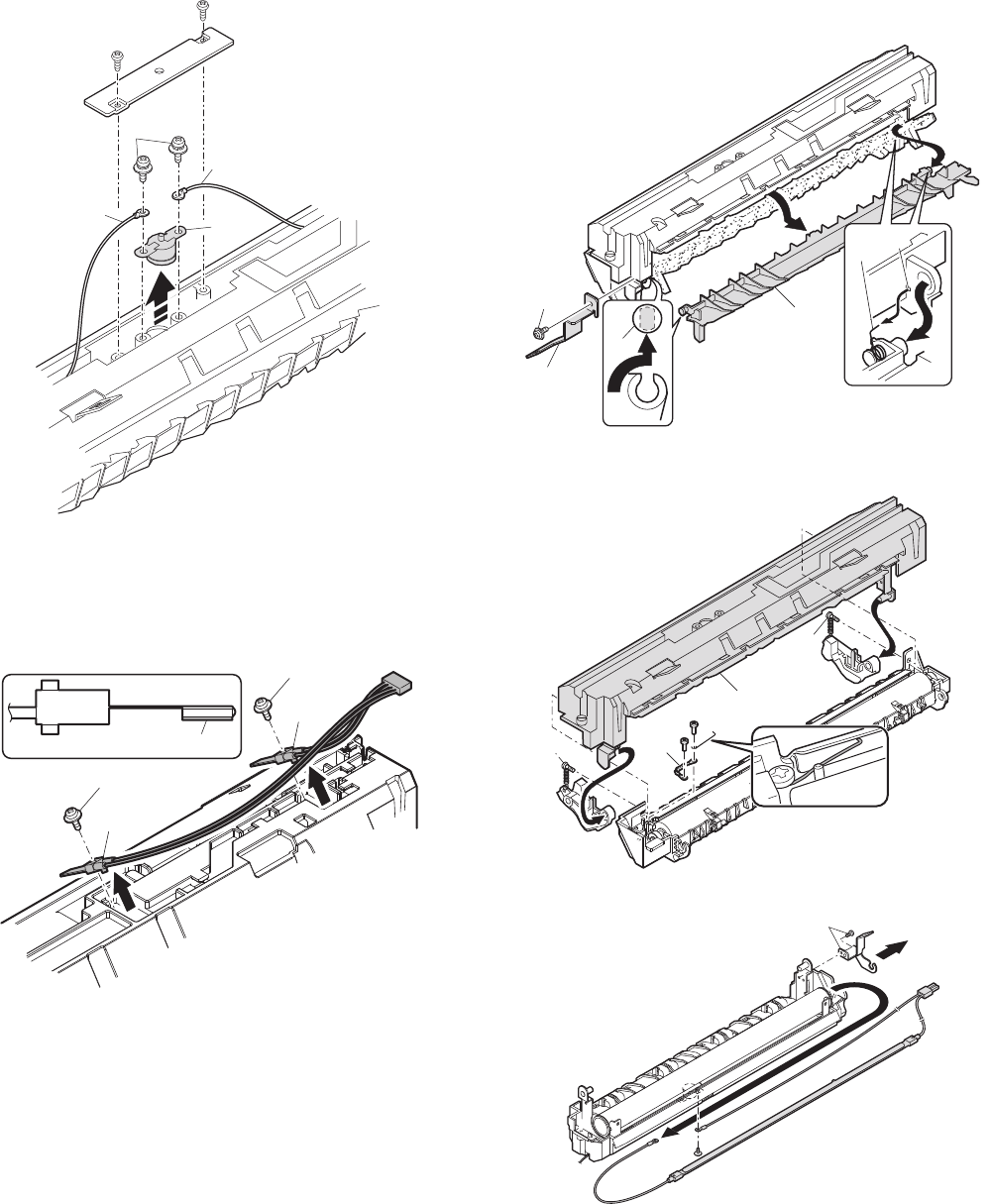

MX-M182 DISASSEMBLY AND ASSEMBLY 10-5

B. Thermostat

C. Thermistor

Installation: Install in direction that the sponge side (A) of the thermistor

comes in contact with heat roller.



Check that the thermistor is in contact with the upper heat

roller.

D. Heater lamp

Assembly: Insert the spring (A) into the hole (B) in the fusing frame.

Assembly: Put the fusing harness (A) on the heater lamp (B) as shown

in the figure and fix them together.<R>Place the fusing

harness inside the rib (C).
