nach Wahl des
Herstellers
manufacturer’s
choice
suivant les disponibilités
du fabricant
Ungespannt
Unstressed
A l’état libre

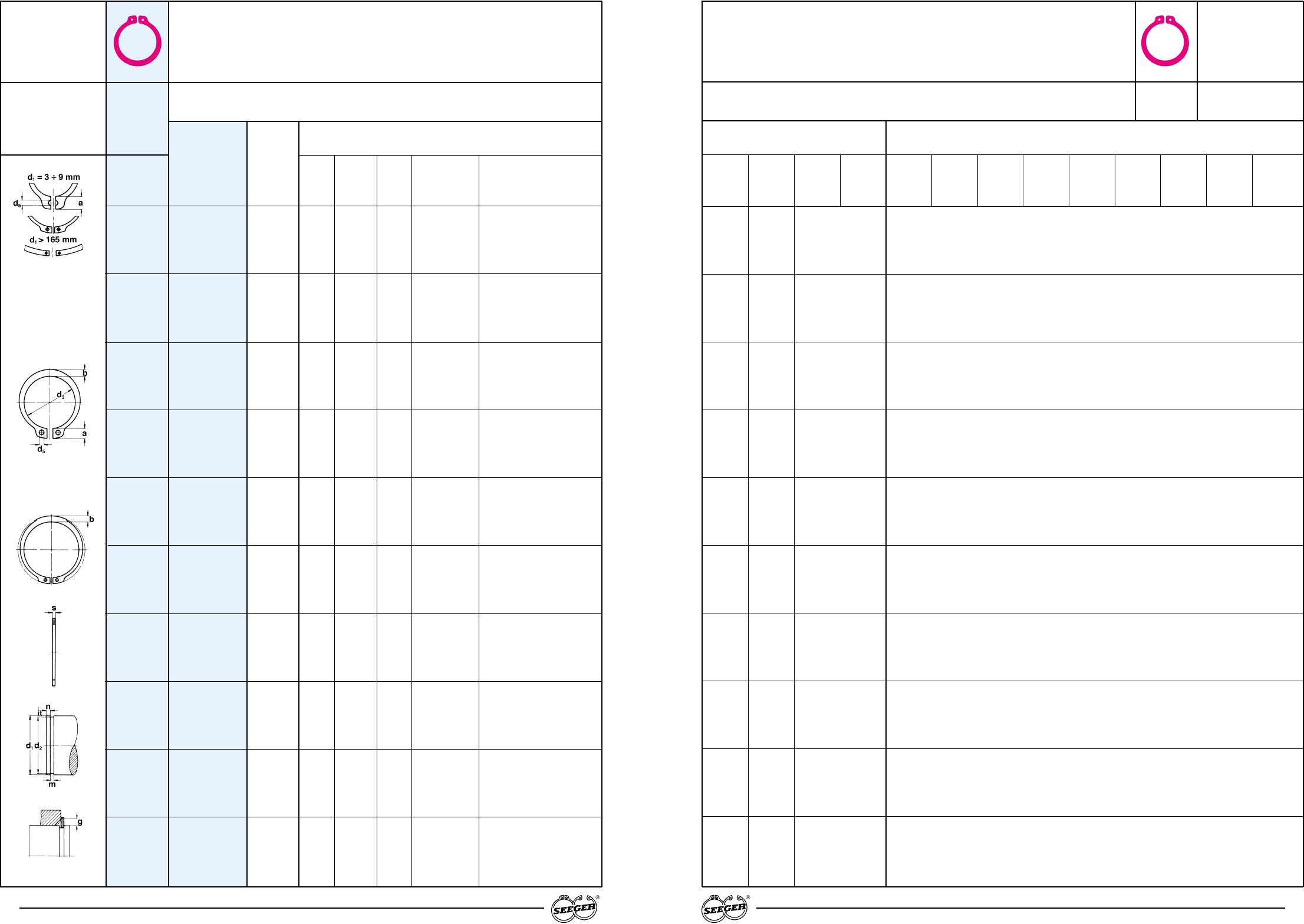

Seeger-Ringe für Wellen
Seeger-Rings for shafts
Segments extérieurs Seeger
28
10
Maßliste Standard
Data chart Standard
Table Exécution
dimensionnelle standard
Nennmaß
Nominal
dimension
Dimension
nominale
Bezeichnung
Designation
Désignation
Bestell-Nummer
Order number
Référence
de commande
A 255 – A 460 / DIN 471
Ring, Ring, Anneau
Seeger-Ringe für Wellen
Seeger-Rings for shafts
Segments extérieurs Seeger
29
10
Nut · Groove · Gorge Ergänzende Daten · Supplementary data · Données complémentaires
Toleranz n
abl.
Zange
Tolerance m* F
N
F
R
F
Rg
A
N
K x1000 Pliers
d
2
* Tolérance min. t n kN kN g kN mm
2
kN · mm (1/min) Pince
* Siehe Abschnitt 8, Seite128 · * See section 8, page 128 · * Voir paragraphe 8, page 128
A 255 – A 460 / DIN 471
A 255 A255–WAS 255 5,00 – 0,12 240,0 +0,72 – 1,70 16,2 16,0 5,0 348,000 247,0 – 0,72 5,15 4,00 12,0 525,0 557,00 6,0 55,70 3150,0
A 257 A255–WAS 257 5,00 – 0,12 240,0 +0,72 – 1,70 16,2 16,0 5,0 348,000 249,0 – 0,72 5,15 4,00 12,0 529,0 551,00 6,0 55,20 3175,0
A 258 A255–WAS 258 5,00 – 0,12 240,0 +0,72 – 1,70 16,2 16,0 5,0 348,000 250,0 – 0,72 5,15 4,00 12,0 531,0 550,00 6,0 55,10 3190,0
A 260 A260–WAS 260 5,00 – 0,12 245,0 +0,72 – 1,70 16,2 16,0 5,0 355,000 252,0 – 0,81 5,15 4,00 12,0 535,0 540,00 6,0 54,60 3215,0
A 262 A260–WAS 262 5,00 – 0,12 245,0 +0,72 – 1,70 16,2 16,0 5,0 355,000 254,0 – 0,81 5,15 4,00 12,0 540,0 542,00 6,0 54,40 3240,0
A 265 A265–WAS 265 5,00 – 0,12 250,0 +0,72 – 1,70 16,2 16,0 5,0 370,000 257,0 – 0,81 5,15 4,00 12,0 546,0 536,00 6,0 53,70 3280,0
A 267 A265–WAS 267 5,00 – 0,12 250,0 +0,72 – 1,70 16,2 16,0 5,0 370,000 259,0 – 0,81 5,15 4,00 12,0 550,0 532,00 6,0 53,30 3300,0
A 268 A265–WAS 268 5,00 – 0,12 250,0 +0,72 – 1,70 16,2 16,0 5,0 370,000 260,0 – 0,81 5,15 4,00 12,0 553,0 529,00 6,0 53,00 3320,0
A 270 A270–WAS 270 5,00 – 0,12 255,0 +0,81 – 2,00 16,2 16,0 5,0 375,000 262,0 – 0,81 5,15 4,00 12,0 556,0 525,00 6,0 52,50 3340,0
A 272 A270–WAS 272 5,00 – 0,12 255,0 +0,81 – 2,00 16,2 16,0 5,0 375,000 264,0 – 0,81 5,15 4,00 12,0 560,0 522,00 6,0 52,00 3365,0
A 275 A275–WAS 275 5,00 – 0,12 260,0 +0,81 – 2,00 16,2 16,0 5,0 390,000 267,0 – 0,81 5,15 4,00 12,0 566,0 516,00 6,0 51,00 3400,0
A 277 A275–WAS 277 5,00 – 0,12 260,0 +0,81 – 2,00 16,2 16,0 5,0 390,000 269,0 – 0,81 5,15 4,00 12,0 571,0 513,00 6,0 51,00 3430,0
A 278 A275–WAS 278 5,00 – 0,12 260,0 +0,81 – 2,00 16,2 16,0 5,0 390,000 270,0 – 0,81 5,15 4,00 12,0 574,0 510,00 6,0 51,00 3445,0
A 280 A280–WAS 280 5,00 – 0,12 265,0 +0,81 – 2,00 16,2 16,0 5,0 398,000 272,0 – 0,81 5,15 4,00 12,0 576,0 508,00 6,0 50,00 3460,0
A 282 A280–WAS 282 5,00 – 0,12 265,0 +0,81 – 2,00 16,2 16,0 5,0 398,000 274,0 – 0,81 5,15 4,00 12,0 580,0 503,00 6,0 50,00 3485,0
A 285 A285–WAS 285 5,00 – 0,12 270,0 +0,81 – 2,00 16,2 16,0 5,0 410,000 277,0 – 0,81 5,15 4,00 12,0 587,0 499,00 6,0 50,00 3525,0
A 287 A285–WAS 287 5,00 – 0,12 270,0 +0,81 – 2,00 16,2 16,0 5,0 410,000 279,0 – 0,81 5,15 4,00 12,0 591,0 494,00 6,0 49,00 3550,0
A 288 A285–WAS 288 5,00 – 0,12 270,0 +0,81 – 2,00 16,2 16,0 5,0 410,000 280,0 – 0,81 5,15 4,00 12,0 594,0 493,00 6,0 49,00 3565,0
A 290 A290–WAS 290 5,00 – 0,12 275,0 +0,81 – 2,00 16,2 16,0 5,0 418,000 282,0 – 0,81 5,15 4,00 12,0 599,0 490,00 6,0 49,00 3595,0
A 292 A290–WAS 292 5,00 – 0,12 275,0 +0,81 – 2,00 16,2 16,0 5,0 418,000 284,0 – 0,81 5,15 4,00 12,0 603,0 487,00 6,0 48,00 3620,0
A 295 A295–WAS 295 5,00 – 0,12 280,0 +0,81 – 2,00 16,2 16,0 5,0 430,000 287,0 – 0,81 5,15 4,00 12,0 609,0 481,00 6,0 48,00 3655,0
A 297 A295–WAS 297 5,00 – 0,12 280,0 +0,81 – 2,00 16,2 16,0 5,0 430,000 289,0 – 0,81 5,15 4,00 12,0 613,0 479,00 6,0 48,00 3680,0
A 298 A295–WAS 298 5,00 – 0,12 280,0 +0,81 – 2,00 16,2 16,0 5,0 430,000 290,0 – 0,81 5,15 4,00 12,0 615,0 476,00 6,0 47,00 3695,0
A 300 A300–WAS 300 5,00 – 0,12 285,0 +0,81 – 2,00 16,2 16,0 5,0 440,000 292,0 – 0,81 5,15 4,00 12,0 619,0 475,00 6,0 47,00 3715,0
A 305 A305–XLS 305 6,00 – 0,15 288,0 + 0,81 – 2,00 20,0 6,0 738,000 295,0 – 0,81 6,20 5,00 15,0 785,0 1036,00 7,0 89,00 4712,0
A 310 A310–XLS 310 6,00 – 0,15 293,0 + 0,81 – 2,00 20,0 6,0 750,000 300,0 – 0,81 6,20 5,00 15,0 796,0 1016,00 7,0 87,00 4780,0
A 315 A315–XLS 315 6,00 – 0,15 298,0 + 0,81 – 2,00 20,0 6,0 760,000 305,0 – 0,81 6,20 5,00 15,0 811,0 1007,00 7,0 86,00 4869,0
A 320 A320–XLS 320 6,00 – 0,15 303,0 + 0,81 – 2,00 20,0 6,0 770,000 310,0 – 0,81 6,20 5,00 15,0 825,0 988,00 7,0 85,00 4950,0
A 325 A325–XLS 325 6,00 – 0,15 308,0 + 0,81 – 2,00 20,0 6,0 787,000 315,0 – 0,81 6,20 5,00 15,0 837,0 975,00 7,0 83,00 5027,0
A 330 A330–XLS 330 6,00 – 0,15 313,0 + 0,81 – 2,00 20,0 6,0 800,000 320,0 – 0,89 6,20 5,00 15,0 850,0 958,00 7,0 82,00 5100,0
A 335 A335–XLS 335 6,00 – 0,15 318,0 + 0,90 – 2,00 20,0 6,0 826,000 325,0 – 0,89 6,20 5,00 15,0 864,0 945,00 7,0 81,00 5184,0
A 340 A340–XLS 340 6,00 – 0,15 323,0 + 0,90 – 2,00 20,0 6,0 840,000 330,0 – 0,89 6,20 5,00 15,0 876,0 932,00 7,0 80,00 5260,0
A 345 A345–XLS 345 6,00 – 0,15 328,0 + 0,90 – 2,00 20,0 6,0 845,000 335,0 – 0,89 6,20 5,00 15,0 890,0 917,00 7,0 79,00 5341,0
A 350 A350–XLS 350 6,00 – 0,15 333,0 + 0,90 – 2,00 20,0 6,0 850,000 340,0 – 0,89 6,20 5,00 15,0 903,0 906,00 7,0 77,00 5420,0
A 355 A355–XLS 355 6,00 – 0,15 338,0 + 0,90 – 2,00 20,0 6,0 865,000 345,0 – 0,89 6,20 5,00 15,0 916,0 894,00 7,0 76,00 5498,0
A 360 A360–XLS 360 6,00 – 0,15 343,0 + 0,90 – 2,00 20,0 6,0 880,000 350,0 – 0,89 6,20 5,00 15,0 928,0 880,00 7,0 75,00 5570,0
A 365 A365–XLS 365 6,00 – 0,15 348,0 + 0,90 – 2,00 20,0 6,0 885,000 355,0 – 0,89 6,20 5,00 15,0 942,0 868,00 7,0 74,00 5655,0
A 370 A370–XLS 370 6,00 – 0,15 353,0 + 0,90 – 2,00 20,0 6,0 890,000 360,0 – 0,89 6,20 5,00 15,0 955,0 856,00 7,0 73,00 5730,0
A 375 A375–XLS 375 6,00 – 0,15 358,0 + 0,90 – 2,00 20,0 6,0 910,000 365,0 – 0,89 6,20 5,00 15,0 968,0 847,00 7,0 72,00 5812,0
A 380 A380–XLS 380 6,00 – 0,15 363,0 + 0,90 – 2,00 20,0 6,0 930,000 370,0 – 0,89 6,20 5,00 15,0 980,0 833,00 7,0 71,00 5880,0
A 385 A385–XLS 385 6,00 – 0,15 368,0 + 0,90 – 2,00 20,0 6,0 940,000 375,0 – 0,89 6,20 5,00 15,0 994,0 823,00 7,0 70,00 5969,0
A 390 A390–XLS 390 6,00 – 0,15 373,0 + 0,90 – 2,00 20,0 6,0 950,000 380,0 – 0,89 6,20 5,00 15,0 1008,0 814,00 7,0 70,00 6050,0
A 395 A395–XLS 395 6,00 – 0,15 378,0 + 0,90 – 2,00 20,0 6,0 990,000 385,0 – 0,89 6,20 5,00 15,0 1021,0 803,00 7,0 69,00 6126,0
A 400 A400–XLS 400 6,00 – 0,15 383,0 + 0,90 – 2,00 20,0 6,0 1040,000 390,0 – 0,89 6,20 5,00 15,0 1033,0 793,00 7,0 69,00 6200,0
A 410 A410–XLS 410 7,00 – 0,15 390,0 + 0,90 – 2,00 26,0 6,0 1320,000 398,0 – 0,89 7,20 6,00 18,0 1269,0 1616,00 7,0 139,00 7615,0
A 420 A420–XLS 420 7,00 – 0,15 400,0 + 0,90 – 2,00 26,0 6,0 1360,000 408,0 – 1,00 7,20 6,00 18,0 1300,0 1569,00 7,0 135,00 7803,0
A 430 A430–XLS 430 7,00 – 0,15 410,0 + 1,00 – 2,00 26,0 6,0 1390,000 418,0 – 1,00 7,20 6,00 18,0 1332,0 1540,00 7,0 132,00 7992,0
A 440 A440–XLS 440 7,00 – 0,15 420,0 + 1,00 – 2,00 26,0 6,0 1420,000 428,0 – 1,00 7,20 6,00 18,0 1363,0 1500,00 7,0 129,00 8181,0
A 450 A450–XLS 450 7,00 – 0,15 430,0 + 1,00 – 2,00 26,0 6,0 1450,000 438,0 – 1,00 7,20 6,00 18,0 1393,0 1472,00 7,0 126,00 8360,0
A 460 A460–XLS 460 7,00 – 0,15 440,0 + 1,00 – 2,00 26,0 6,0 1520,000 448,0 – 1,00 7,20 6,00 18,0 1426,0 1443,00 7,0 124,00 8557,0
1276,00 1,0 ZGA-6
1264,00 1,0 ZGA-6
1260,00 1,0 ZGA-6
1250,00 1,0 ZGA-6
1242,00 1,0 ZGA-6
1228,00 1,0 ZGA-6
1219,00 1,0 ZGA-6
1213,00 1,0 ZGA-6
1203,00 1,0 ZGA-6
1196,00 1,0 ZGA-6
1183,00 1,0 ZGA-6
1175,00 1,0 ZGA-6
1170,00 1,0 ZGA-6
1164,00 1,0 ZGA-6
1152,00 1,0 ZGA-6
1143,00 1,0 ZGA-6
1133,00 1,0 ZGA-6
1131,00 1,0 ZGA-6
1124,00 1,0 ZGA-6
1116,00 1,0 ZGA-6
1103,00 1,0 ZGA-6
1098,00 1,0 ZGA-6
1092,00 1,0 ZGA-6
1088,00 1,0 ZGA-6
2374,00 1,0 ZGA-6
2329,00 1,0 ZGA-6
2307,00 1,0 ZGA-6
2264,00 1,0 ZGA-6
2233,00 1,0 ZGA-6
2195,00 1,0 ZGA-6
2166,00 1,0 ZGA-6
2136,00 1,0 ZGA-6
2102,00 1,0 ZGA-6
2074,00 1,0 ZGA-6
2048,00 1,0 ZGA-6
2017,00 1,0 ZGA-6
1990,00 1,0 ZGA-6
1962,00 1,0 ZGA-6
1943,00 1,0 ZGA-6
1909,00 1,0 ZGA-6
1886,00 1,0 ZGA-6
1865,00 1,0 ZGA-6
1841,00 1,0 ZGA-6
1817,00 1,0 ZGA-6
3701,00 1,0 ZGA-7
3595,00 1,0 ZGA-7
3527,00 1,0 ZGA-7
3448,00 1,0 ZGA-7
3373,00 1,0 ZGA-7
3305,00 1,0 ZGA-7
Toleranz Toleranz Gew.
Tolerance Tolerance a b d
5
Weight
Tolérance Tolérance Masse
d
1
sd
3
max. ≈ min. kg/1000
