19
REPLACING SUPPLIES AND MAINTENANCE
3

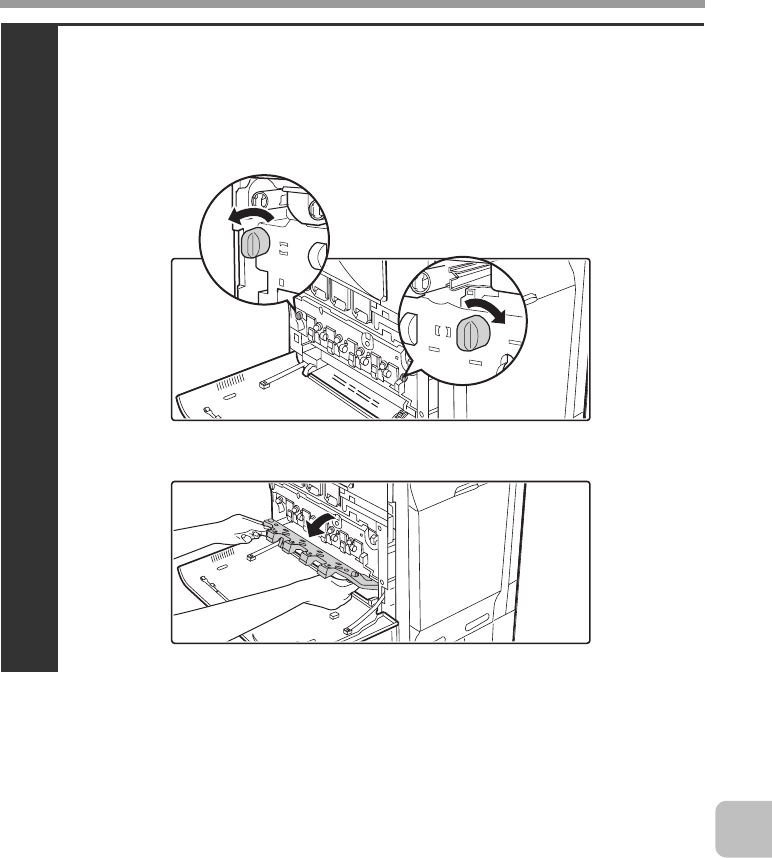

Open the main charger cover.
(1) Turn the main charger cover lock levers in the direction
of an arrow below.
When the lock levers are horizontal, the lock is released.
(2) Grasp the lock levers and tip the cover forward.
mxc401_us_saf.book 19 ページ ２００８年１０月１５日 水曜日 午前１１時５２分
