Appendix

ProtoMat 95s/II 75

9.10 Removing the electronics unit

The control unit must be isolated from the mechanism.

› First move the plotter head to the

TOOL CHANGE

position if the

circuit board plotter is still attached.

› Now use the traverse buttons to move the crossbar to the centre of

the machine base plate.

Note: The head must not be in either the tool change or Home

position and the limit switches must have been cleared.

› Switch off the circuit board plotter and disconnect the device from the

mains by removing the mains connector.

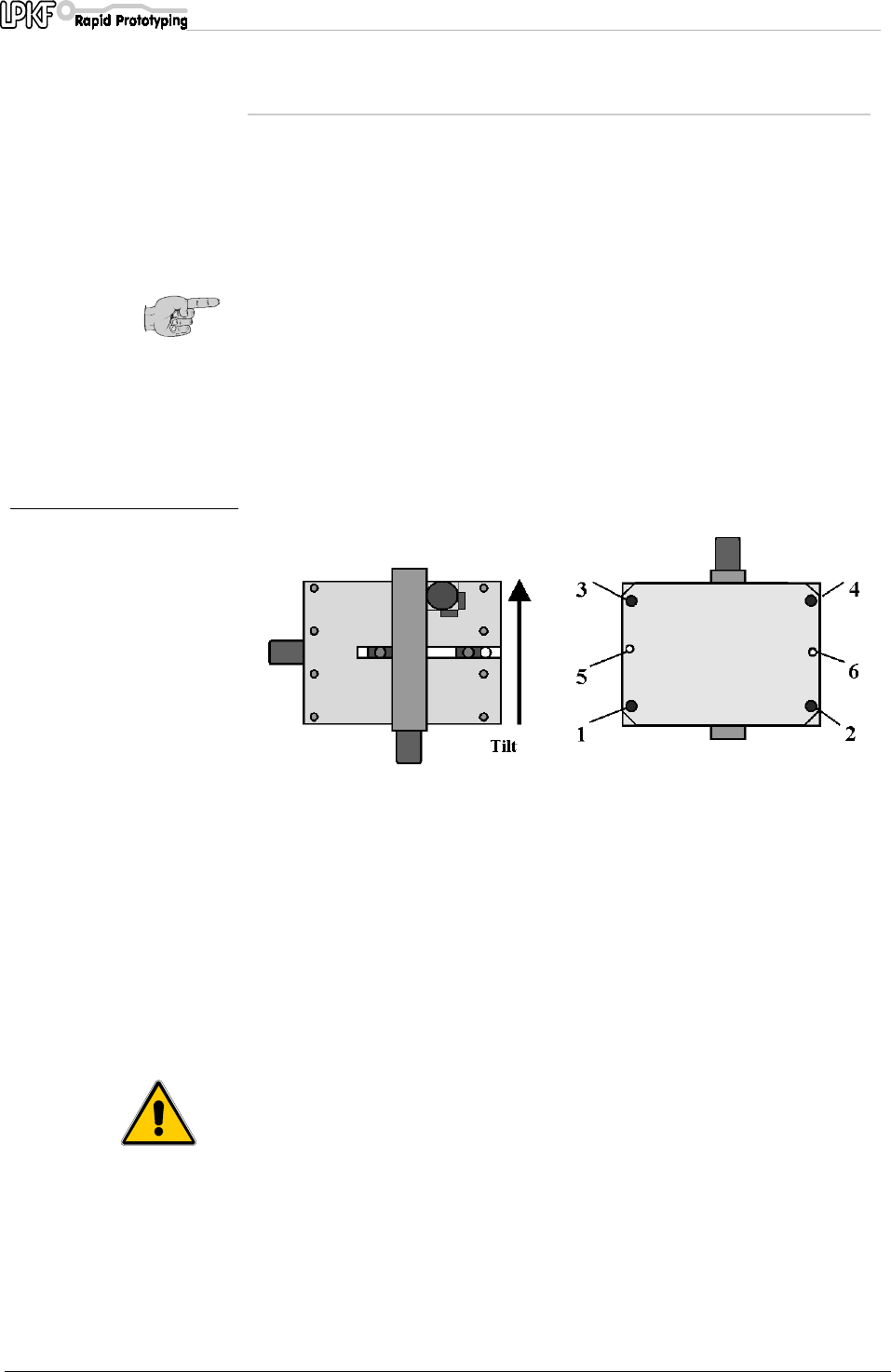

fig. 58: Position of the screws for

removing the electronics

unit from the

LPKF ProtoMat 95s/II

mechanism

› Undo the electric connections between the mechanism and the

control unit.

› Tilt the circuit board plotter towards the head.

› Undo feet 1, 2, 3, 4 and the Allen screws 5, 6 on the underside of the

machine.

› Remove the cover with the limit switches.

The control unit has now been released.

Danger! Check that the machine is disconnected from the mains by

removing the mains connector.
