Tools, material and accessories

44 ProtoMat 95s/II

6.0 Tools, material and accessories

6.1 Tools

Tools for the LPKF

ProtoMat

95s/II have a diameter of 1/8 inch and two

different lengths.

Tools used to machine the material surface (milling and engraving) are

36 mm long while tools used for drilling or contour milling are 38 mm

long.

The following tools are available:

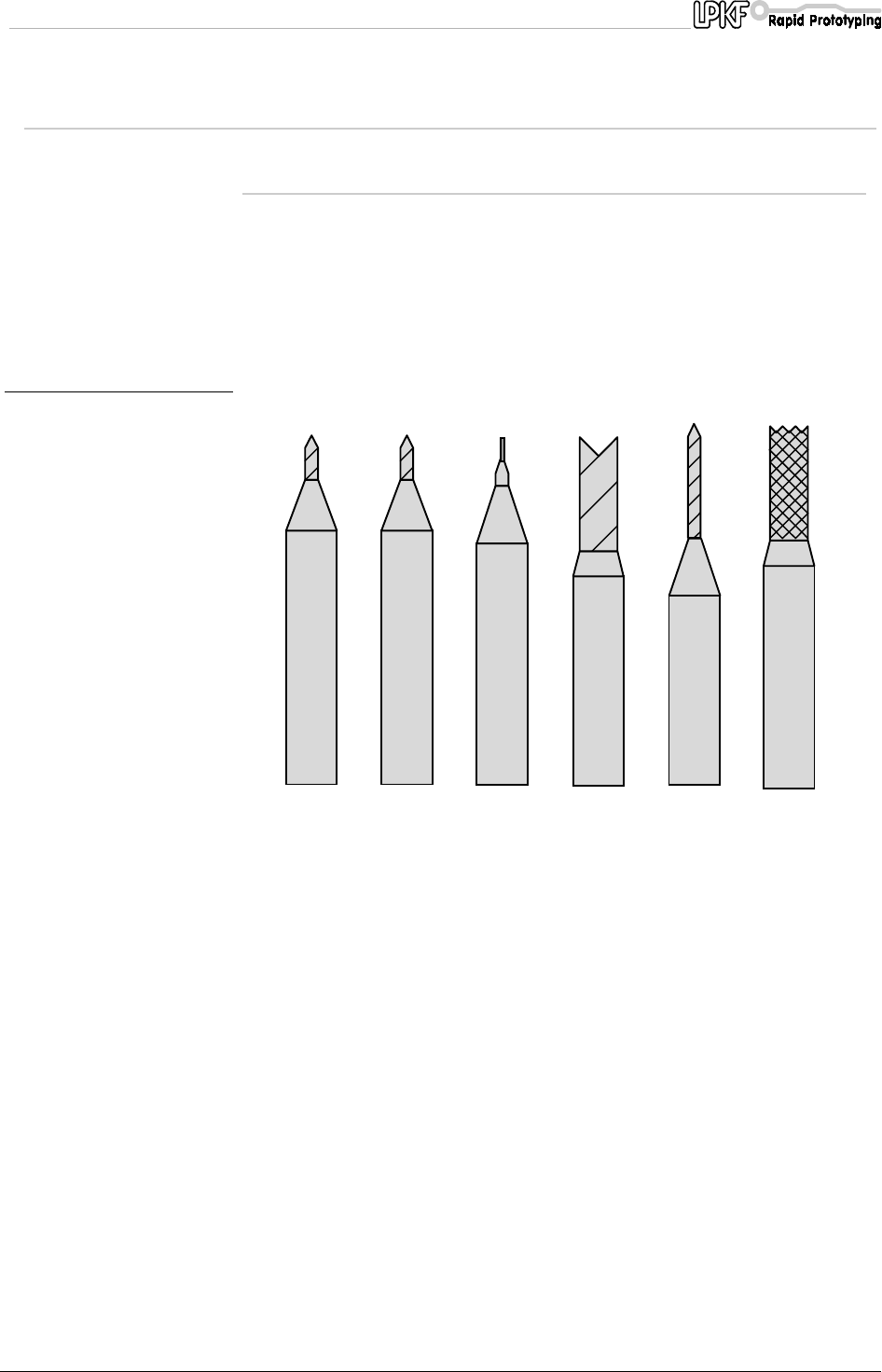

fig. 32: LPKF tools for circuit board

plotter

- LPKF Universal LPKF cutter for milling isolation channels and for engraving front plates

from 0.2 - 0.5 mm (depending on depth set). 36 mm long

- LPKF micro Cutter for milling 0.1 to 0.2 mm isolation channels (depending on depth set)

with a 17µm copper cladding on the base material. 36 mm long

- LPKF RF milling cutter for creating 0.25 mm or 0.4 mm wide

rectangular section isolation channels.

- Double-edged cutter (end-mill; 0.8 mm; 1 mm; 2 mm) for engraving front plates and for

engraving wider isolation channels. 36 mm long

- Twist drill of various diameters for drilling in base material. 38 mm long

- Contour cutter (1.0 mm; 2.0 mm) for milling out cut-outs in the base material. 38 mm long
