Appendix

64 ProtoMat 95s/II

9.0 Appendix

9.1 Maintenance

Note: Keep spindles clean. In rooms with a high air humidity, wipe

down with a lightly oiled cloth from time to time. Keep transport

spindles oiled and clean. Do not oil the bearings.

9.1.1 Working depth limiter

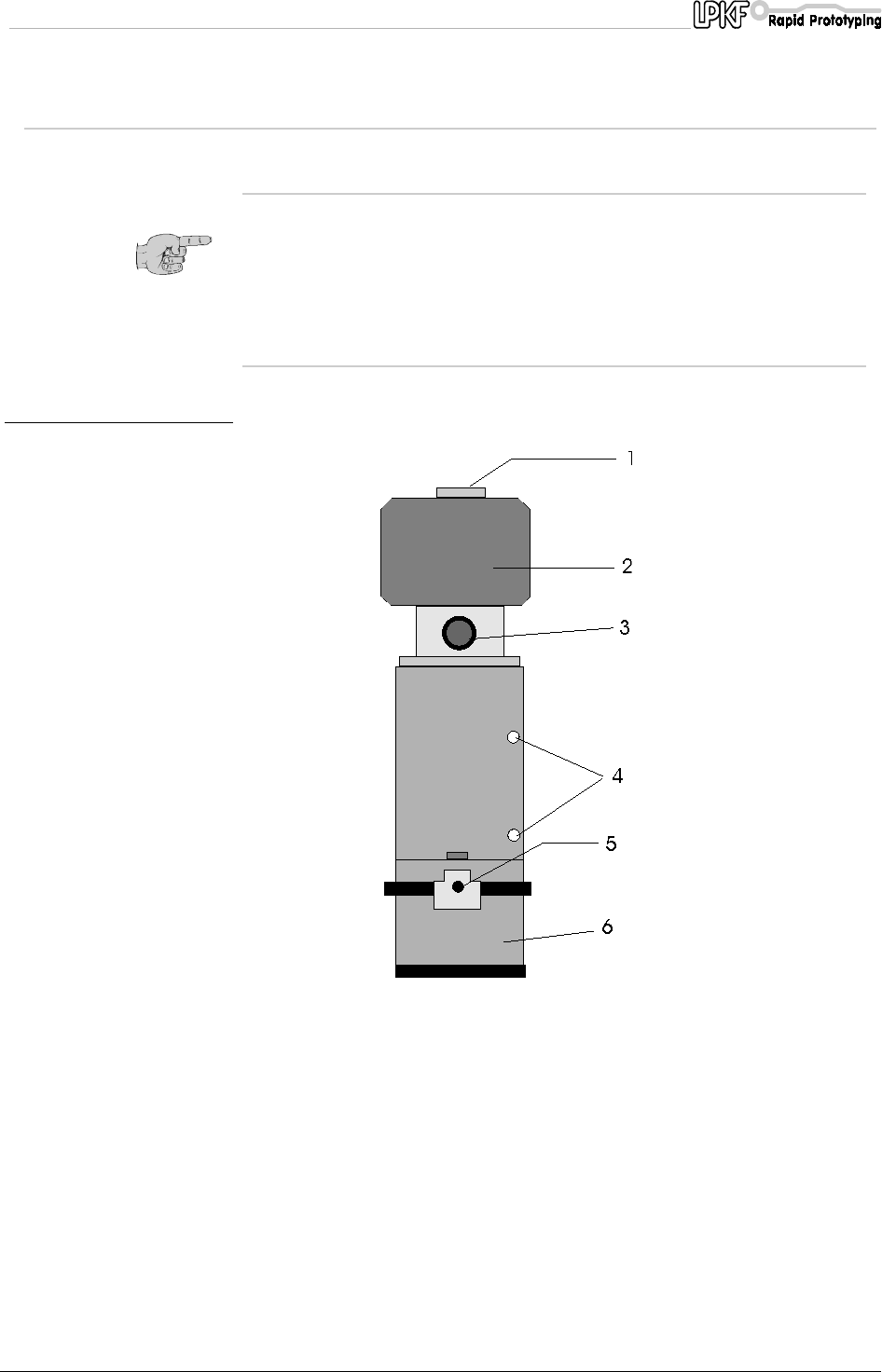

fig. 46:

Dismantle and clean the working depth limiter at regular intervals. To do

this, first switch off the machine. Then proceed as follows:

› Undo the pneumatic connection.(

)

› Remove the plug from the spindle (

› Undo the Allen screws in the retaining block (

› The spindle may be pulled up and out together with the pneumatic

cylinder (

). Twist the spindle from side to side if necessary.

› Remove the fixture (

› The working depth limiter (

) can now be pulled out to the side for

cleaning.
