Setup

36 ProtoMat 95s/II

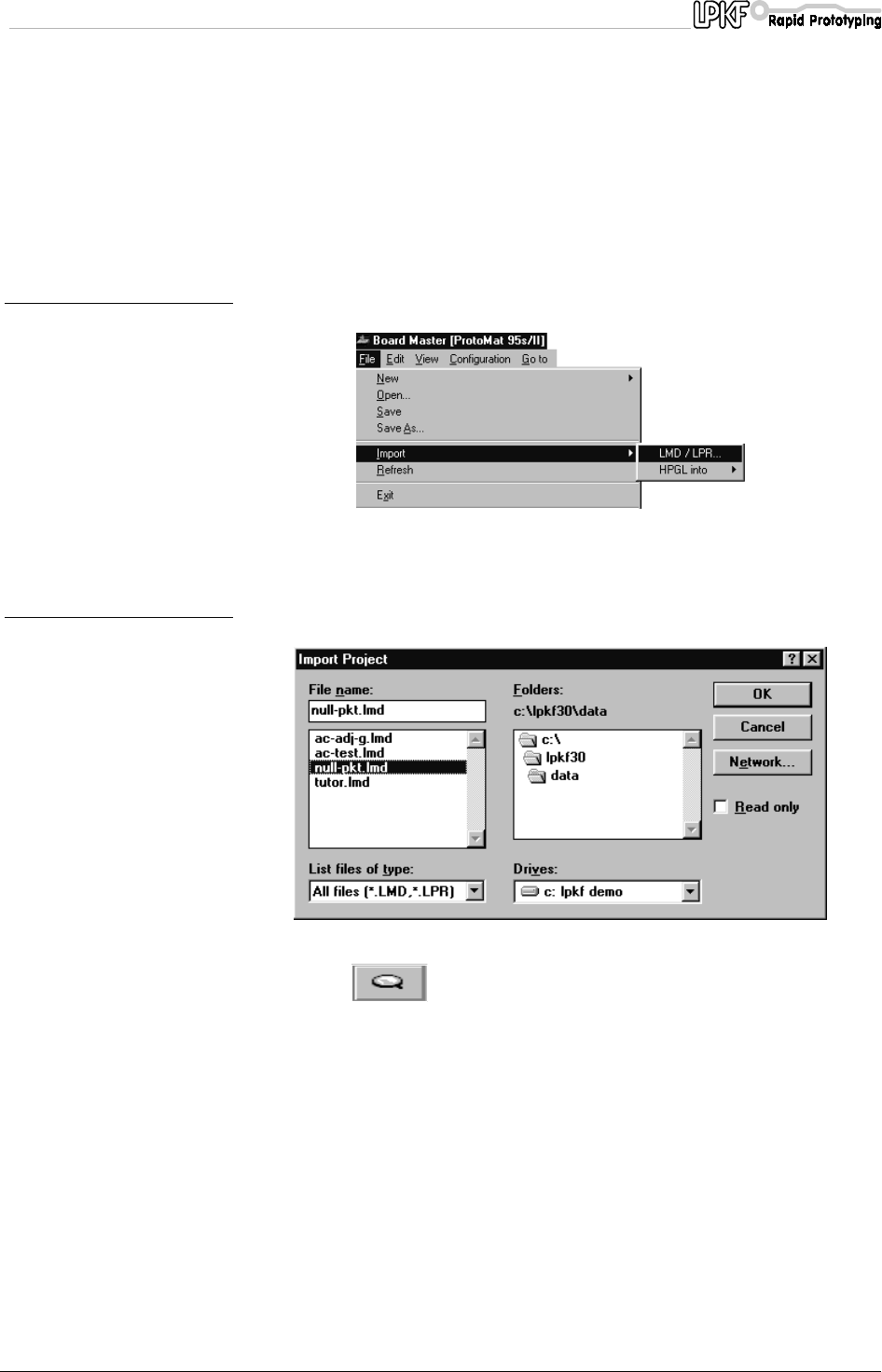

Carry out the following steps:

› Make registration holes in double-sided base material.

› Secure the material and drilling base (2 mm) onto the base plate

using the registration hole pins. (see also the section entitled

"Securing the board onto the machine bed").

› Start up

BoardMaster

and select

LMD

LPR

from the

FILE,

IMPORT

menu.

fig. 21:

› Now select the file

NULL-PKT.LMD

and import it by clicking

fig. 22:

› Click on to zoom the display and enclose the detail by

clicking and dragging with the left mouse button.
