Computer-controlled functions

18 ProtoMat 95s/II

4.3 Machine orientation

Description of the main machine positions:

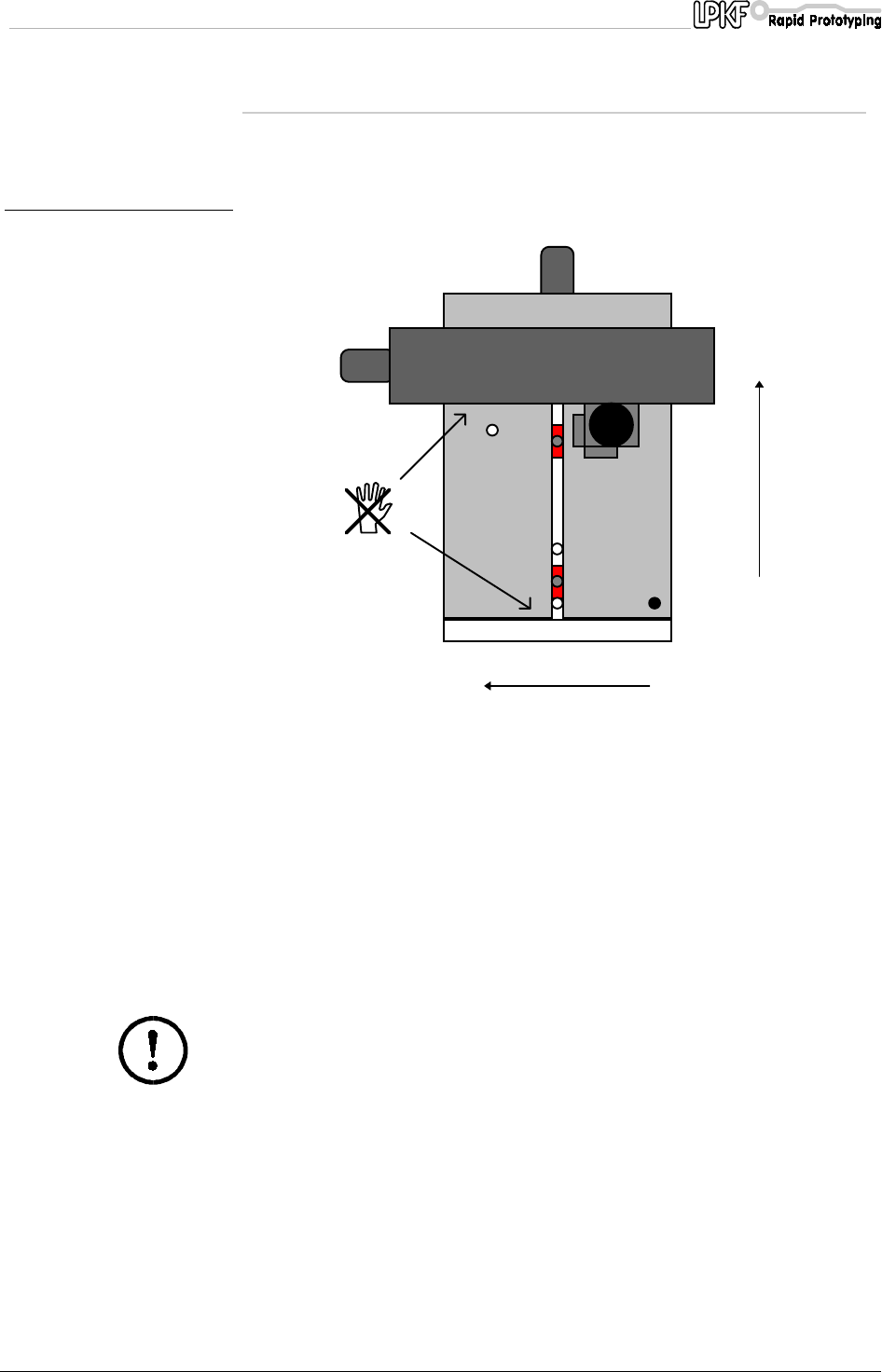

fig. 4: LPKF ProtoMat 95s/II: the x-

axis has the longer traverse

path

Caution! Do no put fingers or any items into the movement range.

- PAUSE position.

The plotter head travels to this point to load or turn the material to be machined.

- HOME position.

This is located on the machine's axis of symmetry (registration hole system) and acts as the

reference position for LPKF BoardMaster.

- Registration hole slide with hole for alignment pin.

- Reference pin for the front registration hole strip.

The front registration hole slide butts against the stop.

- Transfer station.

The tool is automatically transferred at this position.

- Auxiliary clamp (picks up/sets down the tools)

- Tool magazine (30 tool capacity)

.Tool position 1

.Tool position 30

+ x

+ y

.......................................
