Increasing Memory Capacity
Warning:
The diskette drive is a very
delicate device. Do not press on
the middle of the diskette drive.
Otherwise, the drive head could
get damaged.
12

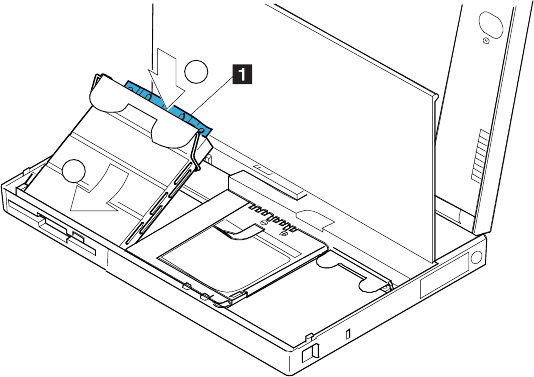

Reinstall the diskette drive. Press on the shaded area
1 as shown until the drive snaps into the connector.
2
1
13
Close the keyboard and reconnect all cables.
You have completed the installation of the IC DRAM card or DIMMs.
If you plan to use the hibernation mode, see “Creating the
Hibernation File” on page 59.
142 IBM ThinkPad 755CX User's Guide
