2-55 Using the EFI Densitometer ED-100

Sharp AR-C360P EFI Color Guide - 55

7. Click Measure in the Get Measurements pane.

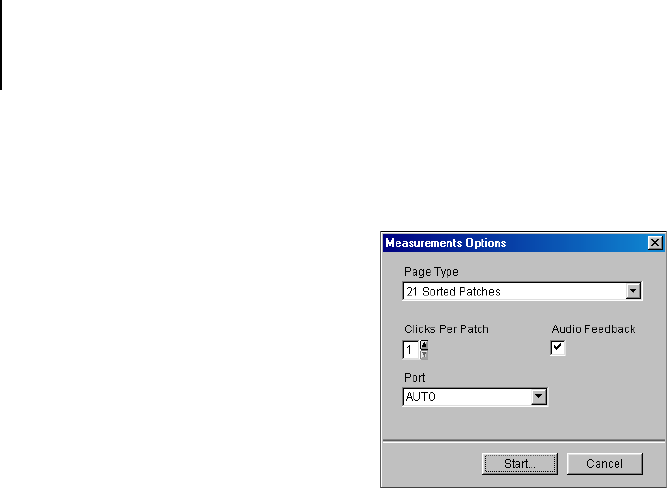

The Measurement Options dialog

box appears.

8. Choose the appropriate options, and

then click Start.

Page Type is automatically set to

the measurement page type that

you printed in step 5.

Use the arrow buttons next to the

Clicks Per Patch field to choose the

number of measurements you want

to take for each patch on the page. When you choose multiple

clicks, the average value of all measurements taken for the patch

is returned to the Fiery. Multiple measurements are more

accurate, but may take more time.

To hear a confirmation tone each time a measurement is

recorded, select the Audio Feedback option. A single tone

indicates a successful measurement; two tones indicate a

measurement error. If you have specified multiple clicks per

patch, the tone sounds after you take the final measurement.

If necessary, choose the appropriate COM port for the ED-100

from the Port menu.
