2-51 Using the EFI Spectrometer ES-1000

Sharp AR-C360P EFI Color Guide - 51

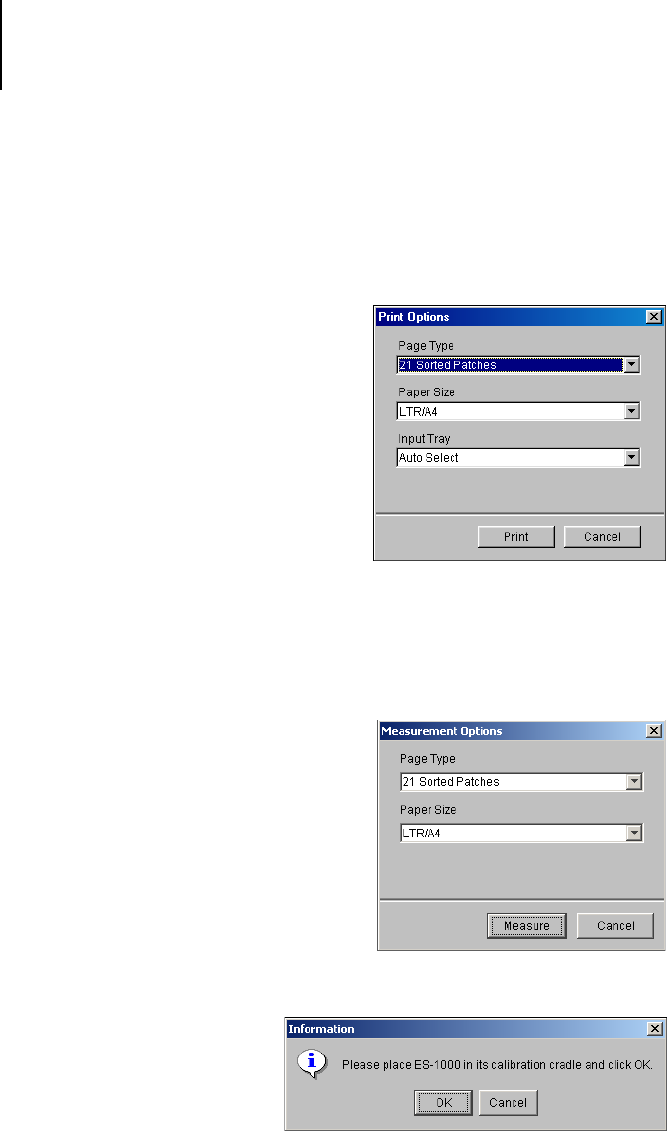

4. In the Generate Measurement Page pane, click Print.

The Print Options dialog box appears.

5. Choose the appropriate options and click Print.

For Page Type, choose either 21 or

34 Sorted Patches, or 21 or 34

Randomized Patches. Sorted

patches are printed on the page in

the order of their hue and

saturation levels. Randomized

patches are printed on the page in

random order, to help compensate

for density inconsistencies on

different areas of the page.

Page Size is automatically set to

LTR/A4 for 21 patches, or 11x17/A3 for 34 patches.

Input Tray is automatically set to Auto Select.

6. Retrieve the printed measurement page from the printer.

7. In the Get Measurements pane,

click Measure.

The Measurement Options dialog

box appears.

Page Type is automatically set to

the type that you selected in step 5.

8. Check the settings, and

click Measure.

The Information dialog box

appears.
