Sharp AR-C360P User’s Guide

Troubleshooting > 70

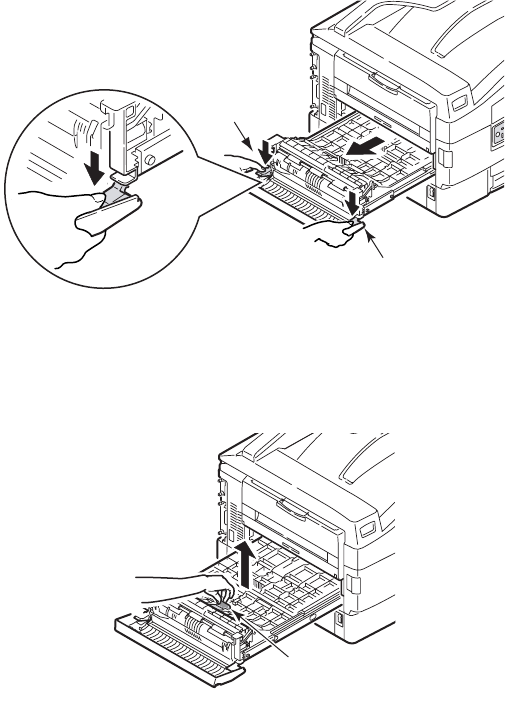

4. Operate the levers (3) and pull out the duplex unit.

5. Holding the front top cover by the grip (4), push it gently

inwards and raise it.
