Sharp AR-C360P User’s Guide

Control panel > 31

Control panel

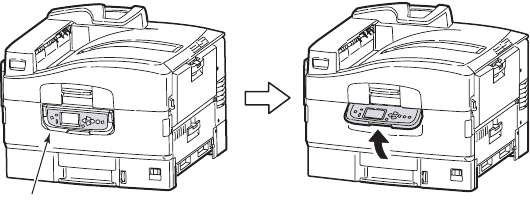

The control panel can be swivelled to 90° (maximum) upwards from

its base position (1) as required for ease of use.
