Sharp AR-C360P User’s Guide

Printer and paper overview > 29

Using the stackers

Face-down stacker

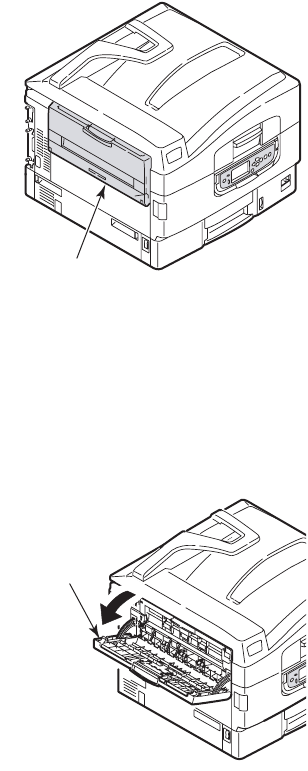

When the face-up stacker (1) on the left side of the printer is closed

(its normal position), paper is ejected to the face-down stacker on

the top of the printer.

Face-up stacker

The face-up exit path is used for heavy paper (cardstock etc.),

envelopes, transparencies, and labels.

1. Open the stacker (1).
