Remove the display assembly:

1. Position the computer right-side up with the front toward you.

2. Open the computer as far as possible.

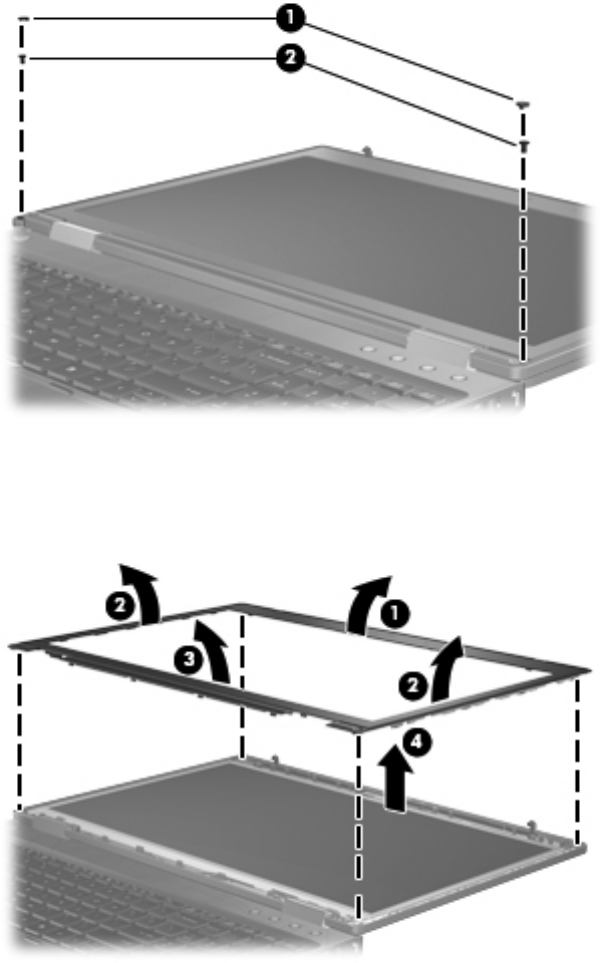

3. To replace the display bezel, remove the two rubber screw covers (1) and the two Phillips

PM2.5×5.0 screws (2) in the bottom corners of the display bezel.

4. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and then the bottom

(3) of the bezel until it disengages from the display enclosure.

5. Remove the display bezel (4).

60 Chapter 4 Removal and replacement procedures
