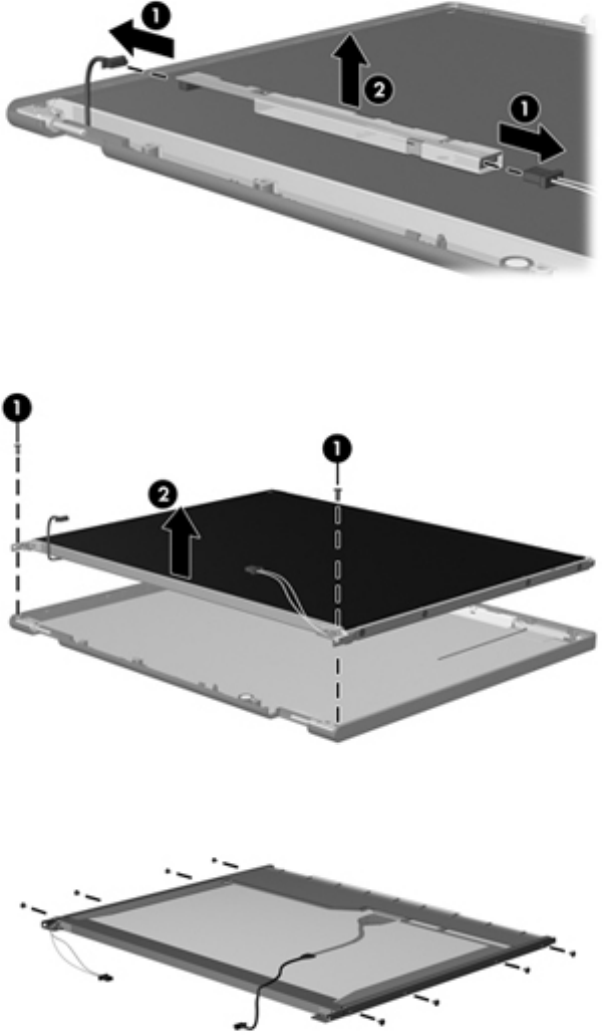

4. Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).

5. Remove all screws (1) that secure the display panel assembly to the display enclosure.

6. Remove the display panel assembly (2) from the display enclosure.

7. Position the display panel assembly upside-down.

8. Remove all screws that secure the display panel frame to the display panel.

9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the

display panel frame.

Display 145
