AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-10

4) Push up the stack delivery roller (upper) [4] from below to free the

stack deliver roller (upper) [4] from the shaft [5].

Fig.F03-102-42

5) Shift up the stack delivery roller (upper) [4], and then push it down to

detach the stack deliver roller (upper) [4].

6) Likewise, remove the stack delivery roller (upper) [6] at the front.

Fig.F03-102-43

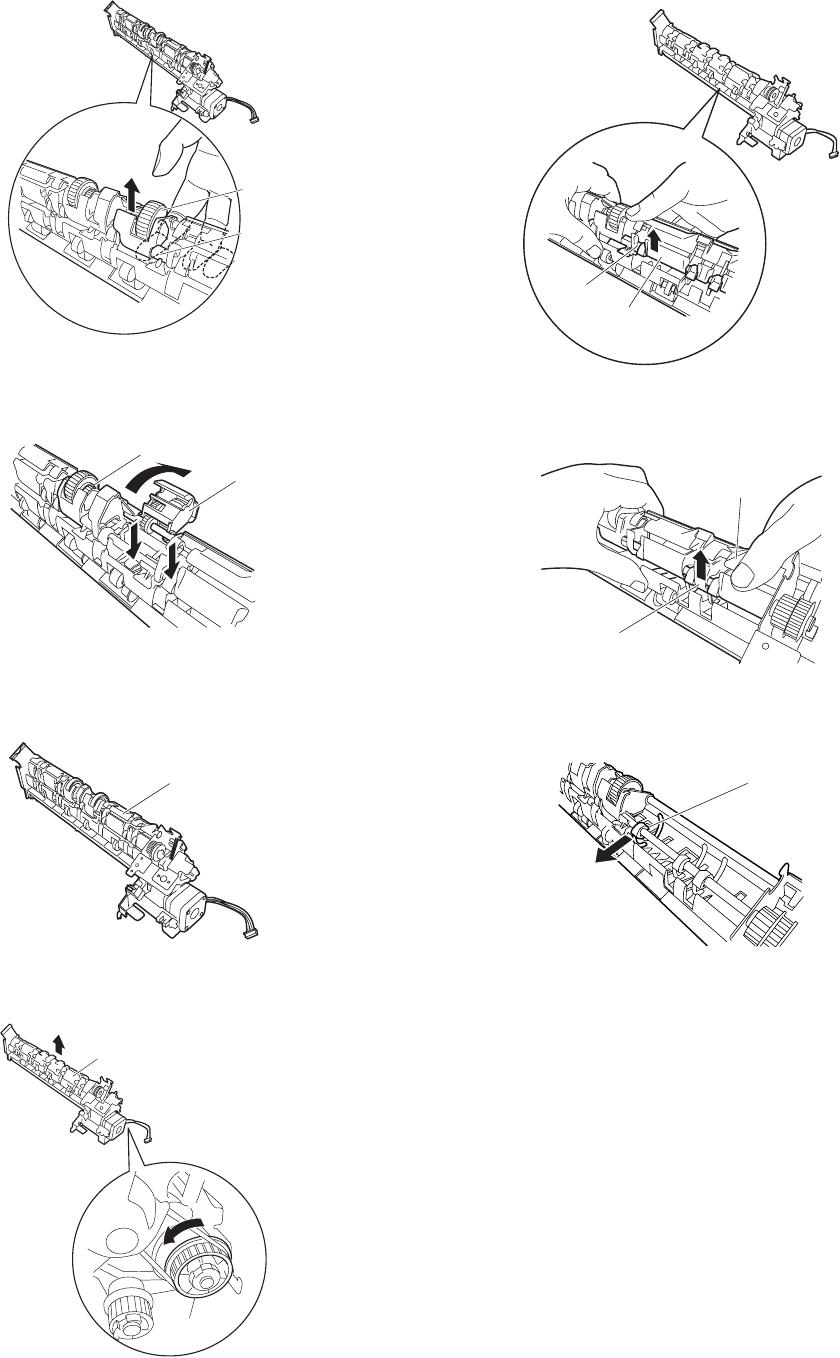

(11) Removing the Paddle

1) Remove the paddle assembly. (See 1.B.(4).)

2) Place the paddle assembly [1] as shown.

Fig.F03-102-44

3) Turn the gear [2] in the direction of the arrow to move up the stack

delivery roller assembly (upper) [3].

Fig.F03-102-45

4) Push up the safety guide [4] from below to free one side of the safety

guide [4] from the shaft [5].

Fig.F03-102-46

5) Push up the safety guide [4] from below to free the safety guide [4]

from the shaft [5].

Fig.F03-102-47

6) Remove the paddle [6] in the direction of the arrow.

7) Likewise, remove the other paddle.

Fig.F03-102-48

[4]

[5]

[4]

[6]

[1]

[3]

[2]

[4]

[5]

[4]

[5]

[1]
