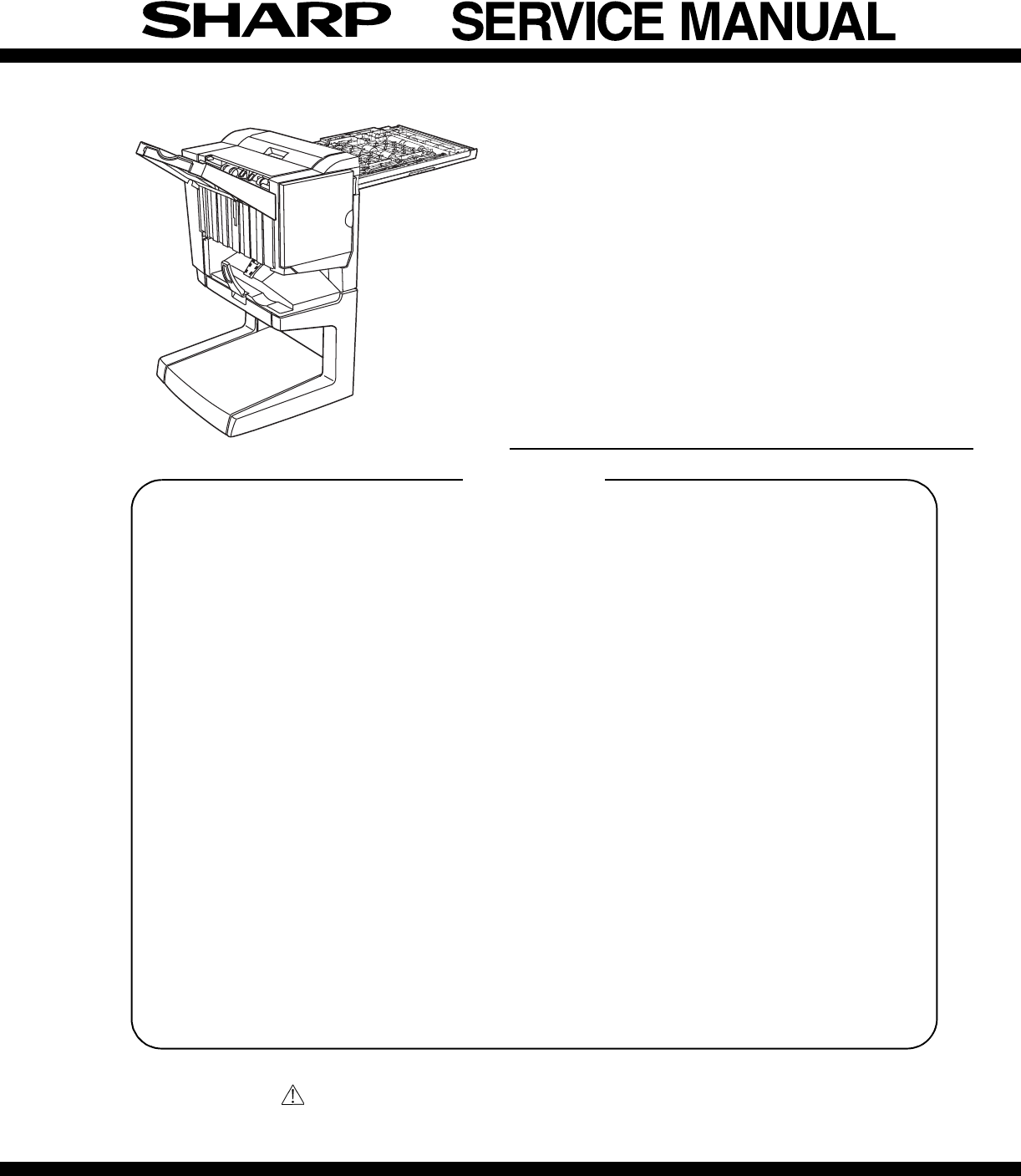

This document has been published to be used forafter sales service only.The contents are subject to change without notice.Parts marked with “ “ are im

AR-F14/PN1 UNPACKING AND INSTALLATION 3-4•If the copier is equipped with a small stand and three paper drawers,proceed to step16).•If the copier is eq

AR-F14/PN1 UNPACKING AND INSTALLATION 3-518) Install the stapler unit into the finisher.<1>Remove the packing the tape (two pieces) from the loc

AR-F14/PN1 UNPACKING AND INSTALLATION 3-6<2>If the gap between the copier and the finisher is not uniform atthe upper and lower parts, remove th

AR-F14/PN1 UNPACKING AND INSTALLATION 3-72. AR-PN1<Before installation>For installation of AR-PN1A/PN1B/PN1C/PN1D, a saddle stitch finisher(AR-F

AR-F14/PN1 UNPACKING AND INSTALLATION 3-83) Remove the top cover.<1> Remove the four top cover securing screws and remove the topcover.<2>

AR-F14/PN1 UNPACKING AND INSTALLATION 3-95) Attach the punch module.<1>Insert the two bosses of the punch unit into the boss holes of thefinishe

AR-F14/PN1 UNPACKING AND INSTALLATION 3-10<4>Reattach the jam handling dial and close the front cover.8) Paste the dust box label to the top cov

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-1[4] OPERATIONAL DESCRIPTION1. Basic OperationsA. SpecificationsThe finisher serves to deliver sheets coming from

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-2C. Inputs to and Outputs from the Finisher Controller PCB•Inputs to the Finisher Controller PCB (1/2)Fig.F02-103

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-3•Inputs to and Outputs from the Finisher Controller (1/2)Fig.F02-103-05•Inputs to and Outputs from the Finisher

CONTENTS[1] INTRODUCTION1. Product outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12. Configuration . . . . . . . . . . . .

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-42. Feed/Drive SystemA. OutlineThe machine performs the following in response to the commandscoming from its host

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-5d.Saddle DeliveryThe machine deposits a stack of sheets on the processing tray, staples it(middle 2-point), and

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-6Fig.F02-202-02Table.T02-202-02C.Job Offset(1)Outline"Job offset" refers to the operation by which the

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-7Offsetting in the backward directionFig.F02-203-04(4)Stack Delivery OperationStack delivery takes place when 10

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-8B.Stapling OperationWhen stacking and alignment of paper on the processing tray arecomplete, the finisher contro

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-9D.Stapler UnitThe staple/fold motor (FFSM) is used to perform stapling operation. Thismotor rotates the cam one

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-10d.Middle 2-point stapling (bind mode)The stapler waits at the back. The stapler moves to and returns from thes

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-115. Saddle UnitA.Basic Operations(1)OutlineThe machine stitches a stack of sheets (middle 2-point), then folds t

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-12d.Folding/deliveryThe paper pushing plate pushes in the center of the paper stack to feed ittoward the paper fo

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-13(2)Paper FoldingPaper is folded using paper fold rollers and a paper pushing plate. Almost concurrently with th

AR-F14/PN1 INTRODUCTION 1-1[1] INTRODUCTION1. Product outlineThis unit is installed to the following machines to perform the after-process of output p

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-146. Puncher Unit (option)A. Basic Operations(1)OutlineThe puncher unit is an option, and is designed for install

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-15(2)Punching OperationThe hole puncher is driven by the punch motor (FPNM). The homeposition for the hole punche

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-16(3)Horizontal Registration OperationThe horizontal registration drive for the punch slide unit is provided byth

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-17(1)Inlet Sensor Delay Jam (1011)The inlet sensor does not detect paper approximately 1.5 sec after the host mac

AR-F14/PN1 OPERATIONAL DESCRIPTION 4-188. Power Supply SystemA.Finisher/Saddle Assembly(1)OutlineWhen the host machine is turned on, it supplies the f

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-1[5] DISASSEMBLY AND ASSEMBLY1. Finisher Saddle UnitA. Externals and ControlsFig.F03-101-01(1)Removing the Deliv

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-23) Remove the screw [4], and detach the processing tray rear cover [5];then, detach the upper.Fig.F03-101-08(5)

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-3NOTE: Be sure to mount the side guide after securely fitting the papersurface detecting lever (rear) [5] in the

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-45) Remove the timing belt [13].6) Remove the E-ring [14] to remove the staple position check gear[15].Fig.F03-1

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-512) Mount the staple position check gear [27] so that the blue mark [25]on the staple position check gear is al

AR-F14/PN1 EXTERNAL VIEWS AND INTERNAL STRUCTURES 2-1[2] EXTERNAL VIEWS AND INTERNAL STRUCTURES1. External view2. Internal structureA. Finisher sectio

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-6(4)Removing the Saddle Unit1) Remove the front cover. (See 1.A.(2).)2) Remove the rear cover. (See 1.A.(3).)3)

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-77) Remove the stop ring [10], and detach the timing belt [11].8) Disconnect the connector [12], and free the ha

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-8(7)Removing the Staple/Fold Drive Unit1) Open the front door [1], and slide out the stapler unit [2] slightly t

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-9(8)Removing the Feed Motor Unit1) Remove the rear cover. (See 1.A.(3).)2) Open the harness retainer [1], and di

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-104) Push up the stack delivery roller (upper) [4] from below to free thestack deliver roller (upper) [4] from t

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-11(12)Removing the Stack delivery roller (lower)/Delivery Belt1) Remove paddle assembly, and separate it from th

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-12C. PCBs(1)Removing the Finisher Controller PCB1) Remove the rear cover. (See 1.A.(3).)2) Disconnect the 17 con

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-13D. Interface transport section (1) Decolor unita. Rear cabinet1) Remove the screw (1 pc), and remove the maint

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-14g. Decolor roller1) Remove the frame unit.2) Remove the E-ring, the gear, and the bearing. Remove the decolorr

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-15e. Interface transport motor1) Remove the connector and the screw, and remove the interfacetransport motor.f.

AR-F14/PN1 EXTERNAL VIEWS AND INTERNAL STRUCTURES 2-23. Finisher and saddle sectionA. SensorFig. F05-201-01 B. Motor and PWBFig. F05-201-02Code Name A

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-167) Remove the E-ring, and remove the interface transport drive rollerunit. Remove the bearing from the interfa

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-172. Puncher Unit (option)A.Puncher Driving System(1)Removing the Punch Motor1) Remove the two screws [1].2) Dis

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-1810)Remove the four screws [14] to remove the upper transmissionsensor unit [15] and lower transmission sensor

AR-F14/PN1 DISASSEMBLY AND ASSEMBLY 5-19(3)Removing the LED PCB1) Remove the waste case.2) Disconnect connector [1].3) Remove the harness [3] from the

AR-F14/PN1 MAINTENANCE 6-1[6] MAINTENANCE1. Maintenance System Table2. Discarding punch waste (when a punch unit is installed)1) Press the detach butt

AR-F14/PN1 MACHINE OPERATION 7-1[7] MACHINE OPERATION1. Staple sort modeCollated sets of printouts are stapled and delivered to the offset tray (upper

AR-F14/PN1 MACHINE OPERATION 7-22. Setup by the printer driverA. Setup procedures when the staple function is used1) Select "PROPERTY" in th

AR-F14/PN1 ADJUSTMENTS 8-1[8] ADJUSTMENTS1. Finisher/saddle unitA. Adjusting the Folding PositionThe folding position is adjusted by matching it with

AR-F14/PN1 ADJUSTMENTS 8-2C. Registering the Number of Punch HolePerform the following to register the type of puncher unit (number ofholes) used to t

AR-F14/PN1 TROUBLE SHOOTING 9-1[9] TROUBLE SHOOTING1. OutlineThe CPU on the machine's finisher controller PCB is equipped with amechanism to chec

AR-F14/PN1 EXTERNAL VIEWS AND INTERNAL STRUCTURES 2-34. Interface transport sectionA. SensorB. Motor5. Puncher section (AR-PN1)A. SensorFig. F05-202-0

AR-F14/PN1 TROUBLE SHOOTING 9-23. TroubleshootingA. Finisher/saddle unit(1) F1-03, Paddle Motor Fault (detail code: 01/02/03/04)(2) F1-10, Staple/fold

AR-F14/PN1 TROUBLE SHOOTING 9-3(3) F1-10, Staple/Fold Motor Fault(4) F1-10, Staple/Fold Motor Fault(5) F1-10, Staple/Fold Motor Fault(6) F1-10, Slide

AR-F14/PN1 TROUBLE SHOOTING 9-4(8) F1-15, Shift Motor Fault(9) F1-15, Shift Motor Fault(10) F1-15, Shift Motor Fault(11) F1-19, Alignment Motor (front

AR-F14/PN1 TROUBLE SHOOTING 9-5(13) F1-30, Communication error(14) F1-37, Finisher Unit Back-Up Memory Fault(15) F1-80, Finisher Unit Power Supply Fau

AR-F14/PN1 TROUBLE SHOOTING 9-6(3) F1-34, Punch Motor Fault(4) F1-35, Punch Sensor (horizontal registration) Fault(5) F1-38, Puncher Back-UP Memory Fa

AR-F14/PN1 SIMULATIONS 10-1[10] SIMULATIONS1. Finisher/Saddle unit2. Puncher unit (option)Error Condition Timing of detection Operation ResettingStapl

AR-F14/PN1 ELECTRICAL SECTION 11-1[11] ELECTRICAL SECTION1. LEDs and Check Pins by PCBOf the LEDs and check pins used in the machine, those needed dur

AR-F14/PN1 ELECTRICAL SECTION 11-22. Wiring diagram (AR-F14)CN23-3CN23-2CN23-1123DC+5VSGNDFJOG_HPCN24-3CN24-2CN24-1FJHPSAligning platehome positionsen

AR-F14/PN1 ELECTRICAL SECTION 11-3FPSFoldingpositionsensorFHPSFoldinghome positionsensorFRHPSStack feedroller (upper)home positionsensorESInletsensorF

AR-F14/PN1 UNPACKING AND INSTALLATION 3-1[3] UNPACKING AND INSTALLATION1.AR-F14<Before installation>•For installation of AR-F14, an optional sta

AR-F14/PN1 ELECTRICAL SECTION 11-43. Wiring diagram (AR-PN1)789101112123456781234567810987654321J1007J2011-1J2011-2J2011-3J2011-4J2011-5CN141312111091

AR-F14/PN1 ELECTRICAL SECTION 11-5ABCDEF1234561212J2006J2006Waste fullphotosensorPCB1212J2005J2005Waste fullLED PCB54321J1001J100154321J20045432154321

Contains lithium-ion battery. Must be disposed of properly.Remove the battery from the product and contactfederal or state environmentalagencies for i

COPYRIGHT 2004 BY SHARP CORPORATIONAll rights reserved.Printed in Japan.No part of this publication may be reproduced,stored in a retrieval system,

AR-F14/PN1 UNPACKING AND INSTALLATION 3-24) Remove the right cabinet.<1>Open the bypass tray.<2>Open the right door.<3>Remove the tw

AR-F14/PN1 UNPACKING AND INSTALLATION 3-310) Attach the docking unit.Insert docking mounting angel F and docking mounting angel R thathave been attach
