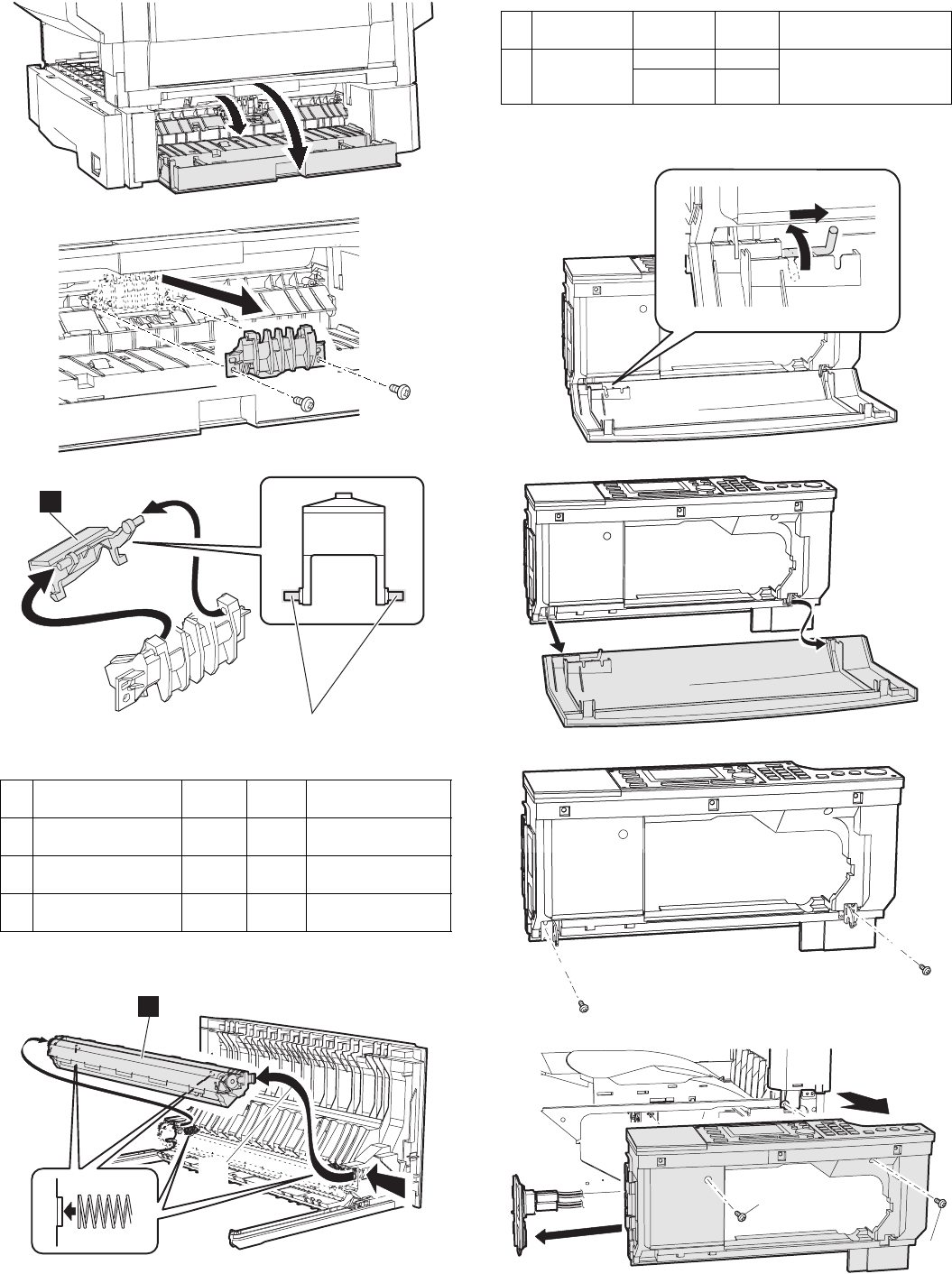

AR-5127 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 10

b. Separation sheet

∗

Slightly apply grease GP501MR (UKOG-0012QSZZ) around the

axis. One rice grain for each.

Grease should not come out when assembling.

E. Side door unit

(1) Transport roller unit

∗

Check that two springs are securely inserted into the transfer roller

unit bosses.

F. 1st paper exit unit

(1) Paper exit roller

No. Part name

Service

items

Cycle Remarks

1 Pickup roller (500

sheets tray)

Check 50k Changing criteria for

parts: 100k

2 Separation roller (500

sheets tray)

Check 50k Changing criteria for

parts: 100k

3 Separation sheet (500

sheets tray)

Check 50k Changing criteria for

parts: 100k

No. Part name

Service

items

Cycle Remarks

1 Transport

roller unit

Cleaning 50k Unit supply only

(Individual parts in the

unit can not be supplied.)

Replace

100k
