9871 Tenth Edition 2-17

Emergency Power-Off Switches

LMU Power Switch

Note: Use the LMU power switch only in an emergency.

See Figure 2-6 for the location of the power switch.

Note: Some 9330 LMUs and 9315 EMs require a tool to open the front doors.

Contact Customer Support Services if the unit needs to be opened.

See the instructions at “Emergency Powering off” on page 3-3.

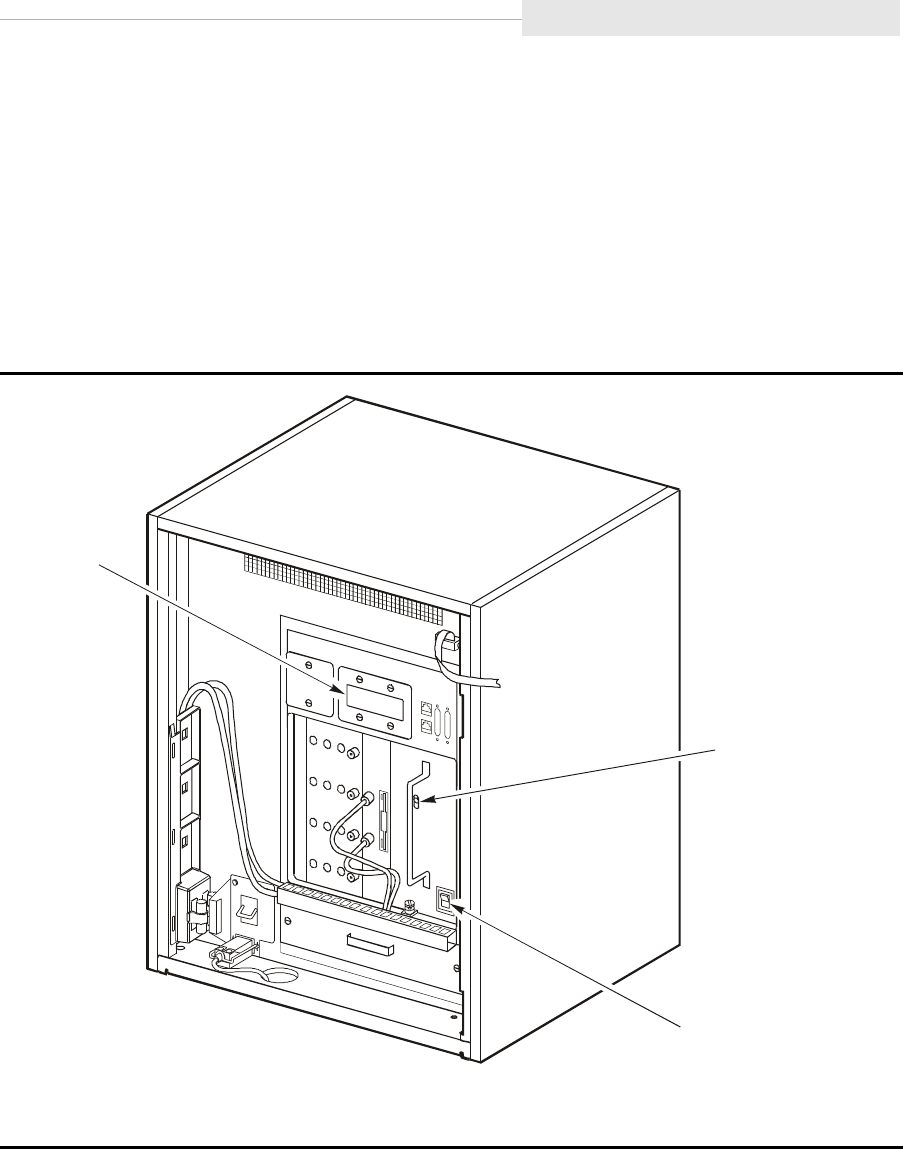

Figure 2-6. 9330 LMU Power Switch

0667

LMU

SERVICE

PANEL

POWER

SWITCH

(CB3)

POWER

INDICATOR

LIGHT

STAND-ALONE

LMU
