9871 Tenth Edition 1-5

9360 Library Storage Module

Robot

The robot moves cartridges between the storage cells and the drives. The robot

consists of a theta assembly, Z mechanism, and hand assembly. Figure 1-3

shows these components.

Theta Assembly

The theta assembly consists of a vertical shaft that moves the hand assembly in

a circle. The theta assembly is supported at the center of rotation on a stationary

vertical pedestal, which is secured to the floor of the LSM.

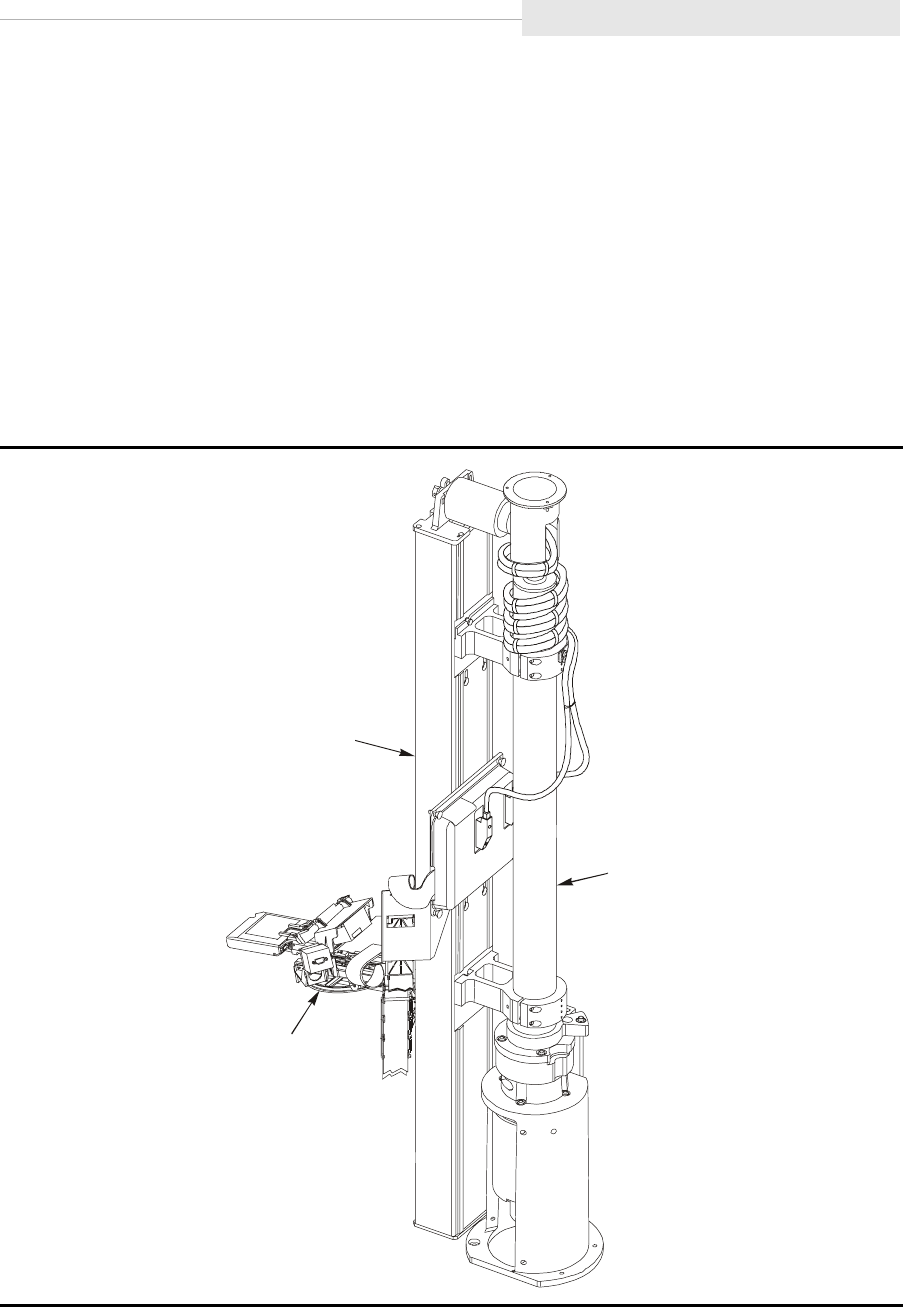

Figure 1-3. 9360 LSM Robotic Components

C4024

THETA

ASSEMBLY

HAND

ASSEMBLY

Z MECHANISM
