Installation TDB3108, WF3208

Bradley • 215-1187 Rev. P; ECN 13-00-001 4/30/2013 23

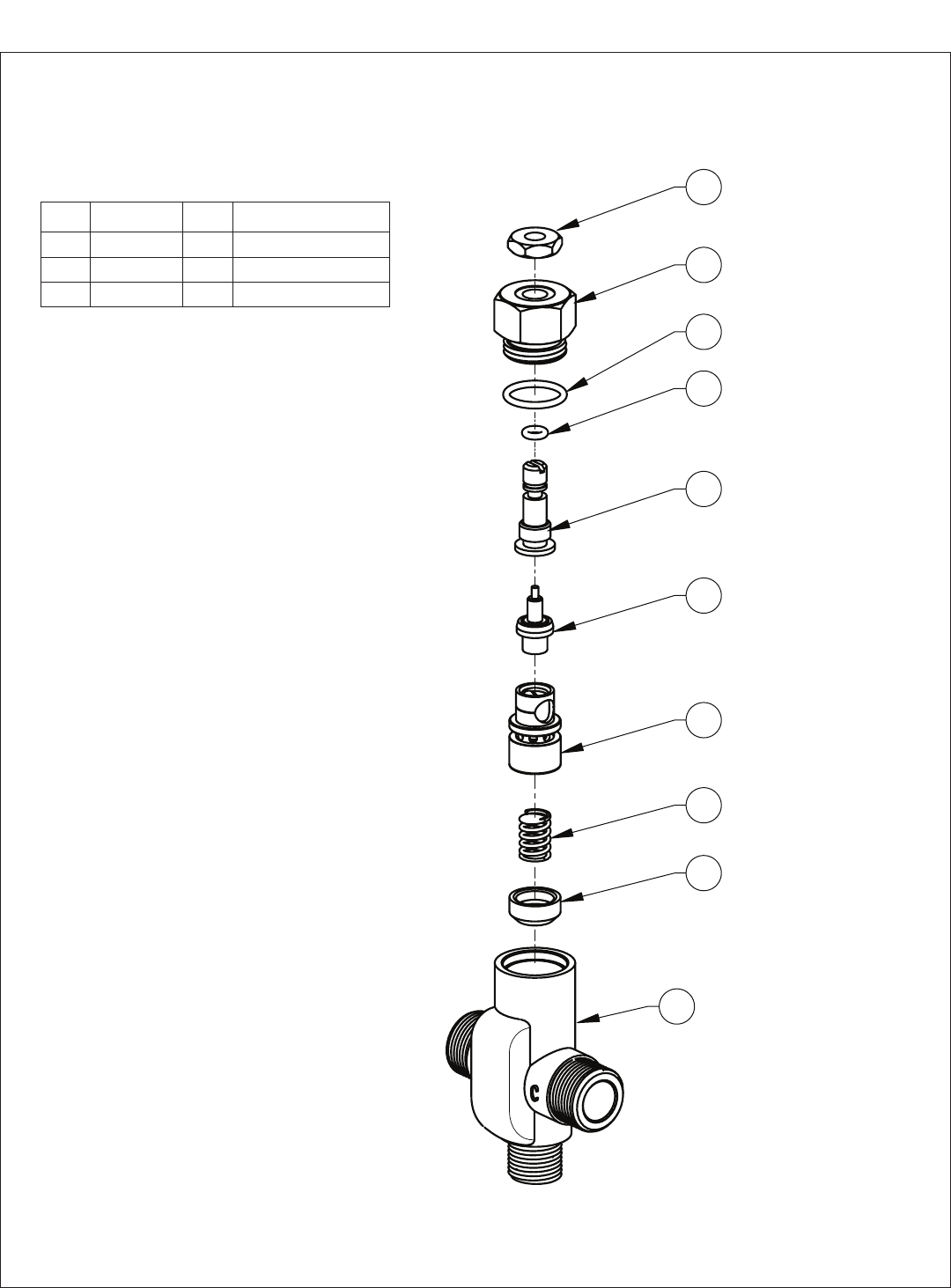

Vernatherm Thermostatic Mixing Valve (S01-525)

Item Part No. Qty. Description

5 S39-413

1

Thermostat

7 125-001BX

1

O-Ring

8 125-157

1

O-Ring

9

6

5

4

3

2

7

8

10

1

Nut 3/8-24 Hex Jam

Cap

O-Ring

O-Ring

Stem

Thermostat

Piston

Spring

Seal Cup

Valve Body

Parts List – S65-259 Valve Repair Kit
